Inbound federation Lambda trigger

The inbound federation trigger transforms federated user attributes during the authentication process with external identity providers. When users authenticate through configured identity providers, this trigger allows you to modify responses from external SAML and OIDC providers by intercepting and transforming data in the authentication process, providing programmatic control over how Amazon Cognito user pools handle federated users and their attributes.

Use this trigger to add, override, or suppress attributes before creating new users or updating existing federated user profiles. This trigger receives raw identity provider attributes as input and returns modified attributes that Amazon Cognito applies to the user profile.

Flow overview

When a user authenticates with an external identity provider, Amazon Cognito invokes the inbound federation trigger before creating or updating the user profile. The trigger receives the raw attributes from the identity provider and can transform them before Amazon Cognito stores them. This flow occurs for both new federated users and existing users who sign in again through federation.

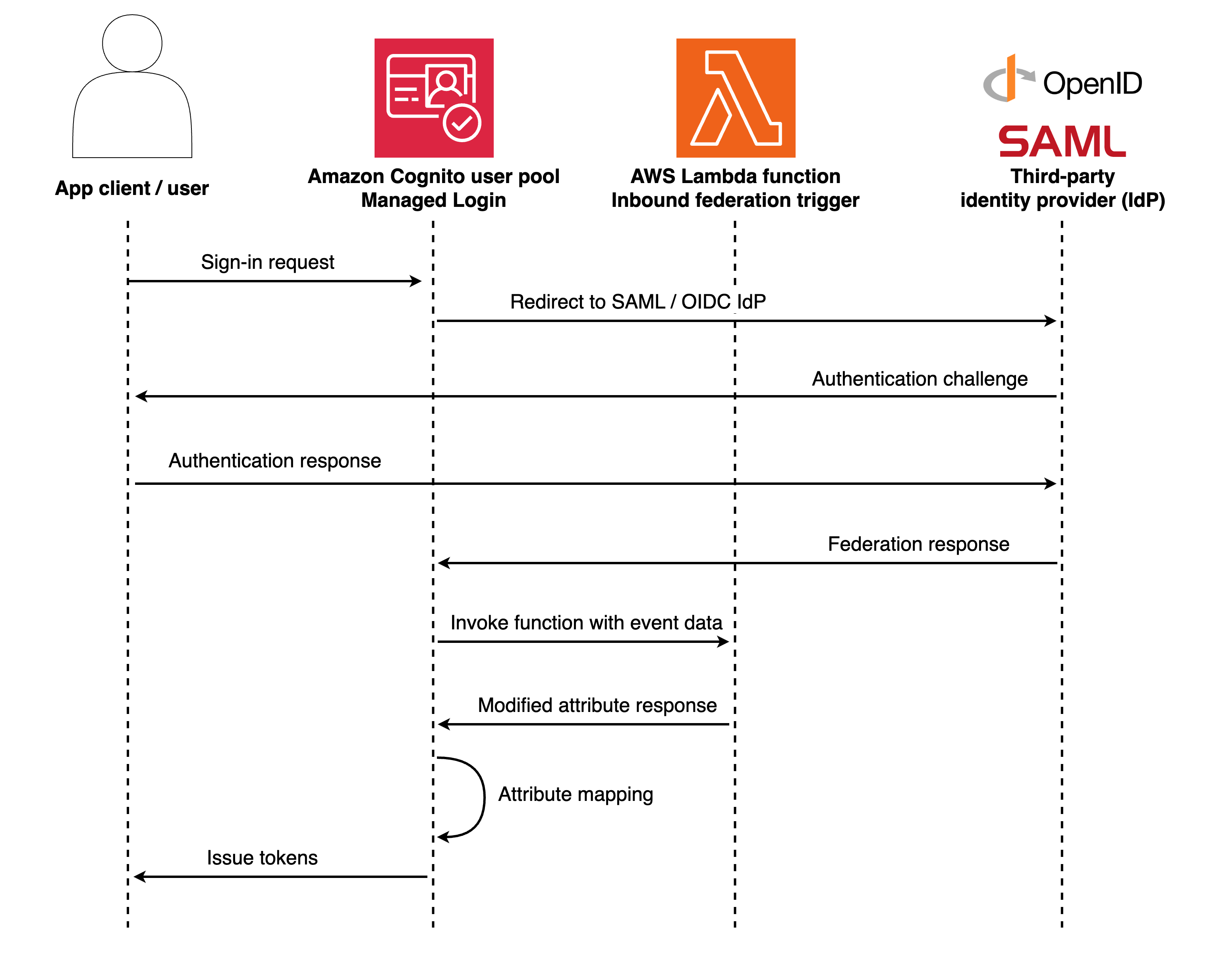

Inbound federation Lambda trigger flow

Inbound federation Lambda trigger parameters

The request that Amazon Cognito passes to this Lambda function is a combination of the parameters below and the common parameters that Amazon Cognito adds to all requests.

JSON
{
    "version": "string",
    "triggerSource": "InboundFederation_ExternalProvider",
    "region": AWSRegion,
    "userPoolId": "string",
    "userName": "string",
    "callerContext": {
        "awsSdkVersion": "string",
        "clientId": "string"
    },
    "request": {
        "providerName": "string",
        "providerType": "string",
        "attributes": {
            "tokenResponse": {
                "access_token": "string",
                "token_type": "string",
                "expires_in": "string"
            },
            "idToken": {
                "sub": "string",
                "email": "string",
                "email_verified": "string"
            },
            "userInfo": {
                "email": "string",
                "given_name": "string",
                "family_name": "string"
            },
            "samlResponse": {
                "string": "string"
            }
        }
    },
    "response": {
        "userAttributesToMap": {
            "string": "string"
        }
    }
}

Inbound federation request parameters

providerName

The name of the external identity provider.

providerType

The type of the external identity provider. Valid values: OIDC, SAML, Facebook, Google, SignInWithApple, LoginWithAmazon.

attributes

The raw attributes received from the identity provider before processing. The structure varies based on provider type.

attributes.tokenResponse

OAuth token response data from the /token endpoint. Available for OIDC and social providers only. Contains access_token, id_token, refresh_token, token_type, expires_in, and scope.

attributes.idToken

Decoded and validated ID token JWT claims. Available for OIDC and social providers only. Contains verified user identity information including sub (unique user identifier), email, name, iss (issuer), aud (audience), exp (expiration), and iat (issued time).

attributes.userInfo

Extended user profile information from the UserInfo endpoint. Available for OIDC and social providers only. Contains detailed profile attributes such as given_name, family_name, picture, address, and other provider-specific fields. May be empty if the IdP doesn't support the UserInfo endpoint or if the endpoint call fails.

attributes.samlResponse

SAML assertion attributes. Available for SAML providers only. Contains attributes from the SAML response.

Inbound federation response parameters

userAttributesToMap

The user attributes to apply to the user profile.

Important

You must include ALL user attributes you want to retain in the response, including attributes you are not modifying. Any attributes not included in the userAttributesToMap response will be dropped and not stored in the user profile. This applies to both modified and unmodified attributes.

Empty response behavior

If you return an empty object {} for userAttributesToMap, all original attributes from the identity provider are retained unchanged. This acts as a no-op, as if the Lambda function was never executed. This is different from omitting attributes, which drops them.

Provider-specific attributes

The structure of request.attributes varies based on the providerType. OIDC and social providers include tokenResponse, idToken, and userInfo objects. SAML providers include only the samlResponse object.

Inbound federation example: Group membership management

This example shows how to map federated identity provider groups to Amazon Cognito user pools groups. This function extracts group membership from the federated response and automatically adds users to corresponding Amazon Cognito groups, eliminating the need for post-authentication triggers.

Node.js
exports.handler = async (event) => {
    const { providerType, attributes } = event.request;

    // Extract user attributes based on provider type
    let userAttributesFromIdp = {};
    if (providerType === 'SAML') {
        userAttributesFromIdp = attributes.samlResponse || {};
    } else {
        // For OIDC and Social providers, merge userInfo and idToken
        userAttributesFromIdp = {
            ...(attributes.userInfo || {}),
            ...(attributes.idToken || {})
        };
    }

    // Extract groups from federated response
    const federatedGroups = userAttributesFromIdp.groups?.split(',') || [];

    // Map federated groups to Cognito groups
    const groupMapping = {
        'Domain Admins': 'Administrators',
        'Engineering': 'Developers',
        'Sales': 'SalesTeam'
    };

    // Filter to only in-scope groups
    const mappedGroups = federatedGroups
        .map(group => groupMapping[group.trim()])
        .filter(group => group); // Remove undefined values

    // Pass through attributes with mapped groups as custom attribute
    const attributesToMap = {
        ...userAttributesFromIdp,
        'custom:user_groups': mappedGroups.join(',')
    };

    // Remove original groups attribute
    delete attributesToMap.groups;

    event.response.userAttributesToMap = attributesToMap;
    return event;
};

Amazon Cognito passes event information to your Lambda function. The function then returns the same event object to Amazon Cognito, with any changes in the response. In the Lambda console, you can set up a test event with data that is relevant to your Lambda trigger. The following is a test event for this code sample:

JSON
{
    "userPoolId": "us-east-1_XXXXXXXXX",
    "request": {
        "providerName": "CorporateAD",
        "providerType": "SAML",
        "attributes": {
            "samlResponse": {
                "email": "jane.smith@company.com",
                "given_name": "Jane",
                "family_name": "Smith",
                "groups": "Engineering,Domain Admins",
                "department": "Engineering"
            }
        }
    },
    "response": {
        "userAttributesToMap": {}
    }
}

Inbound federation example: Truncate large attributes

This example shows how to truncate attribute values that exceed Amazon Cognito's storage limits. This function checks each attribute from the identity provider. If an attribute value exceeds 2048 characters, it truncates the value and adds ellipsis to indicate truncation. All other attributes pass through unchanged.

Node.js
exports.handler = async (event) => {
    const MAX_ATTRIBUTE_LENGTH = 2048;

    // Get the identity provider attributes based on provider type
    const { providerType, attributes } = event.request;
    let idpAttributes = {};

    if (providerType === 'SAML') {
        idpAttributes = attributes.samlResponse || {};
    } else {
        // For OIDC and Social providers, merge userInfo and idToken
        idpAttributes = {
            ...(attributes.userInfo || {}),
            ...(attributes.idToken || {})
        };
    }

    const userAttributes = {};

    // Process each attribute
    for (const [key, value] of Object.entries(idpAttributes)) {
        if (typeof value === 'string' && value.length > MAX_ATTRIBUTE_LENGTH) {
            // Truncate the value and add ellipsis
            userAttributes[key] = value.substring(0, MAX_ATTRIBUTE_LENGTH - 3) + '...';
            console.log(`Truncated attribute ${key} from ${value.length} to ${userAttributes[key].length} characters`);
        } else {
            // Keep the original value
            userAttributes[key] = value;
        }
    }

    // Return the modified attributes
    event.response.userAttributesToMap = userAttributes;
    return event;
};

Amazon Cognito passes event information to your Lambda function. The function then returns the same event object to Amazon Cognito, with any changes in the response. In the Lambda console, you can set up a test event with data that is relevant to your Lambda trigger. The following is a test event for this code sample:

JSON
{
    "version": "string",
    "triggerSource": "InboundFederation_ExternalProvider",
    "region": "us-east-1",
    "userPoolId": "us-east-1_XXXXXXXXX",
    "userName": "ExampleProvider_12345",
    "callerContext": {
        "awsSdkVersion": "string",
        "clientId": "string"
    },
    "request": {
        "providerName": "ExampleProvider",
        "providerType": "OIDC",
        "attributes": {
            "tokenResponse": {
                "access_token": "abcDE...",
                "token_type": "Bearer",
                "expires_in": "3600"
            },
            "idToken": {
                "sub": "12345",
                "email": "user@example.com"
            },
            "userInfo": {
                "email": "user@example.com",
                "given_name": "Example",
                "family_name": "User",
                "bio": "This is a very long biography that contains more than 2048 characters..."
            }
        }
    },
    "response": {
        "userAttributesToMap": {}
    }
}

Inbound federation example: Logging federation events

This example shows how to log federated authentication events for monitoring and debugging. This example function captures detailed information about federated users and their attributes, providing visibility into the authentication process.

Node.js
exports.handler = async (event) => {
    const { providerName, providerType, attributes } = event.request;

    // Extract user attributes based on provider type
    let userAttributesFromIdp = {};
    if (providerType === 'SAML') {
        userAttributesFromIdp = attributes.samlResponse || {};
    } else {
        // For OIDC and Social providers, merge userInfo and idToken
        userAttributesFromIdp = {
            ...(attributes.userInfo || {}),
            ...(attributes.idToken || {})
        };
    }

    // Log federated authentication details
    console.log(JSON.stringify({
        timestamp: new Date().toISOString(),
        providerName,
        providerType,
        userEmail: userAttributesFromIdp.email,
        attributeCount: Object.keys(userAttributesFromIdp).length,
        attributes: userAttributesFromIdp
    }));

    // Pass through all attributes unchanged
    event.response.userAttributesToMap = userAttributesFromIdp;
    return event;
};

Amazon Cognito passes event information to your Lambda function. The function then returns the same event object to Amazon Cognito, with any changes in the response. In the Lambda console, you can set up a test event with data that is relevant to your Lambda trigger. The following is a test event for this code sample:

JSON
{
    "version": "string",
    "triggerSource": "InboundFederation_ExternalProvider",
    "region": "us-east-1",
    "userPoolId": "us-east-1_XXXXXXXXX",
    "userName": "CorporateAD_john.doe",
    "callerContext": {
        "awsSdkVersion": "string",
        "clientId": "string"
    },
    "request": {
        "providerName": "CorporateAD",
        "providerType": "SAML",
        "attributes": {
            "samlResponse": {
                "email": "john.doe@company.com",
                "given_name": "John",
                "family_name": "Doe",
                "department": "Engineering",
                "employee_id": "EMP12345"
            }
        }
    },
    "response": {
        "userAttributesToMap": {}
    }
}

Expected CloudWatch Logs output:

JSON
{
    "timestamp": "2025-01-14T21:17:40.153Z",
    "providerName": "CorporateAD",
    "providerType": "SAML",
    "userEmail": "john.doe@company.com",
    "attributeCount": 5,
    "attributes": {
        "email": "john.doe@company.com",
        "given_name": "John",
        "family_name": "Doe",
        "department": "Engineering",
        "employee_id": "EMP12345"
    }
}
