Viewing the CloudWatch RUM dashboard
CloudWatch RUM helps you collect data from user sessions about your application's performance, including load times, Apdex score, device information, geolocation of user sessions, and sessions with errors. All of this information is displayed in a dashboard.
To view the RUM dashboard:
Open the CloudWatch console at https://console.amazonaws.cn/cloudwatch/
. -
In the navigation pane, choose Application Signals, RUM.

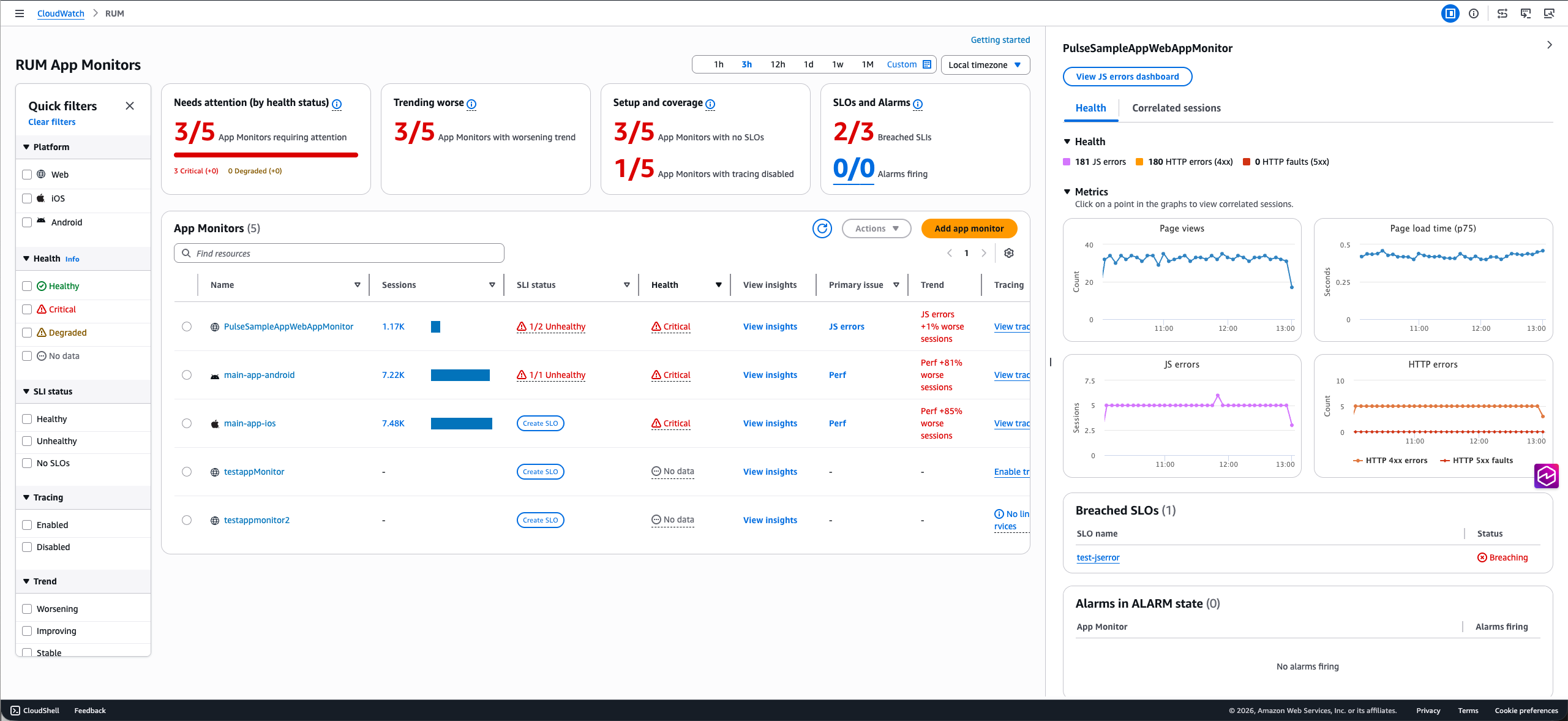

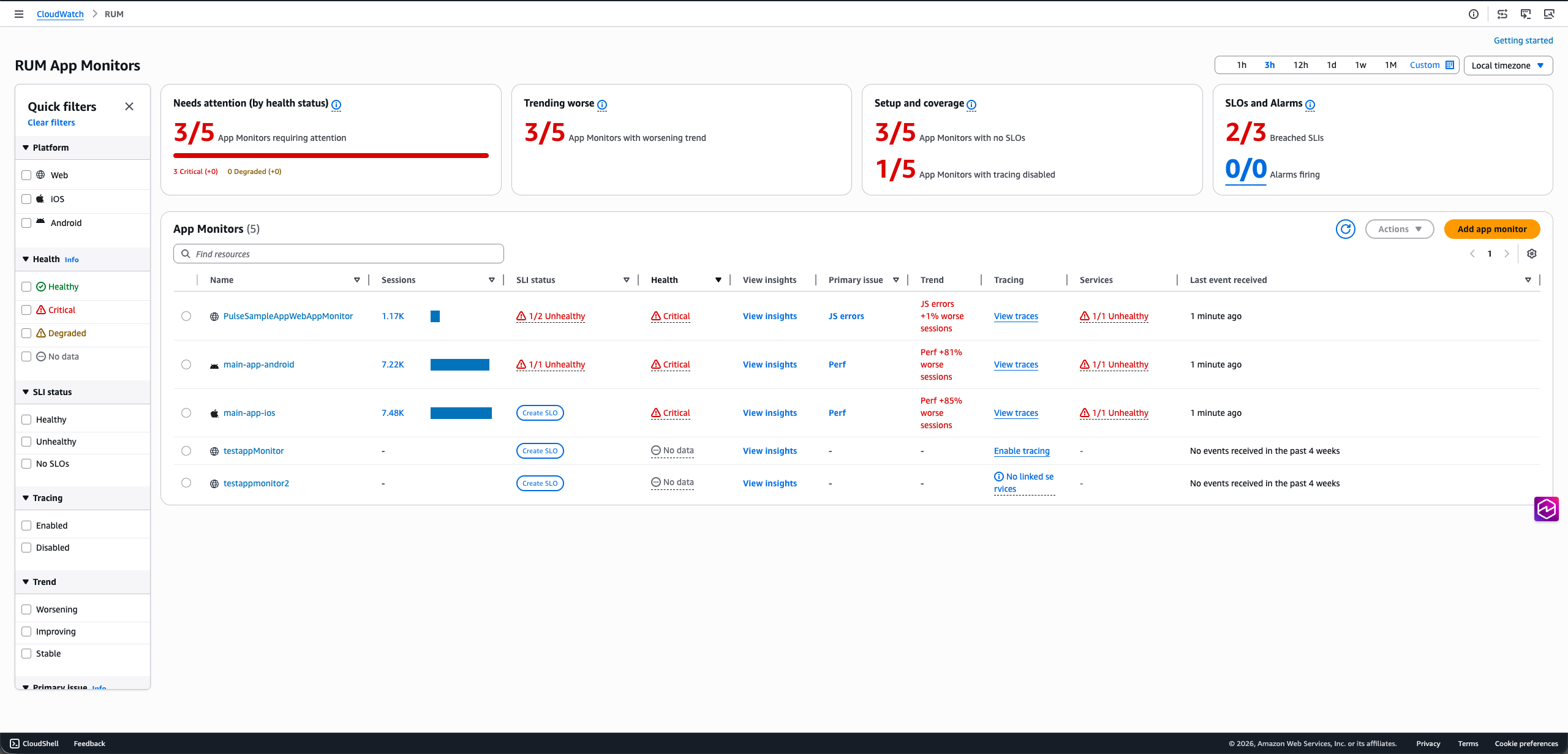

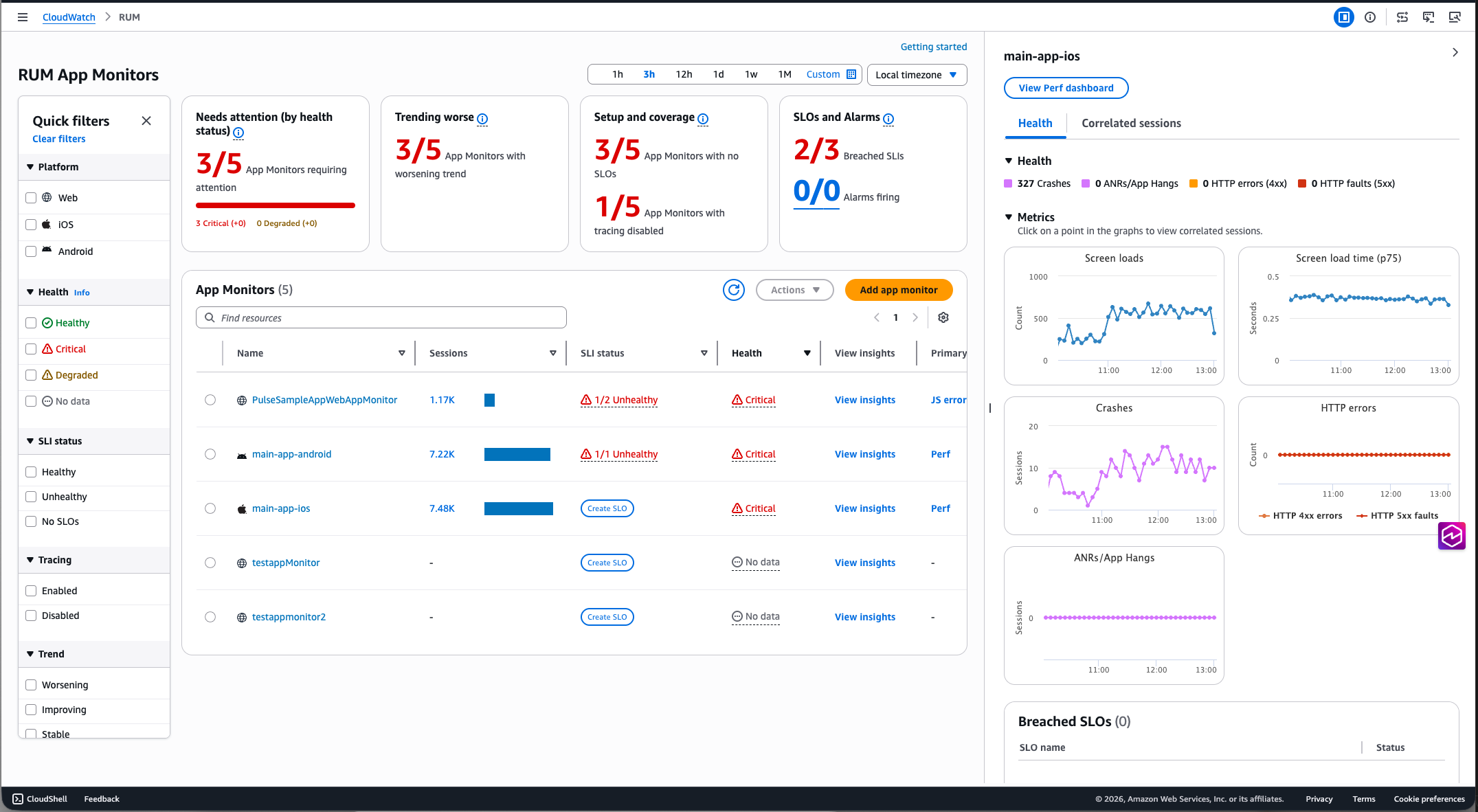

The RUM console displays a list view of all your app monitors. The Platform column indicates whether each app monitor is for Web, Android, or iOS applications. Select an app monitor to access detailed views with Performance, Errors, Sessions, Metrics and Configuration tabs.
Web Application Dashboard
When you select a web application monitor, you'll see the following tabs:
-

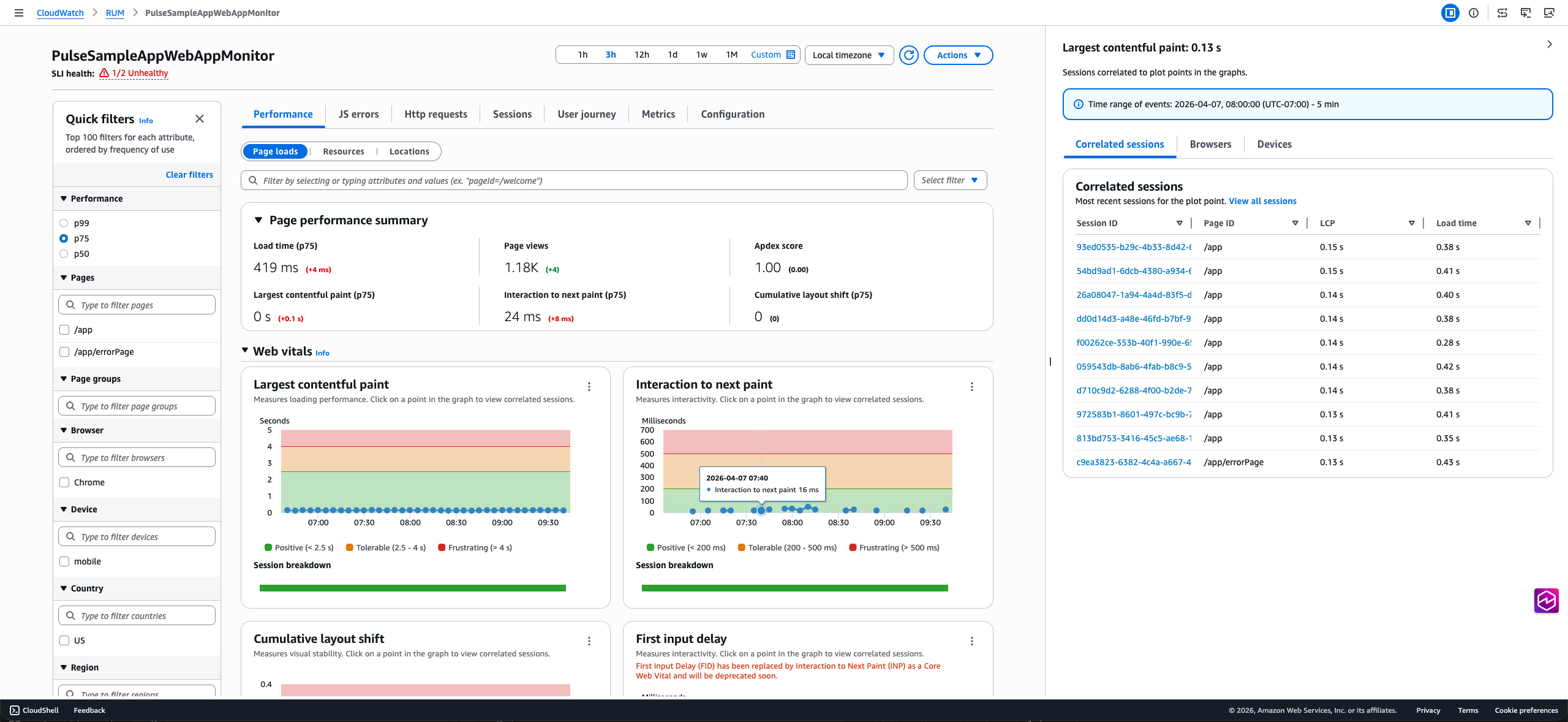

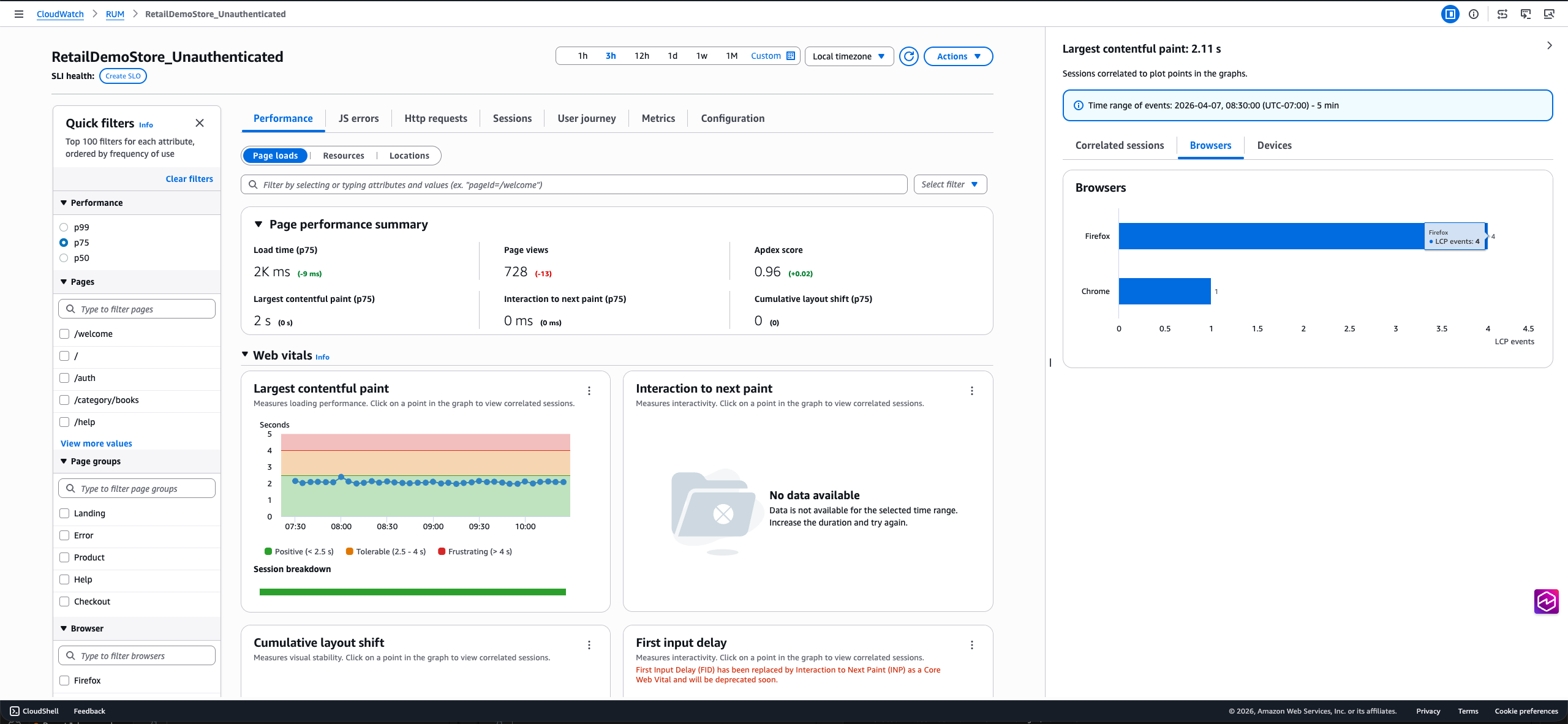

The Performance tab displays page performance information including load times, request information, web vitals, and page loads over time. This view features interactive web vitals graphs where you can see the different percentile values of core web vitals for your pages and choose datapoints on the graph to view associated events captured by CloudWatch RUM. From there, you can either explore more events related to the metric spike or view page details for a selected event to identify specific conditions causing performance issues.

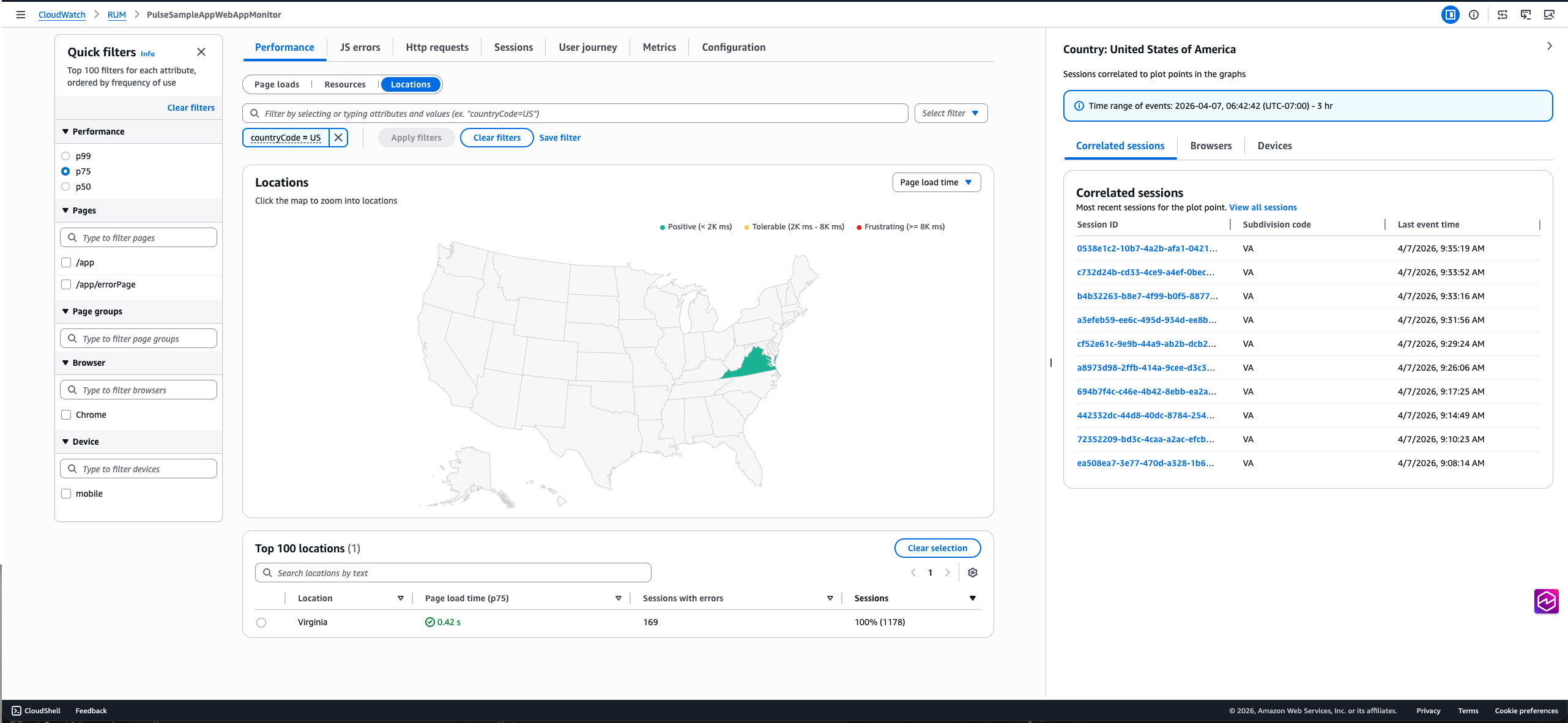

On this tab you can also toggle the view between Page loads, Requests, and Location to see more details about page performance.
-

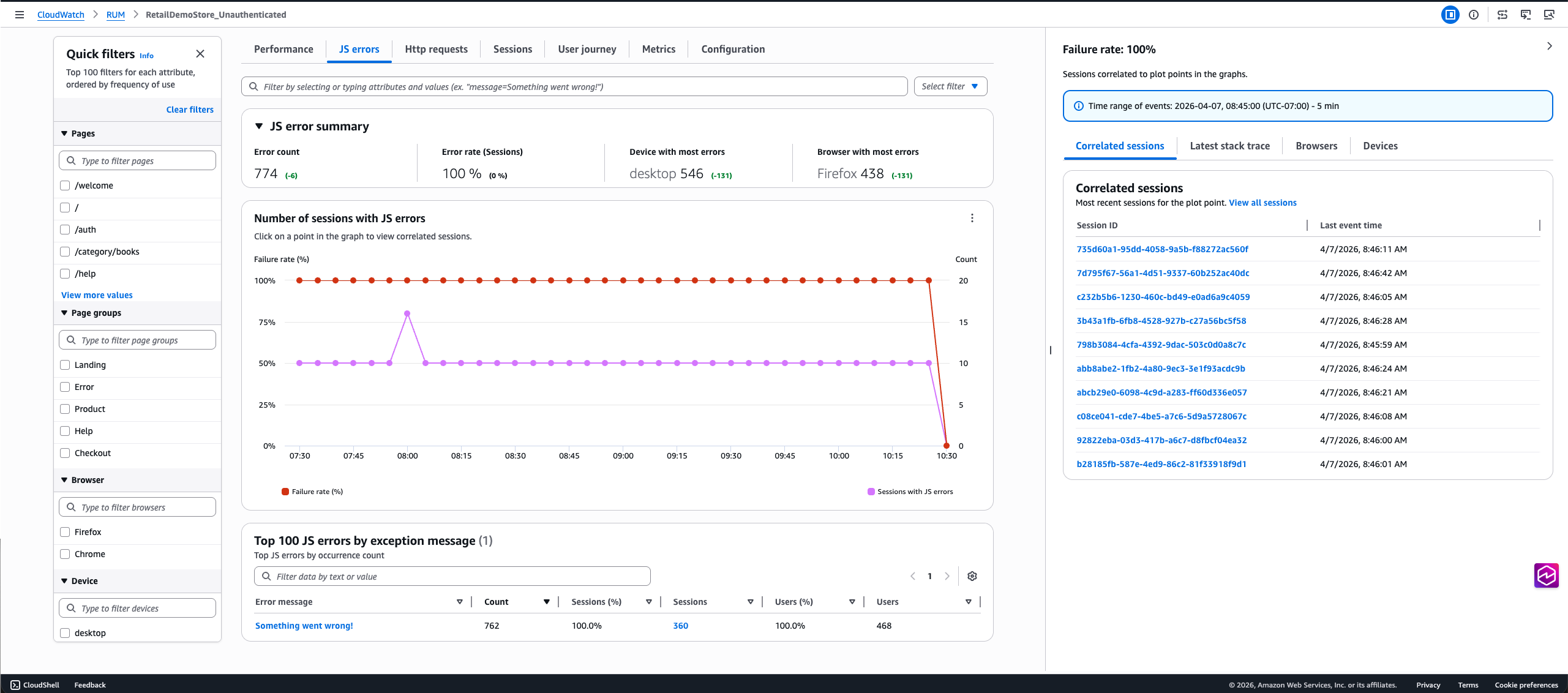

The Errors tab displays Javascript error information including the error message most frequently seen by users and the devices and browsers with the most errors. This view includes a histogram of the errors and a list view of errors. You can filter the list of errors by user and event details. Choose an error message to see more details.
-

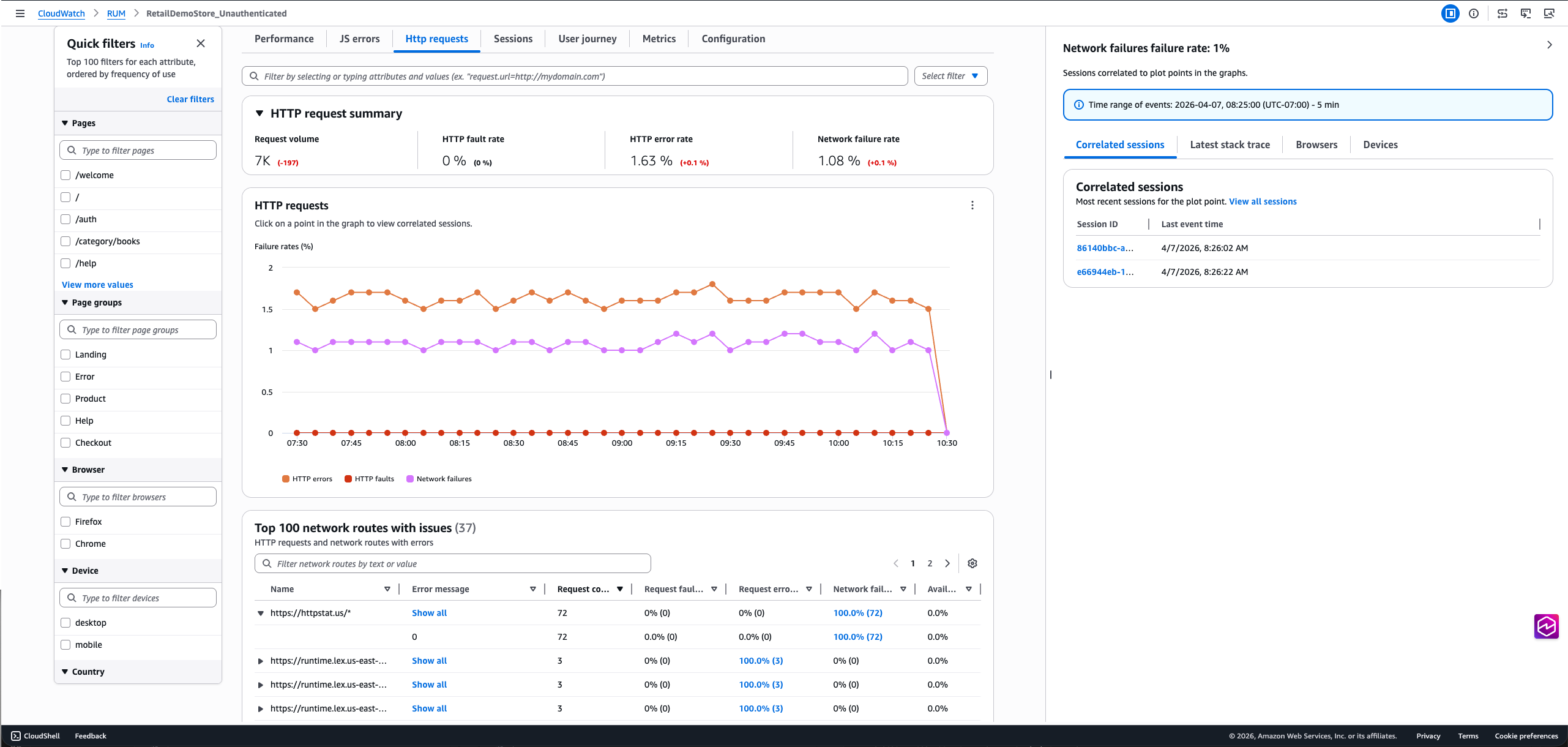

The HTTP requests tab displays HTTP request information including the request URL with most errors and the devices and browsers with the most errors. This tab includes a histogram of the requests, a list view of requests, and a list view of network errors. You can filter the lists by user and event details. Choose a response code or an error message to see more details about the request or network error, respectively.
-
The Sessions tab displays session metrics. This tab includes a histogram of session start events and a list view of sessions. You can filter the list of sessions by event type, user details, and event details. Choose a sessionId to see more details about a session.
-
The Events tab displays a histogram of RUM events and a list view of the events. You can filter the list of events by event type, user details, and event details. Choose a RUM event to see the raw event.
-
The Browsers & Devices tab displays information such as the performance and usage of different browsers and devices to access your application. This view includes controls to toggle the view between focusing on Browsers and Devices.
If you narrow the scope to a single browser, you see the data broken down by browser version.
-

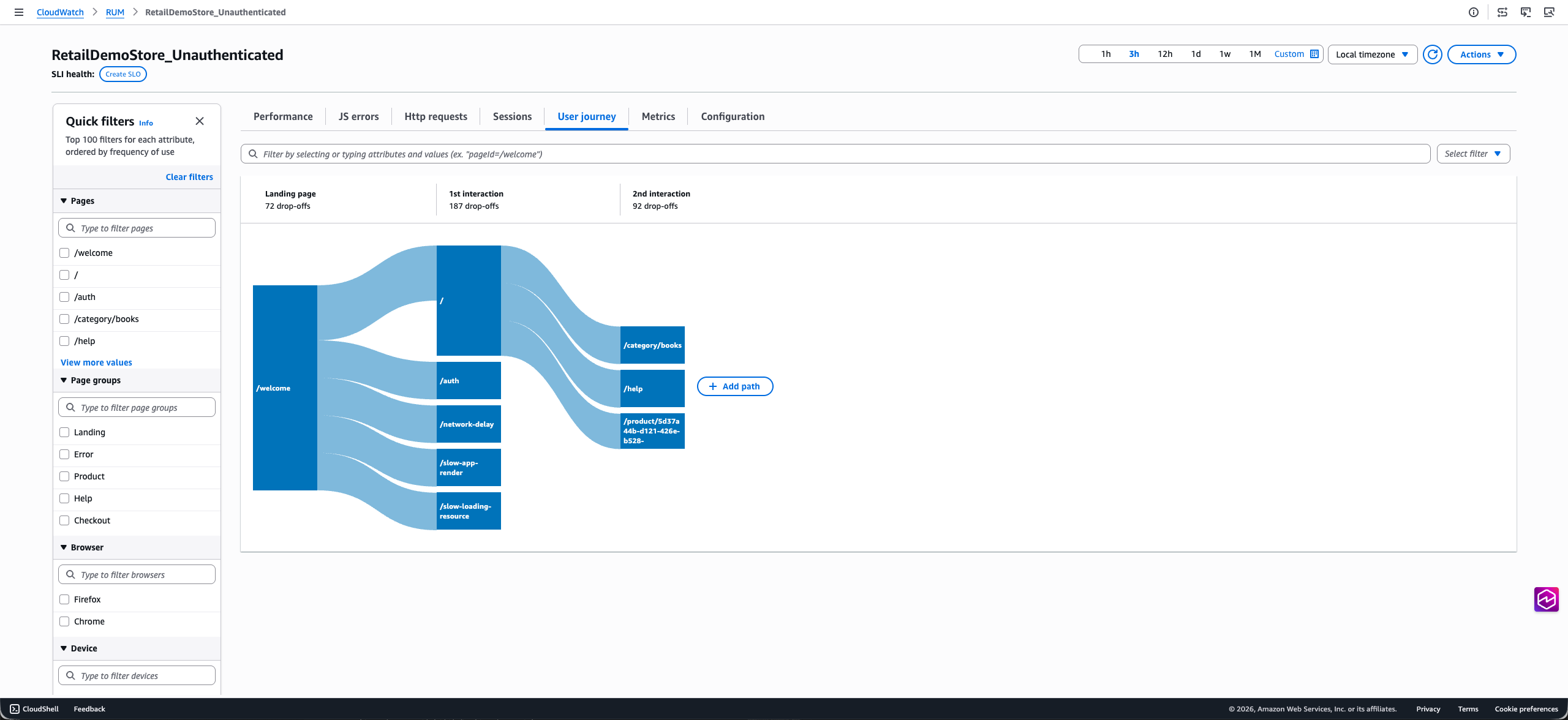

The User Journey tab displays the paths that your customers use to navigate your application. You can see where your customers enter your application and what page they exit your application from. You can also see the paths that they take and the percentage of customers that follow those paths. You can pause on a node to get more details about that page. You can choose a single path to highlight the connections for easier viewing.
-

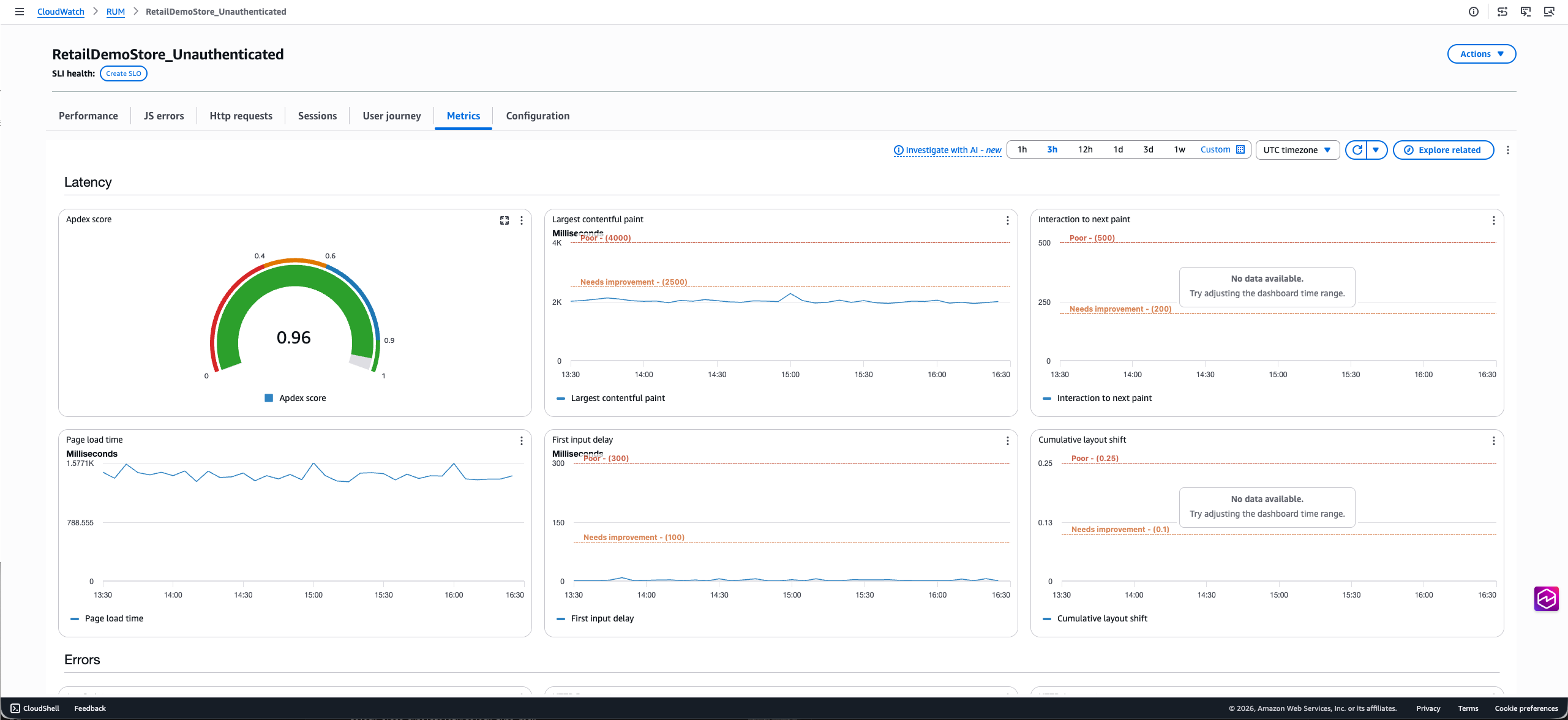

The Metrics tab displays all default CloudWatch metrics published by your app monitor, including performance web vitals, error metrics (JavaScript errors, HTTP errors/faults), volume, user flow and apdex metrics. If you created extended metrics for your application, the tab also includes a subset of these metrics in the extended metrics section. This subset includes metrics of type PageViewCount, PerformanceNavigationDuration, Http4xxCount, Http5xxCount and JsErrorCount. The dashboard shows three metric variations per metric type. Since these are CloudWatch metrics, you can also export this tab to your own dashboard using the Add to dashboard option and update it to include more metrics.

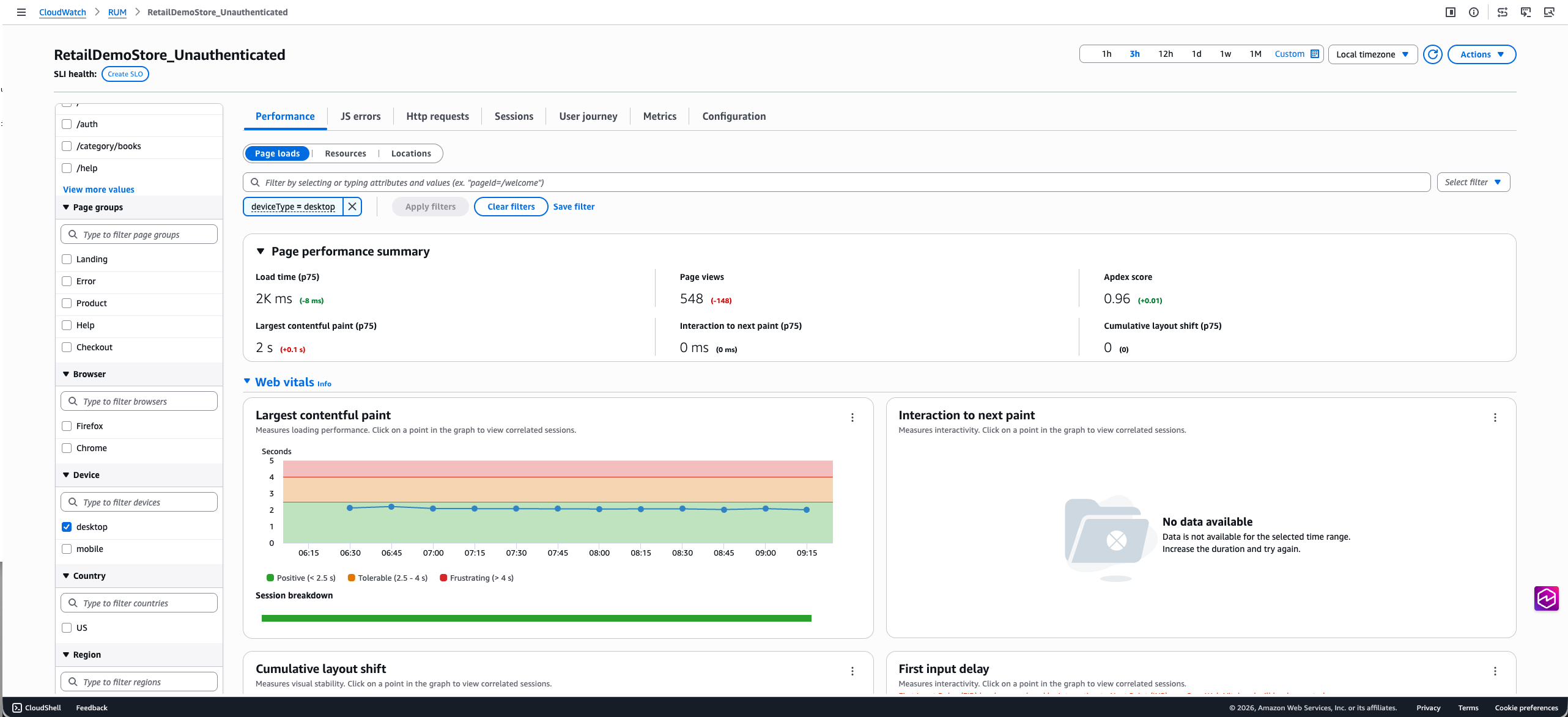

(Optional) On any of the first six tabs, you can choose the Pages button and select a page or page group from the list. This narrows down the displayed data to a single page or group of pages of your application. You can also mark pages and page groups in the list as favorites.
Mobile Application Dashboard
When you select a mobile application monitor, you'll see the following tabs:
-

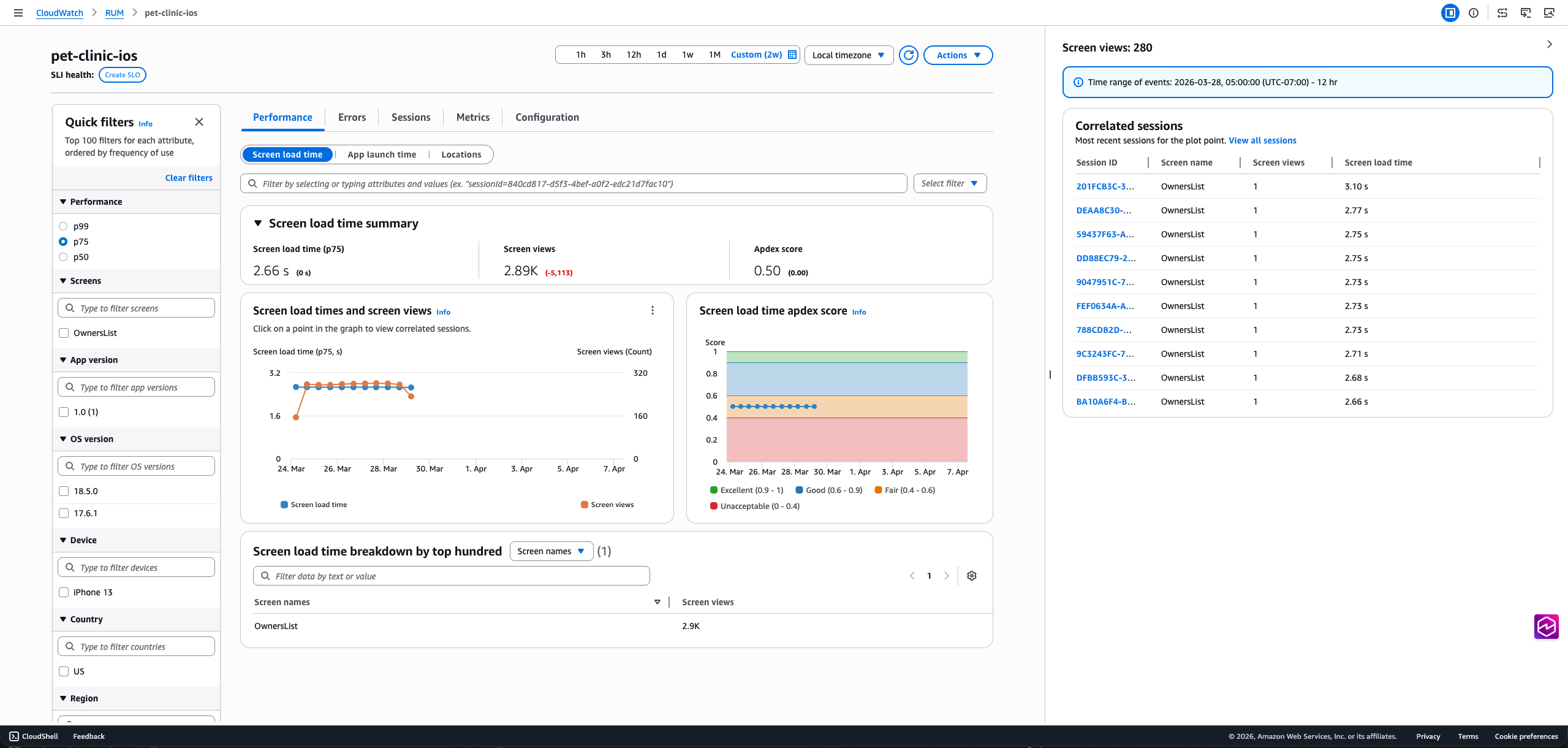

The Performance tab provides insights into the performance of your mobile application including screen load times, app launch times (cold and warm), performance metrics, and Apdex scores over time. The detailed view breaks down performance by screen names, OS versions, app versions, devices, and countries. Clicking a screen load time, app launch time, or location datapoint in the chart will open the diagnostic panel on the right that provides further insights relevant to the datapoint consisting the most recent correlated sessions and links to the Sessions tab for troubleshooting.
On this tab you can also toggle the view between Screen loads, App launches, and Location to see more details about application performance.
The tab also features the application performance index (Apdex) score which indicates end users' level of satisfaction. Scores range from 0 (least satisfied) to 1 (most satisfied). The scores are based on application performance only. For more information about Apdex scores, see .
-

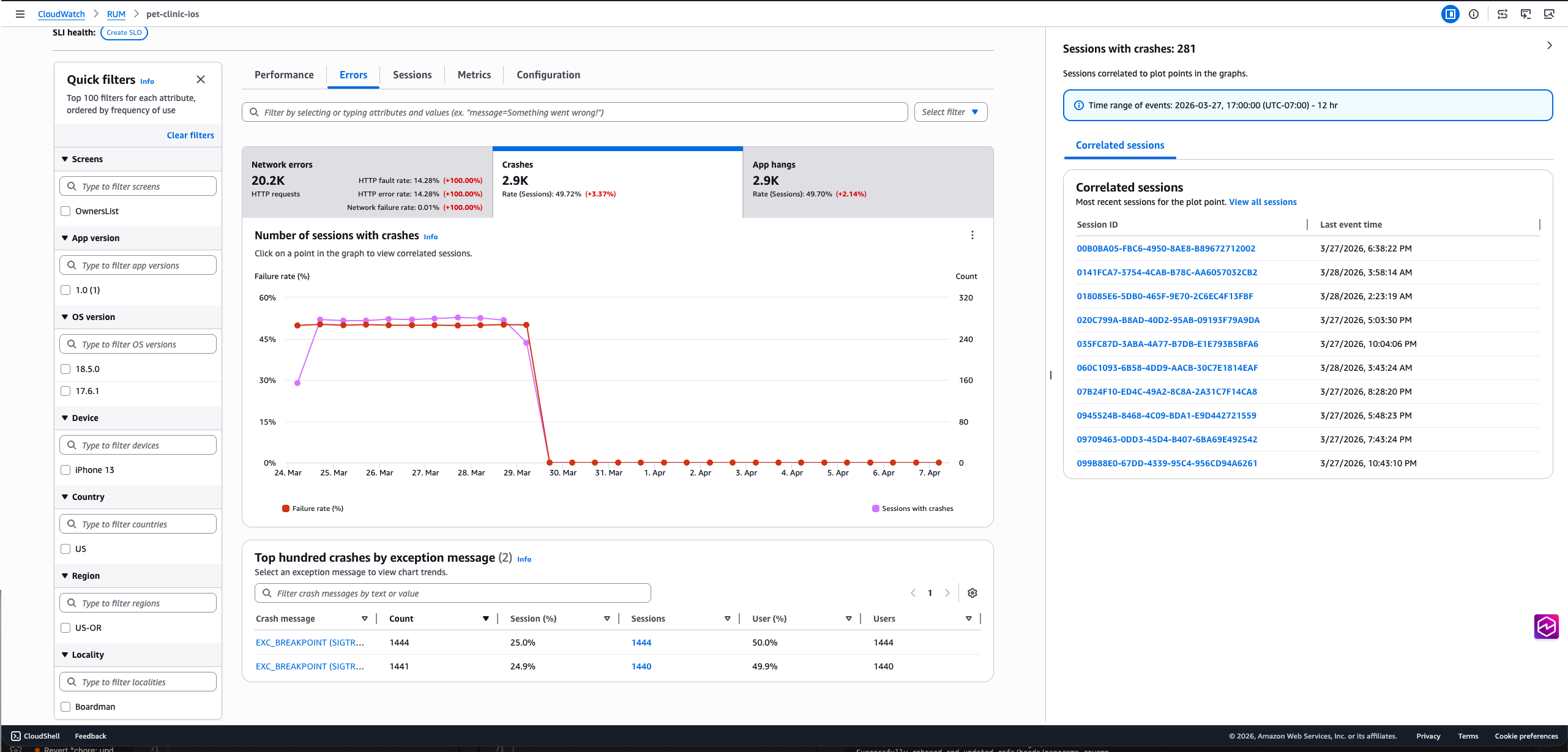

The Errors tab breaks down application issues in three categories: Network Errors, Crashes, and ANRs (Android)/App Hangs (iOS). The Network Errors tab has a line chart showing network latency, client errors (4xx status code), and server errors (5xx status code). Clicking on a data point for any of these lines in the chart will open the diagnostic panel. The bottom table lists the 100 most common network routes. Clicking on a radio button will filter the line chart by the network route selected.
Similarly, the Crashes and ANRs/App Hangs tabs show a line series for the count of each error, and these are intractable. The bottom table displays the most common top crash message or ANR/App Hang stack trace. Clicking on a radio button will filter the chart, and clicking the error message will show the complete stack trace.
-

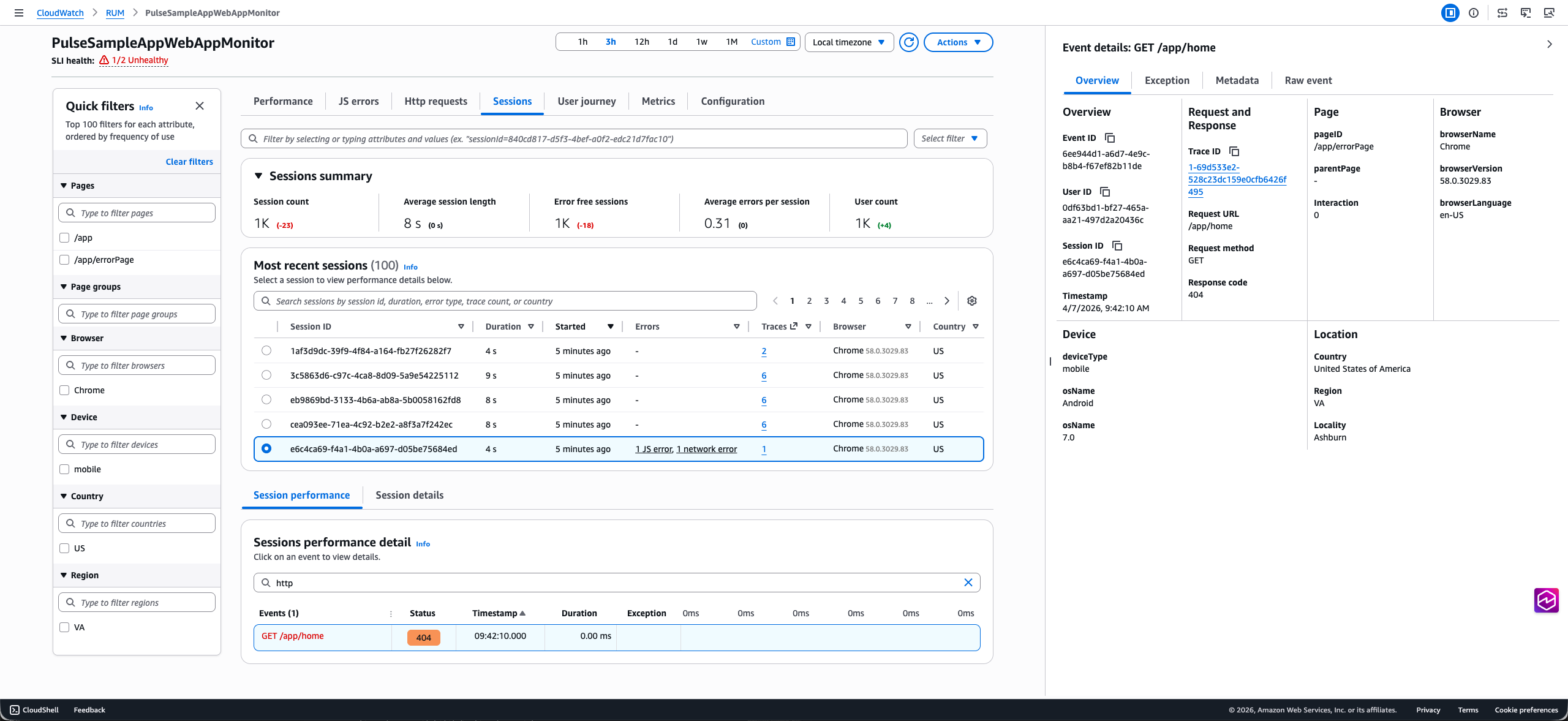

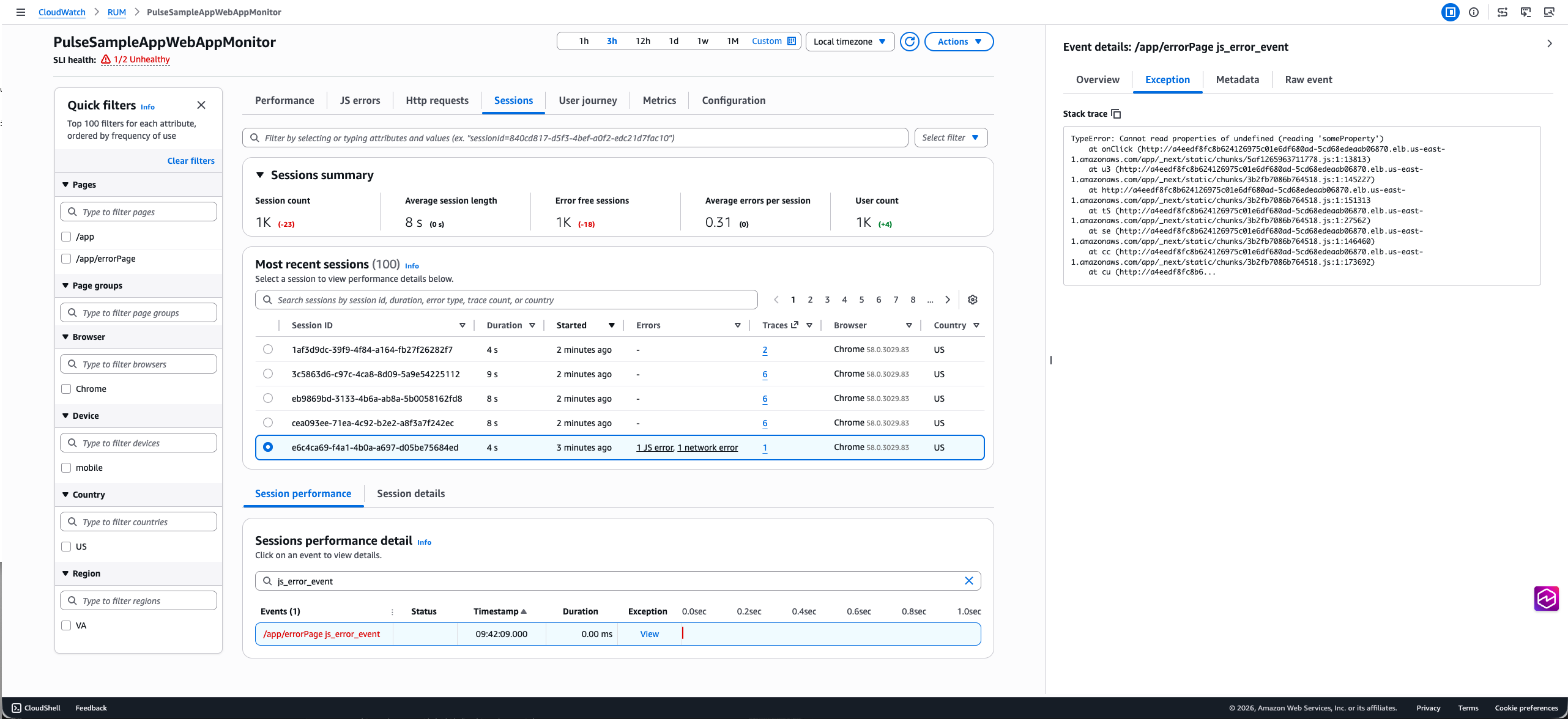

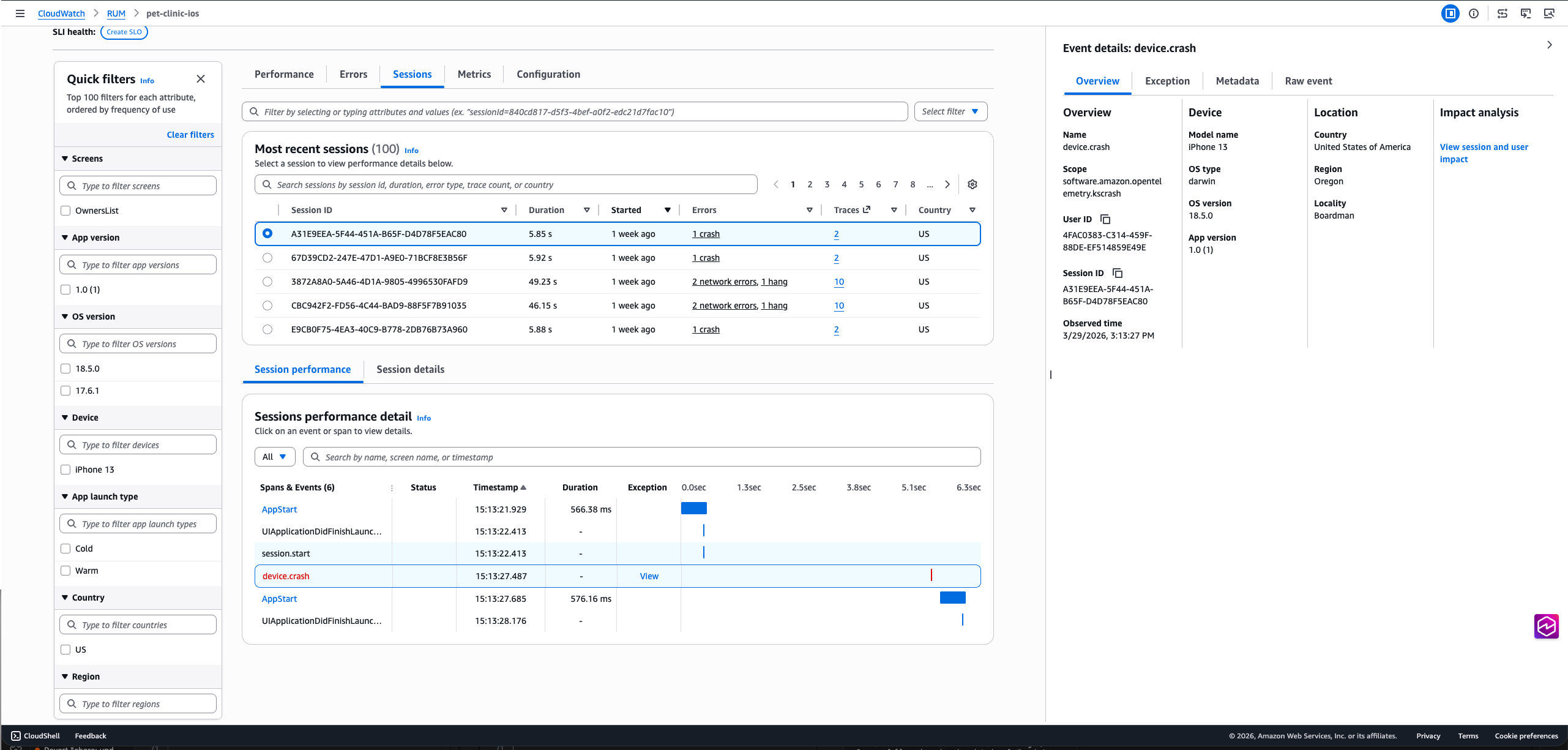

The Sessions tab displays a table that lists all sessions in descending chronological order. At the bottom, a waterfall visualization shows all telemetry for the selected session, helping you track user interactions and identify performance issues. Each row in the waterfall can be selected to open the diagnostic panel. For HTTP requests, you'll see a traceId that links to the Traces console.
For HTTP requests with non-2xx status codes, crashes, or ANRs (Android)/ App Hangs (iOS), the diagnostic panel includes an Exception tab with the stack trace. The View button in the waterfall provides quick access to this information.
-
The Metrics tab displays all default CloudWatch metrics published by your app monitor, including performance metrics (screen load times, cold app launch times), error metrics (crashes, ANRs/App Hangs, HTTP errors/faults), volume and apdex metrics. If you created extended metrics for your application, the tab also includes a subset of these metrics in the extended metrics section. This subset includes metrics of type ScreenLoadTime, ScreenLoadCount, CrashCount, Http4xxCount, Http5xxCount, ANRCount/AppHangCount, ColdLaunchTime and WarmLaunchTime. The dashboard shows three metric variations per metric type. Since these are CloudWatch metrics, you can also export this tab to your own dashboard using the Add to dashboard option and update it to include more metrics.
-
The Configuration tab provides access to your app monitor's general settings and configuration details. You can also access the Code snippets tab which contains instructions for instrumenting your mobile application with the ADOT SDK, including both Manual and Zero-Code instrumentation options.
How CloudWatch RUM sets Apdex scores
Apdex (Application Performance Index) is an open standard that defines a method to report, benchmark, and rate application response time. An Apdex score helps you understand and identify the impact on application performance over time.
The Apdex score indicates the end users' level of satisfaction. Scores range from 0 (least satisfied) to 1 (most satisfied). The scores are based on application performance only. Users are not asked to rate the application.
Each individual Apdex score falls into one of three thresholds. Based on the Apdex threshold and actual application response time, there are three kinds of performance, as follows:
-
Satisfied— The actual application response time is less than or equal to the Apdex threshold. For CloudWatch RUM, this threshold is 2000 ms or less.
-
Tolerable— The actual application response time is greater than the Apdex threshold, but less than or equal to four times the Apdex threshold. For CloudWatch RUM, this range is 2000—8000 ms.
-
Frustrating— The actual application response time is greater than four times the Apdex threshold. For CloudWatch RUM, this range is over 8000 ms.
The total 0-1 Apdex score is calculated using the following formula:
(positive scores + tolerable scores/2)/total scores * 100
