Learn how to create an Amazon ECS Windows task for the EC2 launch type
Get started with Amazon ECS using the EC2 launch type by registering a task definition, creating a cluster, and creating a service in the console.
Complete the following steps to get started with Amazon ECS using the EC2 launch type.
Prerequisites
Before you begin, complete the steps in Set up to use Amazon ECS and
that your Amazon user has the permissions specified in the
AdministratorAccess
IAM policy example.
The console attempts to automatically create the task execution IAM role, which is required for Fargate tasks. To ensure that the console is able to create this IAM role, one of the following must be true:
-
Your user has administrator access. For more information, see Set up to use Amazon ECS.
-
Your user has the IAM permissions to create a service role. For more information, see Creating a Role to Delegate Permissions to an Amazon Service.
-
A user with administrator access has manually created the task execution role so that it is available on the account to be used. For more information, see Amazon ECS task execution IAM role.
Important
The security group you select when creating a service with your task definition must have port 80 open for inbound traffic. Add the following inbound rule to your security group. For information about how to create a security group, see Add rules to your security group in the Amazon EC2 User Guide.
-
Type: HTTP
Protocol: TCP
-
Port range: 80
-
Source: Anywhere (
0.0.0.0/0
)
Step 1: Create a cluster
An Amazon ECS cluster is a logical grouping of tasks, services, and container instances.
The following steps walk you through creating a cluster with one Amazon EC2 instance registered to it which will enable us to run a task on it. If a specific field is not mentioned, leave the default console values.
To create a new cluster (Amazon ECS console)
Before you begin, assign the appropriate IAM permission. For more information, see Amazon ECS cluster examples.
Open the console at https://console.amazonaws.cn/ecs/v2
. -
From the navigation bar, select the Region to use.
-
In the navigation pane, choose Clusters.
-
On the Clusters page, choose Create cluster.
-
Under Cluster configuration, for Cluster name, enter a unique name.
The name can contain up to 255 letters (uppercase and lowercase), numbers, and hyphens.
-
(Optional) To change the VPC and subnets where your tasks and services launch, under Networking, perform any of the following operations:
-
To remove a subnet, under Subnets, choose X for each subnet that you want to remove.
-
To change to a VPC other than the default VPC, under VPC, choose an existing VPC, and then under Subnets, select each subnet.
-
-
To add Amazon EC2 instances to your cluster, expand Infrastructure, and then select Amazon EC2 instances. Next, configure the Auto Scaling group which acts as the capacity provider:
-
To using an existing Auto Scaling group, from Auto Scaling group (ASG), select the group.
-
To create a Auto Scaling group, from Auto Scaling group (ASG), select Create new group, and then provide the following details about the group:
-
For Operating system/Architecture, choose the Amazon ECS-optimized AMI for the Auto Scaling group instances.
-
For EC2 instance type, choose the instance type for your workloads. For more information about the different instance types, see Amazon EC2 Instances
. Managed scaling works best if your Auto Scaling group uses the same or similar instance types.
-
For SSH key pair, choose the pair that proves your identity when you connect to the instance.
-
For Capacity, enter the minimum number and the maximum number of instances to launch in the Auto Scaling group. Amazon EC2 instances incur costs while they exist in your Amazon resources. For more information, see Amazon EC2 Pricing
.
-
-
-
(Optional) To turn on Container Insights, expand Monitoring, and then turn on Use Container Insights.
-
(Optional) To manage the cluster tags, expand Tags, and then perform one of the following operations:
[Add a tag] Choose Add tag and do the following:
-
For Key, enter the key name.
-
For Value, enter the key value.
[Remove a tag] Choose Remove to the right of the tag’s Key and Value.
-
-
Choose Create.
Step 2: Register a task definition
To register the sample task definition with the Amazon Web Services Management Console
-
In the navigation pane, choose Task Definitions.
-
Choose Create new task definition, Create new task definition with JSON.
-
Copy and paste the following example task definition into the box, and then choose Save.
{ "containerDefinitions": [ { "command": ["New-Item -Path C:\\inetpub\\wwwroot\\index.html -Type file -Value '<html> <head> <title>Amazon ECS Sample App</title> <style>body {margin-top: 40px; background-color: #333;} </style> </head><body> <div style=color:white;text-align:center> <h1>Amazon ECS Sample App</h1> <h2>Congratulations!</h2> <p>Your application is now running on a container in Amazon ECS.</p>'; C:\\ServiceMonitor.exe w3svc"], "entryPoint": [ "powershell", "-Command" ], "essential": true, "cpu": 2048, "memory": 4096, "image": "mcr.microsoft.com/windows/servercore/iis:windowsservercore-ltsc2019", "name": "sample_windows_app", "portMappings": [ { "hostPort": 443, "containerPort": 80, "protocol": "tcp" } ] } ], "memory": "4096", "cpu": "2048", "family": "windows-simple-iis-2019-core", "executionRoleArn": "arn:aws:iam::012345678910:role/ecsTaskExecutionRole", "runtimePlatform": {"operatingSystemFamily": "WINDOWS_SERVER_2019_CORE"}, "requiresCompatibilities": ["EC2"] }
-
Verify your information and choose Create.
Step 3: Create a Service
An Amazon ECS service helps you to run and maintain a specified number of instances of a task definition simultaneously in an Amazon ECS cluster. If any of your tasks should fail or stop for any reason, the Amazon ECS service scheduler launches another instance of your task definition to replace it in order to maintain the desired number of tasks in the service. For more information on services, see Amazon ECS services.
To create a service
-
In the navigation pane, choose Clusters.
-
Select the cluster you created in Step 1: Create a cluster.
-
On the Services tab, choose Create.
-
In the Environment section, do the following:
-
For Compute options, choose Launch type.
-
For Launch type, select EC2
-
-
In the Deployment configuration section, do the following:
-
For Family, choose the task definition you created in Step 2: Register a task definition.
-
For Service name, enter a name for your service.
-
For Desired tasks, enter 1.
-
-
Review the options and choose Create.
-
Choose View service to review your service.
Step 4: View your Service
The service is a web-based application so you can view its containers with a web browser.
Open the console at https://console.amazonaws.cn/ecs/v2
. -
In the navigation pane, choose Clusters.
-
Choose the cluster where you ran the service.
-
In the Services tab, under Service name, choose the service you created in Step 3: Create a Service.
-
Choose the Tasks tab, and then choose the task in your service.
-

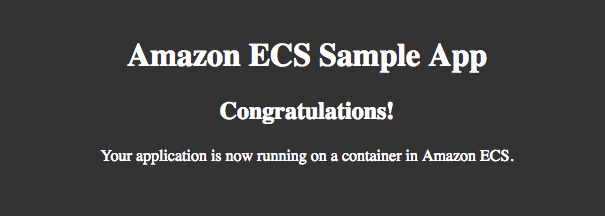

On the task page, in the Configuration section, under Public IP, choose Open address. The screen shot below is the expected output.
Step 5: Clean Up
When you are finished using an Amazon ECS cluster, you should clean up the resources associated with it to avoid incurring charges for resources that you are not using.
Some Amazon ECS resources, such as tasks, services, clusters, and container instances, are cleaned up using the Amazon ECS console. Other resources, such as Amazon EC2 instances, Elastic Load Balancing load balancers, and Auto Scaling groups, must be cleaned up manually in the Amazon EC2 console or by deleting the Amazon CloudFormation stack that created them.
-
In the navigation pane, choose Clusters.
-
On the Clusters page, select the cluster cluster you created for this tutorial.
-
Choose the Services tab.
-
Select the service, and then choose Delete.
-
At the confirmation prompt, enter delete and then choose Delete.
Wait until the service is deleted.
-
Choose Delete Cluster. At the confirmation prompt, enter delete
cluster-name
, and then choose Delete. Deleting the cluster cleans up the associated resources that were created with the cluster, including Auto Scaling groups, VPCs, or load balancers.
