Getting started with API Gateway

Note

The redesigned API Gateway console experience is now available. For a tutorial on how to use the console to create a REST API, see Getting started with the REST API console.

In this getting started exercise, you create a serverless API. Serverless APIs let you focus on your applications, instead of spending time provisioning and managing servers. This exercise takes less than 20 minutes to complete, and is possible within the Amazon Free Tier.

First, you create a Lambda function using the Amazon Lambda console. Next, you create an HTTP API using the API Gateway console. Then, you invoke your API.

Note

This exercise uses an HTTP API for simplicity. API Gateway also supports REST APIs, which include more features. To learn more, see Choosing between REST APIs and HTTP APIs.

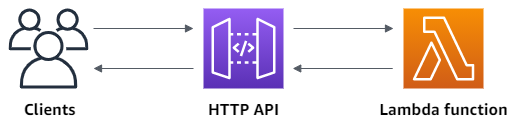

When you invoke your HTTP API, API Gateway routes the request to your Lambda function. Lambda runs the Lambda function and returns a response to API Gateway. API Gateway then returns a response to you.

To complete this exercise, you need an Amazon account and an Amazon Identity and Access Management user with console access. For more information, see Prerequisites for getting started with API Gateway.

Step 1: Create a Lambda function

You use a Lambda function for the backend of your API. Lambda runs your code only when needed and scales automatically, from a few requests per day to thousands per second.

For this example, you use the default Node.js function from the Lambda console.

To create a Lambda function

  1. Sign in to the Lambda console at https://console.amazonaws.cn/lambda.

  2. Choose Create function.

  3. For Function name, enter my-function.

  4. Choose Create function.

The example function returns a 200 response to clients, and the text Hello from Lambda!.

You can modify your Lambda function, as long as the function's response aligns with the format that API Gateway requires.

The default Lambda function code should look similar to the following:

export const handler = async (event) => {
    const response = {
        statusCode: 200,
        body: JSON.stringify('Hello from Lambda!'),
    };
    return response;
};

Step 2: Create an HTTP API

Next, you create an HTTP API. API Gateway also supports REST APIs and WebSocket APIs, but an HTTP API is the best choice for this exercise. REST APIs support more features than HTTP APIs, but we don't need those features for this exercise. HTTP APIs are designed with minimal features so that they can be offered at a lower price. WebSocket APIs maintain persistent connections with clients for full-duplex communication, which isn't required for this example.

The HTTP API provides an HTTP endpoint for your Lambda function. API Gateway routes requests to your Lambda function, and then returns the function's response to clients.

To create an HTTP API

  1. Sign in to the API Gateway console at https://console.amazonaws.cn/apigateway.

  2. Do one of the following:

    • To create your first API, for HTTP API, choose Build.

    • If you've created an API before, choose Create API, and then choose Build for HTTP API.

  3. For Integrations, choose Add integration.

  4. Choose Lambda.

  5. For Lambda function, enter my-function.

  6. For API name, enter my-http-api.

  7. Choose Next.

  8. Review the route that API Gateway creates for you, and then choose Next.

  9. Review the stage that API Gateway creates for you, and then choose Next.

  10. Choose Create.

Now you've created an HTTP API with a Lambda integration that's ready to receive requests from clients.

Step 3: Test your API

Next, you test your API to make sure that it's working. For simplicity, use a web browser to invoke your API.

To test your API

  1. Sign in to the API Gateway console at https://console.amazonaws.cn/apigateway.

  2. Choose your API.

  3. Note your API's invoke URL.

  4. Copy your API's invoke URL, and enter it in a web browser. Append the name of your Lambda function to your invoke URL to call your Lambda function. By default, the API Gateway console creates a route with the same name as your Lambda function, my-function.

    The full URL should look like https://abcdef123.execute-api.us-east-2.amazonaws.com/my-function.

    Your browser sends a GET request to the API.

  5. Verify your API's response. You should see the text "Hello from Lambda!" in your browser.

(Optional) Step 4: Clean up

To prevent unnecessary costs, delete the resources that you created as part of this getting started exercise. The following steps delete your HTTP API, your Lambda function, and associated resources.

To delete an HTTP API

  1. Sign in to the API Gateway console at https://console.amazonaws.cn/apigateway.

  2. On the APIs page, select an API. Choose Actions, and then choose Delete.

  3. Choose Delete.

To delete a Lambda function

  1. Sign in to the Lambda console at https://console.amazonaws.cn/lambda.

  2. On the Functions page, select a function. Choose Actions, and then choose Delete.

  3. Choose Delete.

To delete a Lambda function's log group

  1. In the Amazon CloudWatch console, open the Log groups page.

  2. On the Log groups page, select the function's log group (/aws/lambda/my-function). Choose Actions, and then choose Delete log group.

  3. Choose Delete.

To delete a Lambda function's execution role

  1. In the Amazon Identity and Access Management console, open the Roles page.

  2. Select the function's role, for example, my-function-31exxmpl.

  3. Choose Delete role.

  4. Choose Yes, delete.

You can automate the creation and cleanup of Amazon resources by using Amazon CloudFormation or Amazon SAM. For example Amazon CloudFormation templates, see example Amazon CloudFormation templates.

Next steps

For this example, you used the Amazon Web Services Management Console to create a simple HTTP API. The HTTP API invokes a Lambda function and returns a response to clients.
