Define the gateway target configuration

The target configuration depends on the target type that you’re adding to the gateway. For more information about supported gateway target types, see Supported targets for Amazon Bedrock AgentCore gateways.

Select a topic to see examples of adding a target type:

Add a Lambda target

You can add a Lambda target to your gateway using the AgentCore CLI by passing a --target-configuration with "targetType": "lambdaFunctionArn", the Lambda ARN, and a tool schema file.

Target configuration

The target configuration (or payload) for a Lambda function contains the following fields:

  • lambdaArn – The ARN of the Lambda function to use as your target.

  • toolSchema – The tool schema for the gateway target.

For more information about Lambda targets, see Amazon Lambda function targets.

Select one of the following methods:

Example
AgentCore CLI

  1. Add a Lambda function target with a complete target configuration. The tool schema file path is relative to the project:

    agentcore add gateway-target \
  --gateway MyGateway \
  --target-configuration '{
    "name": "MyLambdaTarget",
    "targetType": "lambdaFunctionArn",
    "lambdaFunctionArn": {
      "lambdaArn": "arn:aws:lambda:us-east-1:123456789012:function:MyFunction",
      "toolSchemaFile": "tools.json"
    }
  }'
agentcore deploy

    For the AgentCore Python SDK and Boto3, provide the tool schema with inlinePayload.

AgentCore Python SDK

  1. With the AgentCore Python SDK, you can create an Amazon Lambda target with default configurations.

    # Import dependencies
from bedrock_agentcore_starter_toolkit.operations.gateway.client import GatewayClient

# Initialize the client
client = GatewayClient(region_name="us-east-1")

# Create a lambda target.
lambda_target = client.create_mcp_gateway_target(
    gateway=gateway,
    name=None, # If you don't set one, one will be generated.
    target_type="lambda",
    target_payload=None, # Define your own lambda if you pre-created one. Otherwise leave this as None and one will be created for you.
    credentials=None, # If you leave this as None, one will be created for you
)

    The following is an example argument you can provide for the target_payload . If you omit the target_payload argument, this payload is used:

    {
    "lambdaArn": "<insert your lambda arn>",
    "toolSchema": {
        "inlinePayload": [
            {
                "name": "get_weather",
                "description": "Get weather for a location",
                "inputSchema": {
                    "type": "object",
                    "properties": {
                        "location": {
                            "type": "string",
                            "description": "the location e.g. seattle, wa"
                        }
                    },
                    "required": [
                        "location"
                    ]
                }
            },
            {
                "name": "get_time",
                "description": "Get time for a timezone",
                "inputSchema": {
                    "type": "object",
                    "properties": {
                        "timezone": {
                            "type": "string"
                        }
                    },
                    "required": [
                        "timezone"
                    ]
                }
            }
        ]
    }
}
Boto3

  1. The following Python code shows how to add a Lambda target using the Amazon Python SDK (Boto3):

    import boto3

# Create the agentcore client
agentcore_client = boto3.client('bedrock-agentcore-control')

# Create a Lambda target
target = agentcore_client.create_gateway_target(
    gatewayIdentifier="your-gateway-id",
    name="LambdaTarget",
    targetConfiguration={
        "mcp": {
            "lambda": {
                "lambdaArn": "arn:aws:lambda:us-west-2:123456789012:function:YourLambdaFunction",
                "toolSchema": {
                    "inlinePayload": [
                        {
                            "name": "get_weather",
                            "description": "Get weather for a location",
                            "inputSchema": {
                                "type": "object",
                                "properties": {"location": {"type": "string"}},
                                "required": ["location"],
                            },
                        },
                        {
                            "name": "get_time",
                            "description": "Get time for a timezone",
                            "inputSchema": {
                                "type": "object",
                                "properties": {"timezone": {"type": "string"}},
                                "required": ["timezone"],
                            },
                        },
                    ]
                }
            }
        }
    },
    credentialProviderConfigurations=[
        {
            "credentialProviderType": "GATEWAY_IAM_ROLE"
        }
    ]
)

Add an API Gateway stage target

To add a stage of an API Gateway REST API as a target, specify the REST API ID and stage name, and define settings to filter tools in the API gateway or to override names and descriptions of tools in the gateway:

The following examples show how to add an API Gateway target. The following configurations are also applied:

  • The tools filtered for are the GET and POST methods for the /products path.

  • GET /products is renamed as get_items.

Select one of the following methods:

Example
AgentCore CLI

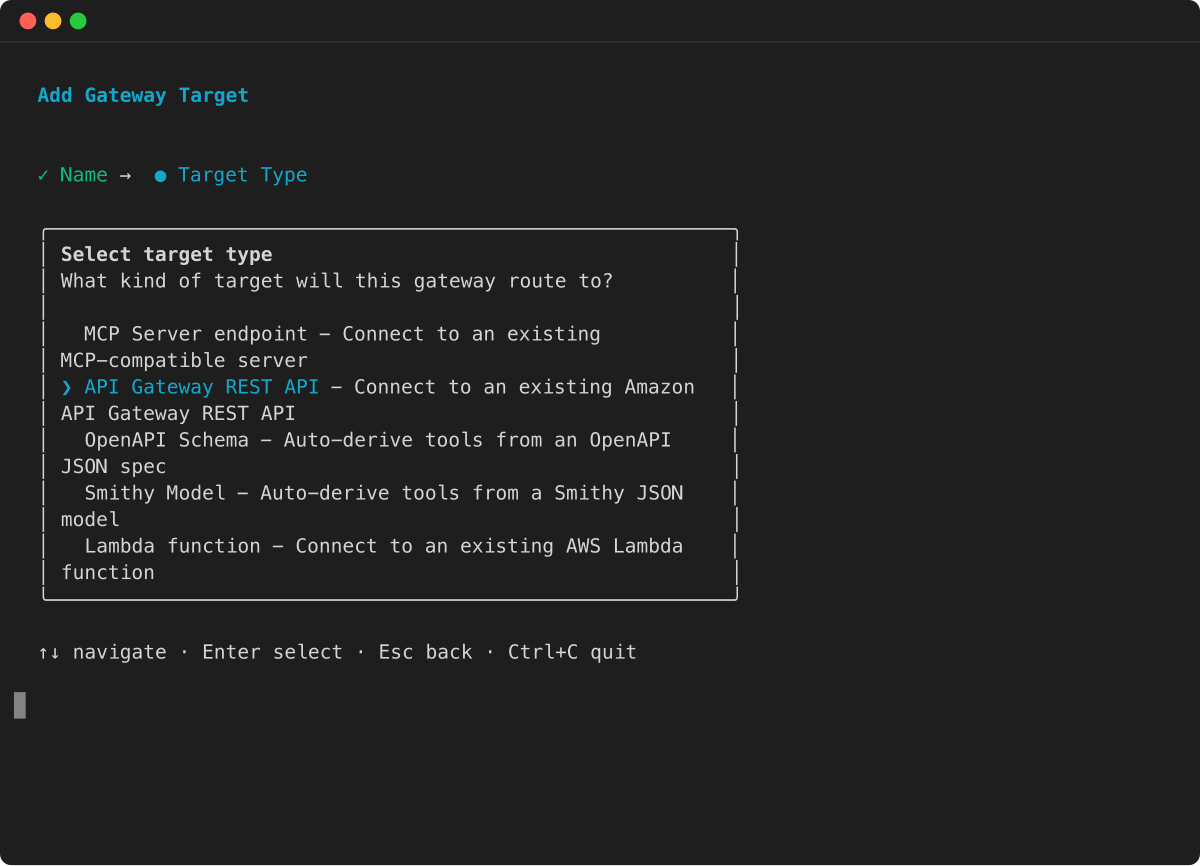

  1. Add an API Gateway REST API stage as a target with a complete target configuration:

    agentcore add gateway-target \
  --gateway MyGateway \
  --target-configuration '{
    "name": "MyAPIGatewayTarget",
    "targetType": "apiGateway",
    "apiGateway": {
      "restApiId": "your-rest-api-id",
      "stage": "your-stage",
      "apiGatewayToolConfiguration": {
        "toolFilters": [
          {
            "filterPath": "/products",
            "methods": ["GET", "POST"]
          }
        ],
        "toolOverrides": [
          {
            "name": "get_items",
            "path": "/products",
            "method": "GET"
          }
        ]
      }
    }
  }'
agentcore deploy
Amazon CLI

  1. The following command uses the Amazon CLI:

    aws bedrock-agentcore-control create-gateway-target \
    --gateway-identifier "your-gateway-id" \
    --name "SearchAPITarget" \
    --target-configuration '{
        "mcp": {
            "apiGateway": {
                "restApiId": "your-rest-api-id",
                "stage": "your-stage",
                "apiGatewayToolConfiguration": {
                    "toolFilters": [
                        {
                            "filterPath": "/products",
                            "methods": [
                                "GET",
                                "POST"
                            ]
                        }
                    ],
                    "toolOverrides": [
                        {
                            "path": "/products",
                            "method": "GET",
                            "name": "get_items",
                            "description": "Gets information for items in the list of products."
                        }
                    ]
                }
            }
        }
    }' \
    --credential-provider-configurations '[
        {
            "credentialProviderType": "GATEWAY_IAM_ROLE"
        }
    ]'
Boto3

  1. The following code uses the Amazon Python SDK (Boto3):

    import boto3

# Create the client
agentcore_client = boto3.client('bedrock-agentcore-control')

# Create an API gateway REST API target with gateway service role authentication
target = agentcore_client.create_gateway_target(
    gatewayIdentifier="your-gateway-id",
    name="SearchAPITarget",
    targetConfiguration={
        "mcp": {
            "apiGateway": {
                "restApiId": "your-rest-api-id",
                "stage": "your-stage",
                "apiGatewayToolConfiguration": {
                    "toolFilters": [
                        {
                            "filterPath": "/products",
                            "methods": [
                                "GET",
                                "POST"
                            ]
                        }
                    ],
                    "toolOverrides": [
                        {
                            "path": "/products",
                            "method": "GET",
                            "name": "get_item",
                            "description": "Gets information for a specific item in the product list."
                        }
                    ]
                }
            }
        }
    },
    credentialProviderConfigurations=[
        {
            "credentialProviderType": "GATEWAY_IAM_ROLE"
        }
    ]
)

Add an OpenAPI target

Select one of the following methods:

Example
AgentCore CLI

  1. Add an API key credential to the project, then add an OpenAPI schema target that references it:

    printf '%s' "$API_KEY" | agentcore add credentials api-key \
  --name MyApiKey \
  --api-key -

agentcore add gateway-target \
  --gateway MyGateway \
  --target-configuration '{
    "name": "MyOpenAPITarget",
    "targetType": "openApiSchema",
    "schemaSource": {
      "inline": {
        "path": "path/to/openapi-spec.json"
      }
    },
    "outboundAuth": {
      "type": "API_KEY",
      "credentialName": "MyApiKey"
    }
  }'
agentcore deploy
Boto3

  1. The following Python code shows how to add an OpenAPI target using the Amazon Python SDK (Boto3). The schema has been uploaded to an S3 location whose URI is referenced in the target_payload . Outbound authorization for the target is through an API key.

    import boto3

# Create the client
agentcore_client = boto3.client('bedrock-agentcore-control')

# Create an OpenAPI target with API Key authentication
target = agentcore_client.create_gateway_target(
    gatewayIdentifier="your-gateway-id",
    name="SearchAPITarget",
    targetConfiguration={
        "mcp": {
            "openApiSchema": {
                "s3": {
                    "uri": "s3://your-bucket/path/to/open-api-spec.json",
                    "bucketOwnerAccountId": "123456789012"
                }
            }
        }
    },
    credentialProviderConfigurations=[
        {
            "credentialProviderType": "API_KEY",
            "credentialProvider": {
                "apiKeyCredentialProvider": {
                    "providerArn": "arn:aws:agent-credential-provider:us-east-1:123456789012:token-vault/default/apikeycredentialprovider/abcdefghijk",
                    "credentialLocation": "HEADER",
                    "credentialParameterName": "X-API-Key"
                }
            }
        }
    ]
)

Add a Smithy target

Select one of the following methods:

Example
AgentCore CLI

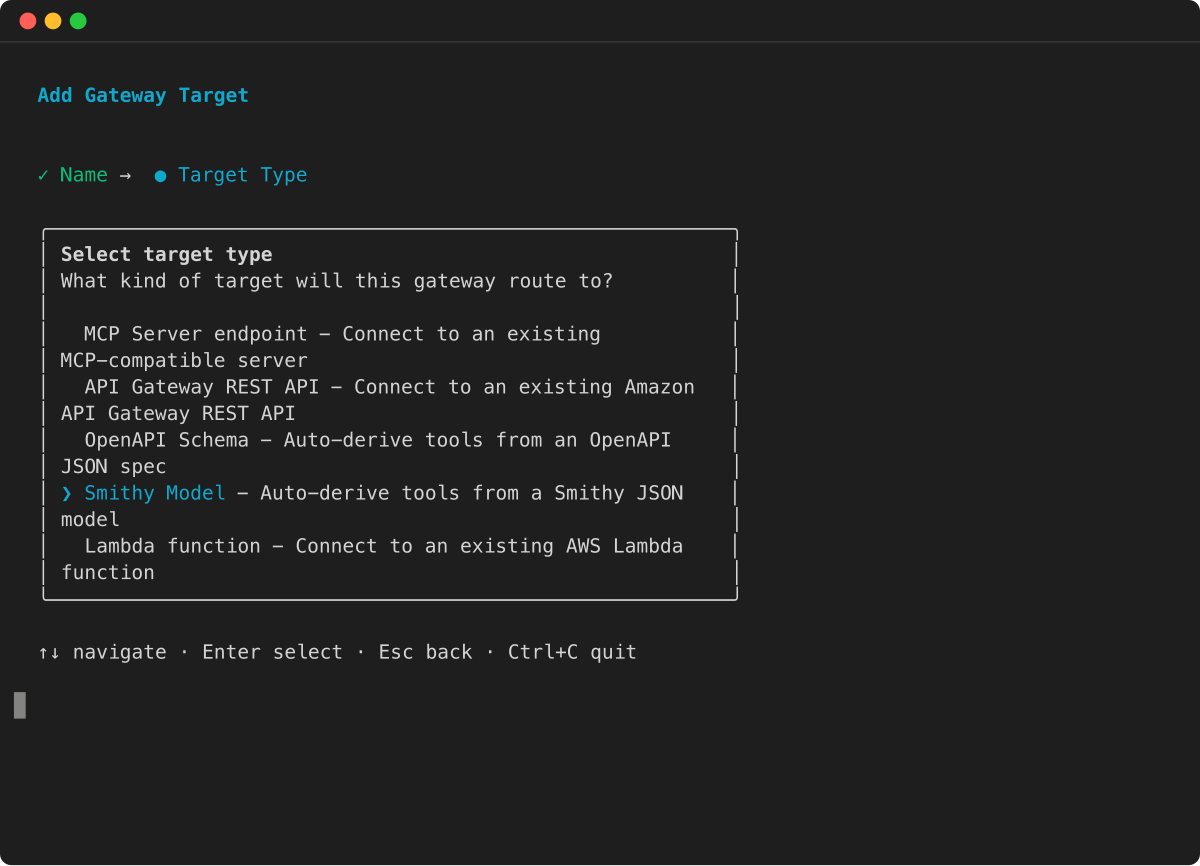

  1. Add a Smithy model target and provide the path to the model file:

    agentcore add gateway-target \
  --gateway MyGateway \
  --target-configuration '{
    "name": "MySmithyTarget",
    "targetType": "smithyModel",
    "schemaSource": {
      "inline": {
        "path": "path/to/smithy-model.json"
      }
    }
  }'
agentcore deploy
Boto3

  1. The following Python code shows how to add a Smithy model target using the Amazon Python SDK (Boto3):

    import boto3

# Create the agentcore client
agentcore_client = boto3.client('bedrock-agentcore-control')

# Create a Smithy model target
target = agentcore_client.create_gateway_target(
    gatewayIdentifier="your-gateway-id",
    name="DynamoDBTarget",
    targetConfiguration={
        "mcp": {
            "smithyModel": {
                "s3": {
                    "uri": "s3://your-bucket/path/to/smithy-model.json",
                    "bucketOwnerAccountId": "123456789012"
                }
            }
        }
    },
    credentialProviderConfigurations=[
        {
            "credentialProviderType": "GATEWAY_IAM_ROLE"
        }
    ]
)

Add an HTTP runtime target

You can add an Amazon Bedrock AgentCore Runtime agent as an HTTP target to your gateway. The gateway sends traffic directly to the runtime agent without aggregation or protocol translation.

For more information about HTTP targets, see Amazon Bedrock AgentCore Runtime targets.

Select one of the following methods:

Example
AgentCore CLI

  1. Add a runtime from your project as a target. Create the gateway without --protocol-type MCP. Declare the runtime first, for example with agentcore add runtime --name MyAgent --language python --protocol HTTP:

    agentcore add gateway-target \
  --gateway MyGateway \
  --name MyRuntimeTarget \
  --runtime MyAgent
agentcore deploy
Amazon CLI

  1. The following command creates an HTTP runtime target with IAM authorization:

    aws bedrock-agentcore-control create-gateway-target \
    --gateway-identifier "your-gateway-id" \
    --name "MyRuntimeTarget" \
    --description "Runtime gateway target" \
    --target-configuration '{
        "http": {
            "agentcoreRuntime": {
                "arn": "arn:aws:bedrock-agentcore:us-west-2:111122223333:runtime/RUNTIME_ID"
            }
        }
    }' \
    --credential-provider-configurations '[{
        "credentialProviderType": "GATEWAY_IAM_ROLE"
    }]'
Boto3

  1. The following Python code shows how to add an HTTP runtime target using the Amazon Python SDK (Boto3):

    import boto3

agentcore_client = boto3.client('bedrock-agentcore-control')

target = agentcore_client.create_gateway_target(
    gatewayIdentifier="your-gateway-id",
    name="MyRuntimeTarget",
    description="Runtime gateway target",
    targetConfiguration={
        "http": {
            "agentcoreRuntime": {
                "arn": "arn:aws:bedrock-agentcore:us-west-2:111122223333:runtime/RUNTIME_ID"
            }
        }
    },
    credentialProviderConfigurations=[
        {
            "credentialProviderType": "GATEWAY_IAM_ROLE"
        }
    ]
)

Add an MCP server target

You can add an MCP server target using the AgentCore CLI or Amazon Python SDK (Boto3). The following examples show how to create an MCP server target with different outbound authorization types.

MCP server with IAM (SigV4) authorization

The following example creates an MCP server target with IAM authorization. The gateway signs requests to the MCP server using SigV4 with the gateway service role’s credentials. You must specify the service name for signing. The region is optional and defaults to the gateway’s Region.

The value of service depends on where your MCP server is hosted. The following are common values:

  • bedrock-agentcore – For MCP servers hosted on Amazon Bedrock AgentCore, such as the runtime (see Deploy MCP servers in AgentCore Runtime ) or another gateway.

  • execute-api – For MCP servers behind Amazon API Gateway.

  • lambda – For MCP servers behind Lambda Function URLs.

Select one of the following methods:

Example
Amazon CLI

  1. aws bedrock-agentcore-control create-gateway-target \
    --gateway-identifier "your-gateway-id" \
    --name "MyMCPTarget" \
    --target-configuration '{
        "mcp": {
            "mcpServer": {
                "endpoint": "https://my-server.bedrock-agentcore.us-west-2.api.aws"
            }
        }
    }' \
    --credential-provider-configurations '[{
        "credentialProviderType": "GATEWAY_IAM_ROLE",
        "credentialProvider": {
            "iamCredentialProvider": {
                "service": "bedrock-agentcore",
                "region": "us-west-2"
            }
        }
    }]'
Boto3

  1. import boto3

agentcore_client = boto3.client('bedrock-agentcore-control')

target = agentcore_client.create_gateway_target(
    gatewayIdentifier="your-gateway-id",
    name="MyMCPTarget",
    targetConfiguration={
        "mcp": {
            "mcpServer": {
                "endpoint": "https://my-server.bedrock-agentcore.us-west-2.api.aws"
            }
        }
    },
    credentialProviderConfigurations=[
        {
            "credentialProviderType": "GATEWAY_IAM_ROLE",
            "credentialProvider": {
                "iamCredentialProvider": {
                    "service": "bedrock-agentcore",
                    "region": "us-west-2"
                }
            }
        }
    ]
)

MCP server with OAuth authorization

The following example creates an MCP server target with OAuth (client credentials) authorization.

The OAuth application must support the client_credentials grant. An application configured only for the authorization code (code) grant cannot be used for gateway outbound authorization. For Amazon Cognito, create a resource server scope and configure the app client with --allowed-o-auth-flows client_credentials and that custom scope:

aws cognito-idp create-user-pool-client \
  --user-pool-id <USER_POOL_ID> \
  --client-name gateway-client \
  --generate-secret \
  --allowed-o-auth-flows client_credentials \
  --allowed-o-auth-scopes "<RESOURCE_SERVER_IDENTIFIER>/<SCOPE_NAME>" \
  --allowed-o-auth-flows-user-pool-client \
  --supported-identity-providers COGNITO

Select one of the following methods:

Example
Amazon CLI

  1. aws bedrock-agentcore-control create-gateway-target \
    --gateway-identifier "your-gateway-id" \
    --name "MyMCPTarget" \
    --target-configuration '{
        "mcp": {
            "mcpServer": {
                "endpoint": "https://my-mcp-server.example.com"
            }
        }
    }' \
    --credential-provider-configurations '[{
        "credentialProviderType": "OAUTH",
        "credentialProvider": {
            "oauthCredentialProvider": {
                "providerArn": "arn:aws:bedrock-agentcore:us-west-2:123456789012:token-vault/default/oauth2credentialprovider/my-oauth-provider",
                "scopes": []
            }
        }
    }]'
AgentCore CLI

  1. Declare the OAuth credential in the project, then reference it when you add the MCP server target:

    printf '%s' "$CLIENT_SECRET" | agentcore add credentials oauth \
  --name MyOauthCredential \
  --vendor CustomOauth2 \
  --client-id my-client \
  --discovery-url https://auth.example.com/.well-known/openid-configuration \
  --client-secret -

agentcore add gateway-target \
  --gateway MyGateway \
  --name MyMCPTarget \
  --endpoint https://my-mcp-server.example.com \
  --outbound-auth oauth \
  --credential-name MyOauthCredential
agentcore deploy
Boto3

  1. import boto3

agentcore_client = boto3.client('bedrock-agentcore-control')

target = agentcore_client.create_gateway_target(
    gatewayIdentifier="your-gateway-id",
    name="MyMCPTarget",
    targetConfiguration={
        "mcp": {
            "mcpServer": {
                "endpoint": "https://my-mcp-server.example.com"
            }
        }
    },
    credentialProviderConfigurations=[
        {
            "credentialProviderType": "OAUTH",
            "credentialProvider": {
                "oauthCredentialProvider": {
                    "providerArn": "arn:aws:bedrock-agentcore:us-west-2:123456789012:token-vault/default/oauth2credentialprovider/my-oauth-provider",
                    "scopes": []
                }
            }
        }
    ]
)

MCP server with API key authorization

The following example creates an MCP server target with API key authorization.

Select one of the following methods:

Example
Amazon CLI

  1. aws bedrock-agentcore-control create-gateway-target \
    --gateway-identifier "your-gateway-id" \
    --name "MyMCPTarget" \
    --target-configuration '{
        "mcp": {
            "mcpServer": {
                "endpoint": "https://my-mcp-server.example.com"
            }
        }
    }' \
    --credential-provider-configurations '[{
        "credentialProviderType": "API_KEY",
        "credentialProvider": {
            "apiKeyCredentialProvider": {
                "providerArn": "arn:aws:bedrock-agentcore:us-west-2:123456789012:token-vault/default/apikeycredentialprovider/my-api-key",
                "credentialLocation": "HEADER",
                "credentialParameterName": "x-api-key",
                "credentialPrefix": ""
            }
        }
    }]'
Boto3

  1. import boto3

agentcore_client = boto3.client('bedrock-agentcore-control')

target = agentcore_client.create_gateway_target(
    gatewayIdentifier="your-gateway-id",
    name="MyMCPTarget",
    targetConfiguration={
        "mcp": {
            "mcpServer": {
                "endpoint": "https://my-mcp-server.example.com"
            }
        }
    },
    credentialProviderConfigurations=[
        {
            "credentialProviderType": "API_KEY",
            "credentialProvider": {
                "apiKeyCredentialProvider": {
                    "providerArn": "arn:aws:bedrock-agentcore:us-west-2:123456789012:token-vault/default/apikeycredentialprovider/my-api-key",
                    "credentialLocation": "HEADER",
                    "credentialParameterName": "x-api-key",
                    "credentialPrefix": ""
                }
            }
        }
    ]
)

Add a Connector target with Amazon Bedrock Managed Knowledge Bases

You can add the Amazon Bedrock Managed Knowledge Bases connector as a target to your gateway.

For more information about the Amazon Bedrock Managed Knowledge Bases connector, see Amazon Bedrock Managed Knowledge Bases.

Set up a managed knowledge base

The connector exposes two tools, each named after its backend operation: AgenticRetrieveStream (multi-step, streaming agentic retrieval) and Retrieve (a single hybrid search). You add a configuration entry per tool.

For AgenticRetrieveStream, set retrievers (the managed knowledge bases to query) and agenticRetrieveConfiguration in parameterValues. Both are required — omitting agenticRetrieveConfiguration causes a runtime error. It can be an empty object ({}) to accept service-managed defaults, but specifying foundationModelType and rerankingModelType makes the configuration explicit. The agent does not supply knowledge base IDs at call time. For Retrieve, set the knowledgeBaseId in parameterValues; it is required.

The connector supports only managed knowledge bases. Connector targets support only the GATEWAY_IAM_ROLE credential provider type.

Example
Boto3

  1. The following Python code shows how to create a Gateway Target with the Amazon Bedrock Managed Knowledge Bases connector configuration using the Amazon Python SDK (Boto3):

    import boto3

gateway_client = boto3.client("bedrock-agentcore-control", region_name="<REGION>")

gateway_client.create_gateway_target(
    name="managed-kb",
    gatewayIdentifier="<GATEWAY_ID>",
    targetConfiguration={
        "mcp": {
            "connector": {
                "source": {"connectorId": "bedrock-knowledge-bases"},
                "configurations": [
                    {
                        "name": "AgenticRetrieveStream",
                        "parameterValues": {
                            "retrievers": [
                                {
                                    "description": "Product documentation",
                                    "configuration": {"knowledgeBase": {"knowledgeBaseId": "<KB_ID_1>"}},
                                },
                                {
                                    "description": "Engineering runbooks",
                                    "configuration": {"knowledgeBase": {"knowledgeBaseId": "<KB_ID_2>"}},
                                },
                            ],
                            "agenticRetrieveConfiguration": {
                                "foundationModelType": "MANAGED",
                                "rerankingModelType": "MANAGED",
                            },
                        },
                    },
                    {
                        "name": "Retrieve",
                        "parameterValues": {"knowledgeBaseId": "<KB_ID>"},
                    },
                ],
            }
        }
    },
    credentialProviderConfigurations=[
        {"credentialProviderType": "GATEWAY_IAM_ROLE"}
    ],
)
Amazon CLI

  1. The following command creates a Gateway Target with the Amazon Bedrock Managed Knowledge Bases connector configuration using the Amazon CLI:

    aws bedrock-agentcore-control create-gateway-target \
  --gateway-identifier "<GATEWAY_ID>" \
  --name "managed-kb" \
  --target-configuration '{
    "mcp": {
      "connector": {
        "source": {
          "connectorId": "bedrock-knowledge-bases"
        },
        "configurations": [
          {
            "name": "AgenticRetrieveStream",
            "parameterValues": {
              "retrievers": [
                {
                  "description": "Product documentation",
                  "configuration": {"knowledgeBase": {"knowledgeBaseId": "<KB_ID_1>"}}
                },
                {
                  "description": "Engineering runbooks",
                  "configuration": {"knowledgeBase": {"knowledgeBaseId": "<KB_ID_2>"}}
                }
              ],
              "agenticRetrieveConfiguration": {
                "foundationModelType": "MANAGED",
                "rerankingModelType": "MANAGED"
              }
            }
          },
          {
            "name": "Retrieve",
            "parameterValues": {
              "knowledgeBaseId": "<KB_ID>"
            }
          }
        ]
      }
    }
  }' \
  --credential-provider-configurations '[{"credentialProviderType": "GATEWAY_IAM_ROLE"}]' \
  --region "<REGION>"

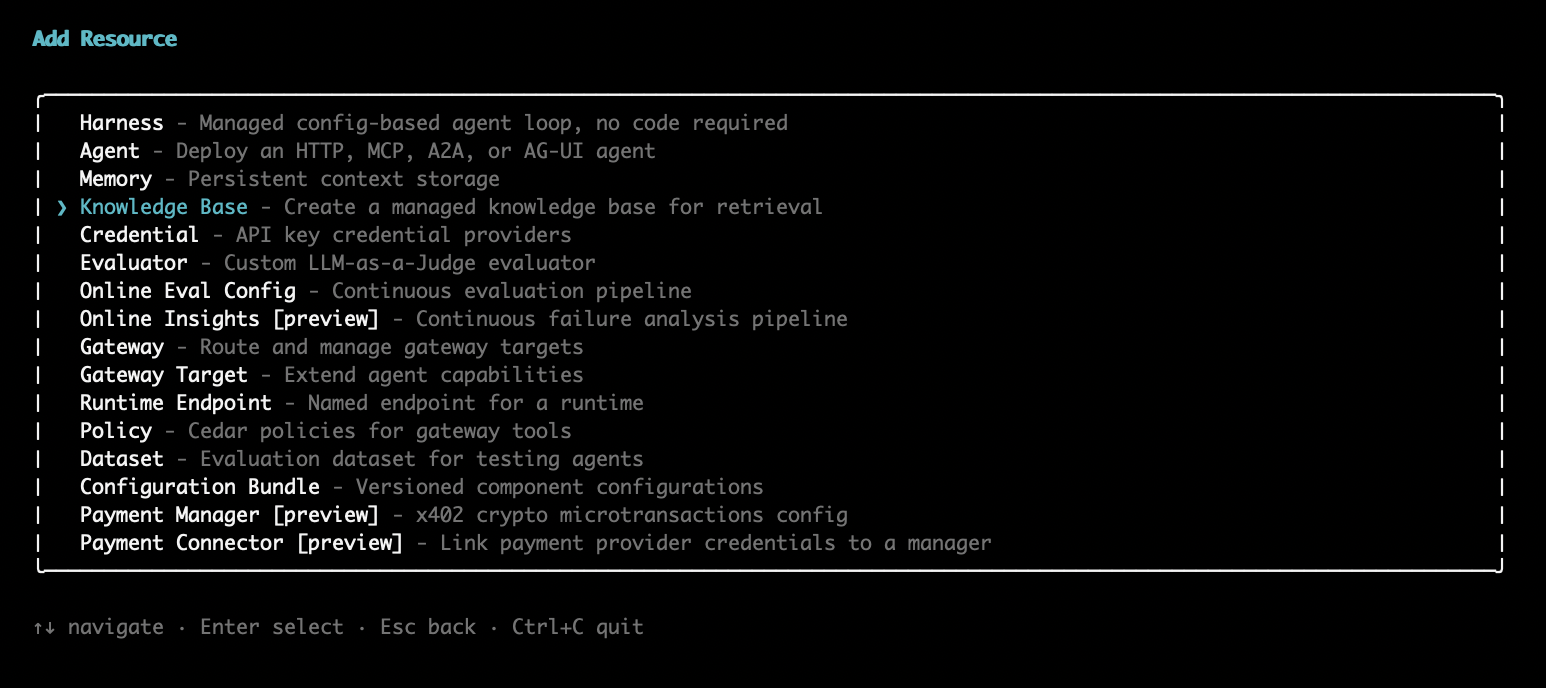

AgentCore CLI

  1. Add a managed knowledge base connector target:

    agentcore add gateway-connector \
  --gateway MyGateway \
  --connector bedrock-knowledge-bases \
  --name MyKnowledgeBaseTarget \
  --knowledge-base <KB_ID>
agentcore deploy

    This shortcut configures only the Retrieve tool. To also configure AgenticRetrieveStream, pass a complete target with agentcore add gateway-connector --gateway MyGateway --connector-configuration file://kb-target.json. In the file, set name, set targetType to connector and connectorId to bedrock-knowledge-bases, and use the same two configurations entries shown in the other tabs: AgenticRetrieveStream with retrievers and agenticRetrieveConfiguration, and Retrieve with knowledgeBaseId.

After you call CreateGatewayTarget, the Gateway validates the configuration asynchronously (typically within about 30 seconds), which includes a GetKnowledgeBase check on each bound knowledge base. Poll GetGatewayTarget until status is READY; a FAILED status includes a reason describing the problem.

To customize agentic retrieval — for example, to cap planning iterations or attach a guardrail — add the optional fields to agenticRetrieveConfiguration. If you omit them, service-managed defaults apply. For all accepted values, see Configuration reference.

{
  "name": "AgenticRetrieveStream",
  "parameterValues": {
    "retrievers": [
      { "configuration": { "knowledgeBase": { "knowledgeBaseId": "<KB_ID>" } } }
    ],
    "agenticRetrieveConfiguration": {
      "maxAgentIteration": 5,
      "policyConfiguration": {
        "guardrailConfiguration": {
          "guardrailId": "<GUARDRAIL_ID>",
          "guardrailVersion": "1"
        }
      }
    }
  }
}

Control which parameters the agent can set

Each tool configuration entry accepts two parameter controls that determine what the calling agent sees and what the Gateway sends to the knowledge base:

  • parameterValues — administrator-set values sent to the knowledge base on every call, such as the bound knowledgeBaseId or a default numberOfResults. These are used unless the agent overrides a field you have exposed.

  • parameterOverrides — a list that controls which request fields the agent can see and set at call time. Each entry has:

    • path — the field in the Retrieve request, for example $.retrievalQuery.text or $.retrievalConfiguration.managedSearchConfiguration.numberOfResults.

    • description — optional text shown to the agent describing the field.

    • visible — set to true to expose the field to the agent, or false to hide it while still sending any administrator-configured default.

Bind knowledgeBaseId in parameterValues and do not expose it.

The following configuration entry binds the knowledge base, sets a default of 10 results, and exposes the query text and result count to the agent:

{
  "name": "Retrieve",
  "description": "Search the knowledge base for relevant documents.",
  "parameterValues": {
    "knowledgeBaseId": "<KB_ID>",
    "retrievalConfiguration": {
      "managedSearchConfiguration": {
        "numberOfResults": 10
      }
    }
  },
  "parameterOverrides": [
    {
      "path": "$.retrievalQuery.text",
      "description": "The search query. Use specific keywords for best results.",
      "visible": true
    },
    {
      "path": "$.retrievalConfiguration.managedSearchConfiguration.numberOfResults",
      "description": "Number of results to retrieve (1-100).",
      "visible": true
    }
  ]
}

Configure the Gateway Service Role

This connector uses the gateway execution role — the IAM role ARN you pass to CreateGateway, which the AgentCore service assumes to call the backend on your behalf. This is a role you create, not a service-linked role. For the Amazon Bedrock Managed Knowledge Bases connector, it needs the following permissions:

  • bedrock:GetKnowledgeBase — to validate the bound knowledge base when the target is created. Scoped to the managed knowledge base resource.

  • bedrock:Retrieve — for the Retrieve tool. Scoped to the managed knowledge base resource.

  • bedrock:AgenticRetrieveStream — for the AgenticRetrieveStream tool. This action is not scoped to a managed knowledge base resource, so grant it on *.

The Gateway signs the backend calls as the bedrock service. Include bedrock:GetKnowledgeBase regardless of which tools you add; if you add only one tool, include only that tool’s retrieval action.

Note

bedrock-agentcore:InvokeGateway is not part of the execution role. That permission belongs to the caller — the agent or application invoking the Gateway — not to the role the Gateway assumes.

Add a policy with the following content to the execution role attached to the Gateway:

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Sid": "ValidateKnowledgeBase",
      "Effect": "Allow",
      "Action": "bedrock:GetKnowledgeBase",
      "Resource": "arn:aws:bedrock:<REGION>:<ACCOUNT_ID>:knowledge-base/<KB_ID>"
    },
    {
      "Sid": "RetrieveFromKnowledgeBase",
      "Effect": "Allow",
      "Action": "bedrock:Retrieve",
      "Resource": "arn:aws:bedrock:<REGION>:<ACCOUNT_ID>:knowledge-base/<KB_ID>"
    },
    {
      "Sid": "AgenticRetrieveStream",
      "Effect": "Allow",
      "Action": "bedrock:AgenticRetrieveStream",
      "Resource": "*"
    }
  ]
}

The service role must also trust the AgentCore service so that it can assume the role. Attach the following trust policy, scoping it to your account and Gateway with the aws:SourceAccount and aws:SourceArn conditions:

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Sid": "AllowAgentCoreToAssumeRole",
      "Effect": "Allow",
      "Principal": {
        "Service": "bedrock-agentcore.amazonaws.com"
      },
      "Action": "sts:AssumeRole",
      "Condition": {
        "StringEquals": {
          "aws:SourceAccount": "<ACCOUNT_ID>"
        },
        "ArnLike": {
          "aws:SourceArn": "arn:aws:bedrock-agentcore:<REGION>:<ACCOUNT_ID>:gateway/*"
        }
      }
    }
  ]
}

You can add a built-in connector as a target to your gateway. The Web Search Tool connector provides managed web search capabilities without requiring custom infrastructure or API keys.

For more information about the Web Search Tool connector, see Web Search Tool.

Set up Web Search Tool

You can optionally pin the target to a specific connector version by including version in the source field. If you omit version, the target uses the connector’s current default version. For more information about connector versions, see Connector versions.

Example
Boto3

  1. The following Python code shows how to create a Gateway Target with the Web Search Tool connector configuration using the Amazon Python SDK (Boto3):

    import boto3

gateway_client = boto3.client("bedrock-agentcore-control", region_name="<REGION>")

gateway_client.create_gateway_target(
    name="web-search-tool",
    gatewayIdentifier="<GATEWAY_ID>",
    targetConfiguration={
        "mcp": {
            "connector": {
                "source": {"connectorId": "web-search", "version": "1.1.0"},
                "configurations": [{"name": "WebSearch", "parameterValues": {}}],
            }
        }
    },
    credentialProviderConfigurations=[
        {"credentialProviderType": "GATEWAY_IAM_ROLE"}
    ],
)
Amazon CLI

  1. The following command creates a Gateway Target with the Web Search Tool connector configuration using the Amazon CLI:

    aws bedrock-agentcore-control create-gateway-target \
  --gateway-identifier "<GATEWAY_ID>" \
  --name "web-search-tool" \
  --target-configuration '{
    "mcp": {
      "connector": {
        "source": {
          "connectorId": "web-search",
          "version": "1.1.0"
        },
        "configurations": [
          {
            "name": "WebSearch",
            "parameterValues": {}
          }
        ]
      }
    }
  }' \
  --credential-provider-configurations '[{"credentialProviderType": "GATEWAY_IAM_ROLE"}]' \
  --region "<REGION>"

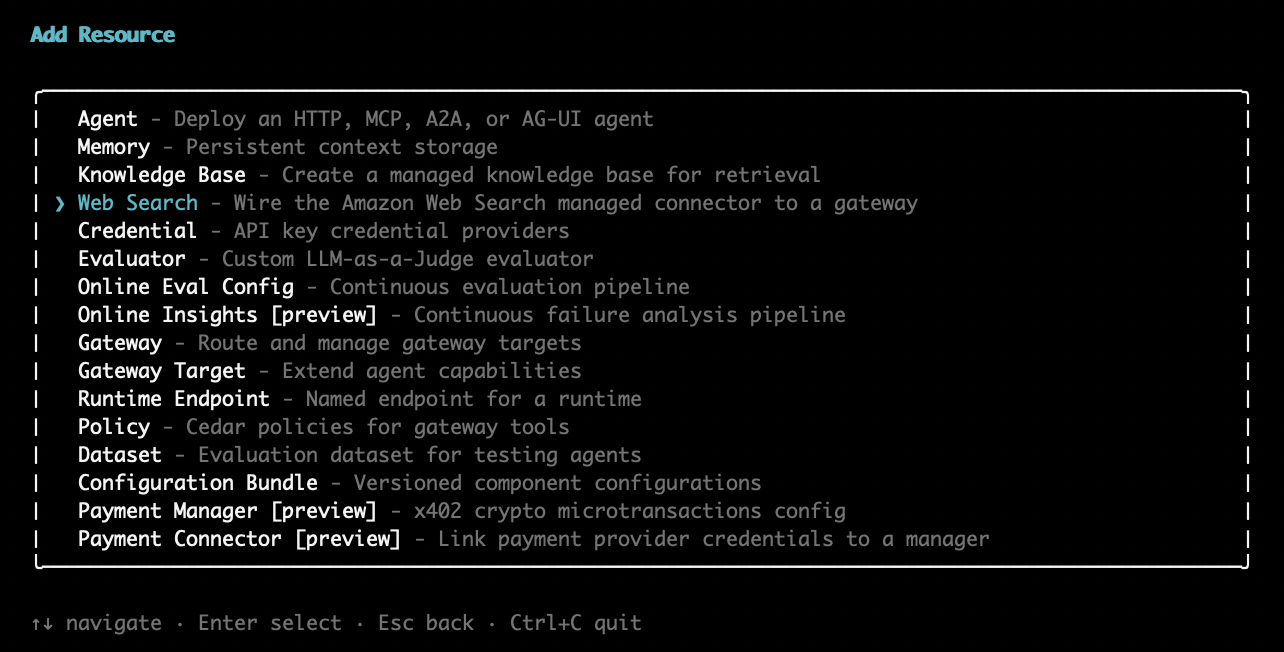

AgentCore CLI

  1. Add a Web Search Tool target:

    agentcore add gateway-connector \
  --gateway MyGateway \
  --connector web-search \
  --name MyWebSearchTarget
agentcore deploy

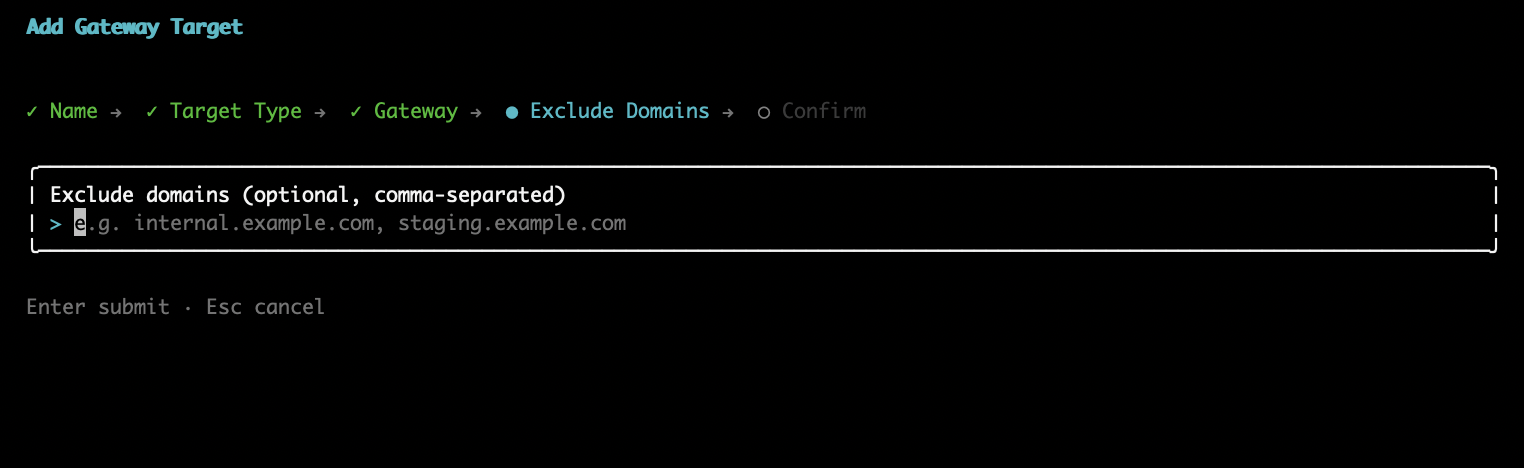

Configure domain filtering

You can restrict which domains the Web Search Tool is allowed to query by configuring a domain include or an exclude list. This is useful for administrators who want to prevent agents from returning results from specific websites.

  • Target-level domain exclude list — A list of domains excluded from all searches on a target, set at target creation using parameterValues.domainFilter.exclude. The exclude list is enforced server-side and hidden from the calling agent.

  • Target-level domain include list (connector version 1.2.0 and later) — In addition to the exclude list, you can configure parameterValues.domainFilter.include to restrict searches to a specific set of domains.

Request-level filters (domain include/exclude and published-date range) are available to the calling agent in connector version 1.2.0 and later. Request-level filters compose with the target-level exclude and include lists: the target-level exclusions and inclusions always apply, and the agent cannot relax them.

The following examples create a Web Search Tool target pinned to version 1.2.0 with both domain include and exclude lists:

Example
Boto3

  1. The following Python code shows how to create a Web Search Tool target with domain filtering using the Amazon Python SDK (Boto3):

    import boto3

gateway_client = boto3.client("bedrock-agentcore-control", region_name="<REGION>")

gateway_client.create_gateway_target(
    name="web-search-tool",
    gatewayIdentifier="<GATEWAY_ID>",
    targetConfiguration={
        "mcp": {
            "connector": {
                "source": {"connectorId": "web-search", "version": "1.2.0"},
                "configurations": [
                    {
                        "name": "WebSearch",
                        "parameterValues": {
                            "domainFilter": {
                                "include": ["allowed-website-1.com", "allowed-website-2.com"],
                                "exclude": ["blocked-website-1.com", "blocked-website-2.com"]
                            }
                        },
                    }
                ],
            }
        }
    },
    credentialProviderConfigurations=[
        {"credentialProviderType": "GATEWAY_IAM_ROLE"}
    ],
)
Amazon CLI

  1. The following command creates a Web Search Tool target with domain filtering using the Amazon CLI:

    aws bedrock-agentcore-control create-gateway-target \
  --gateway-identifier "<GATEWAY_ID>" \
  --name "web-search-tool" \
  --target-configuration '{
    "mcp": {
      "connector": {
        "source": {
          "connectorId": "web-search",
          "version": "1.2.0"
        },
        "configurations": [
          {
            "name": "WebSearch",
            "parameterValues": {
              "domainFilter": {
                "include": ["allowed-website-1.com", "allowed-website-2.com"],
                "exclude": ["blocked-website-1.com", "blocked-website-2.com"]
              }
            }
          }
        ]
      }
    }
  }' \
  --credential-provider-configurations '[{"credentialProviderType": "GATEWAY_IAM_ROLE"}]' \
  --region "<REGION>"
AgentCore CLI

  1. Pass a complete connector configuration to exclude domains:

    agentcore add gateway-connector \
  --gateway MyGateway \
  --connector-configuration '{
    "name": "MyWebSearchTarget",
    "targetType": "connector",
    "connectorId": "web-search",
    "configurations": [
      {
        "name": "WebSearch",
        "parameterValues": {
          "domainFilter": {
            "exclude": [
              "blocked-website-1.com",
              "blocked-website-2.com"
            ]
          }
        }
      }
    ]
  }'
agentcore deploy

You can also update an existing target to add or modify domain filtering using UpdateGatewayTarget.

Configure the Gateway Service Role

The Gateway needs a service role that allows the AgentCore service to perform actions on your behalf. For the Web Search Tool, the role needs the following permissions:

  • bedrock-agentcore:InvokeGateway — to invoke the Gateway

  • bedrock-agentcore:InvokeWebSearch — to authorize web search invocations, checked per-request against the service-owned ARN arn:aws:bedrock-agentcore:<region>:aws:tool/web-search.v1

Add a policy with the following content to the service role attached to the Gateway:

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Sid": "InvokeGateway",
      "Effect": "Allow",
      "Action": "bedrock-agentcore:InvokeGateway",
      "Resource": "arn:aws:bedrock-agentcore:<REGION>:<ACCOUNT_ID>:gateway/*"
    },
    {
      "Sid": "InvokeWebSearch",
      "Effect": "Allow",
      "Action": "bedrock-agentcore:InvokeWebSearch",
      "Resource": "arn:aws:bedrock-agentcore:<REGION>:aws:tool/web-search.v1"
    }
  ]
}

Add a Connector target with Web Answer

You can add a built-in connector as a target to your gateway. With the Web Answer connector, your agent can ask a question and get a synthesized answer with citations to web sources, without custom infrastructure, model endpoints, or API keys.

For more information about the Web Answer connector, see Web Answer.

Set up Web Answer

Web Answer is available in US East (N. Virginia) us-east-1. Create the gateway in that Region.

Web Answer uses the connector’s current default version. For more information about connector versions, see Connector versions.

In the following examples, replace <GATEWAY_ID> with the identifier of your gateway.

Example
Boto3

  1. The following Python code shows how to create a Gateway Target with the Web Answer connector configuration using the Amazon Python SDK (Boto3):

    import boto3

gateway_client = boto3.client("bedrock-agentcore-control", region_name="us-east-1")

gateway_client.create_gateway_target(
    name="web-answer-tool",
    gatewayIdentifier="<GATEWAY_ID>",
    targetConfiguration={
        "mcp": {
            "connector": {
                "source": {"connectorId": "web-answer"},
                "configurations": [{"name": "WebAnswer", "parameterValues": {}}],
            }
        }
    },
    credentialProviderConfigurations=[
        {"credentialProviderType": "GATEWAY_IAM_ROLE"}
    ],
)
Amazon CLI

  1. The following command creates a Gateway Target with the Web Answer connector configuration using the Amazon CLI:

    aws bedrock-agentcore-control create-gateway-target \
  --gateway-identifier "<GATEWAY_ID>" \
  --name "web-answer-tool" \
  --target-configuration '{
    "mcp": {
      "connector": {
        "source": {
          "connectorId": "web-answer"
        },
        "configurations": [
          {
            "name": "WebAnswer",
            "parameterValues": {}
          }
        ]
      }
    }
  }' \
  --credential-provider-configurations '[{"credentialProviderType": "GATEWAY_IAM_ROLE"}]' \
  --region "us-east-1"

Wait until GetGatewayTarget reports the target status as READY before you call the tool. The tool appears in tools/list as <target-name>_WebAnswer_WebAnswer.

Configure domain filtering

In connector version 1.1.0 and later, you can restrict the domains that Web Answer uses as sources:

  • Target-level domain exclude list – parameterValues.domainFilter.exclude, up to 50 domains. Web Answer doesn’t use sources from these domains for any request on the target.

  • Target-level domain include list – parameterValues.domainFilter.include, up to 50 domains. Web Answer uses only sources from these domains.

Web Answer enforces both lists server-side, and your agent can’t see them. Request-level filters from your agent compose with these lists, and your agent can’t relax them. For the merge rules, see Configure domain filtering on the Web Answer page.

The following examples create a Web Answer target with both domain include and exclude lists. Replace <GATEWAY_ID> with the identifier of your gateway, and replace the example domains with your own.

Example
Boto3

  1. The following Python code shows how to create a Web Answer target with domain filtering using the Amazon Python SDK (Boto3):

    import boto3

gateway_client = boto3.client("bedrock-agentcore-control", region_name="us-east-1")

gateway_client.create_gateway_target(
    name="web-answer-tool",
    gatewayIdentifier="<GATEWAY_ID>",
    targetConfiguration={
        "mcp": {
            "connector": {
                "source": {"connectorId": "web-answer"},
                "configurations": [
                    {
                        "name": "WebAnswer",
                        "parameterValues": {
                            "domainFilter": {
                                "include": ["example.com", "example.net"],
                                "exclude": ["blocked.example.com"]
                            }
                        },
                    }
                ],
            }
        }
    },
    credentialProviderConfigurations=[
        {"credentialProviderType": "GATEWAY_IAM_ROLE"}
    ],
)
Amazon CLI

  1. The following command creates a Web Answer target with domain filtering using the Amazon CLI:

    aws bedrock-agentcore-control create-gateway-target \
  --gateway-identifier "<GATEWAY_ID>" \
  --name "web-answer-tool" \
  --target-configuration '{
    "mcp": {
      "connector": {
        "source": {
          "connectorId": "web-answer"
        },
        "configurations": [
          {
            "name": "WebAnswer",
            "parameterValues": {
              "domainFilter": {
                "include": ["example.com", "example.net"],
                "exclude": ["blocked.example.com"]
              }
            }
          }
        ]
      }
    }
  }' \
  --credential-provider-configurations '[{"credentialProviderType": "GATEWAY_IAM_ROLE"}]' \
  --region "us-east-1"

You can also update an existing target to add or modify domain filtering using UpdateGatewayTarget.

Configure the Gateway Service Role

The Gateway needs a service role that allows the AgentCore service to perform actions on your behalf. For Web Answer, the role needs the following permissions:

  • bedrock-agentcore:InvokeGateway — to invoke the Gateway

  • bedrock-agentcore:InvokeWebAnswer — to authorize Web Answer invocations, checked per-request against the service-owned ARN arn:aws:bedrock-agentcore:<region>:aws:tool/web-answer.v1

The role doesn’t need bedrock:InvokeModel. Web Answer runs its own model, and your agent’s model runs under your agent’s identity.

The following policy grants the permissions that Web Answer requires. Add it to the service role attached to the Gateway, and replace <ACCOUNT_ID> with your Amazon account ID:

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Sid": "InvokeGateway",
      "Effect": "Allow",
      "Action": "bedrock-agentcore:InvokeGateway",
      "Resource": "arn:aws:bedrock-agentcore:us-east-1:<ACCOUNT_ID>:gateway/*"
    },
    {
      "Sid": "InvokeWebAnswer",
      "Effect": "Allow",
      "Action": "bedrock-agentcore:InvokeWebAnswer",
      "Resource": "arn:aws:bedrock-agentcore:us-east-1:aws:tool/web-answer.v1"
    }
  ]
}

Add a Connector target with Amazon Step Functions

You can add a built-in connector as a target to your gateway. With the Step Functions connector, agents can start, monitor, and stop state machine executions and complete task-token callbacks without any integration code.

For more information about the Step Functions connector, see Amazon Step Functions as Connector Target.

Set up a Step Functions target

In configurations, list each operation you want to expose as a tool. For the four operations that act on a state machine — StartExecution, StartSyncExecution, ListExecutions, and DescribeStateMachine — set parameterValues.stateMachineArn to pin the state machine. Always set this pin. An entry without parameterValues can pass target creation, but its tool fails on every call. The remaining operations take an execution Amazon Resource Name (ARN) or a task token from the agent and have no parameterValues.

You can optionally pin the target to a specific connector version by including version in the source field. If you omit version, the target uses the connector’s current default version. For more information about connector versions, see Connector versions.

The following examples expose a Standard state machine for starting and inspecting executions, and the execution-level operations the agent needs to follow up. In the examples, replace the following values:

<ACCOUNT_ID>

The Amazon account ID that owns the state machine.

<GATEWAY_ID>

The identifier of your gateway.

<REGION>

The Amazon Region of your gateway.

Example
Boto3

  1. The following Python code shows how to create a Gateway Target with the Step Functions connector configuration using the Amazon Python SDK (Boto3):

    import boto3

gateway_client = boto3.client("bedrock-agentcore-control", region_name="<REGION>")

state_machine_arn = "arn:aws:states:<REGION>:<ACCOUNT_ID>:stateMachine:OrderWorkflow"

gateway_client.create_gateway_target(
    name="orders",
    gatewayIdentifier="<GATEWAY_ID>",
    targetConfiguration={
        "mcp": {
            "connector": {
                "source": {"connectorId": "states", "version": "1.0.0"},
                "configurations": [
                    {"name": "StartExecution", "parameterValues": {"stateMachineArn": state_machine_arn}},
                    {"name": "ListExecutions", "parameterValues": {"stateMachineArn": state_machine_arn}},
                    {"name": "DescribeStateMachine", "parameterValues": {"stateMachineArn": state_machine_arn}},
                    {"name": "DescribeExecution"},
                    {"name": "GetExecutionHistory"},
                    {"name": "StopExecution"},
                ],
            }
        }
    },
    credentialProviderConfigurations=[
        {"credentialProviderType": "GATEWAY_IAM_ROLE"}
    ],
)
Amazon CLI

  1. The following command creates a Gateway Target with the Step Functions connector configuration using the Amazon CLI:

    aws bedrock-agentcore-control create-gateway-target \
  --gateway-identifier "<GATEWAY_ID>" \
  --name "orders" \
  --target-configuration '{
    "mcp": {
      "connector": {
        "source": {
          "connectorId": "states",
          "version": "1.0.0"
        },
        "configurations": [
          {
            "name": "StartExecution",
            "parameterValues": {
              "stateMachineArn": "arn:aws:states:<REGION>:<ACCOUNT_ID>:stateMachine:OrderWorkflow"
            }
          },
          {
            "name": "ListExecutions",
            "parameterValues": {
              "stateMachineArn": "arn:aws:states:<REGION>:<ACCOUNT_ID>:stateMachine:OrderWorkflow"
            }
          },
          {
            "name": "DescribeStateMachine",
            "parameterValues": {
              "stateMachineArn": "arn:aws:states:<REGION>:<ACCOUNT_ID>:stateMachine:OrderWorkflow"
            }
          },
          { "name": "DescribeExecution" },
          { "name": "GetExecutionHistory" },
          { "name": "StopExecution" }
        ]
      }
    }
  }' \
  --credential-provider-configurations '[{"credentialProviderType": "GATEWAY_IAM_ROLE"}]' \
  --region "<REGION>"
AgentCore CLI

  1. To add a Step Functions target, run agentcore add gateway-target with --type connector --connector states:

    agentcore add gateway-target \
  --name orders \
  --type connector \
  --connector states \
  --gateway MyGateway
agentcore deploy

After the target reaches READY, call tools/list on the Gateway. The pinned stateMachineArn doesn’t appear in any tool schema. For example, orders___StartExecution advertises only input.

You can add an Express state machine to the same target for synchronous calls. Add a StartSyncExecution entry pinned to the Express state machine’s ARN. You set pins for each operation, so one target can mix Standard and Express state machines. For which operations work with each workflow type, see Standard and Express workflows.

To expose the task-token operations, add SendTaskSuccess, SendTaskFailure, and SendTaskHeartbeat entries without parameterValues. These operations aren’t scoped to a state machine. Add them once for each gateway, on a separate target, instead of on every target.

To change the pinned state machines or the exposed operations later, call UpdateGatewayTarget with the new configurations list. Existing targets also pick up updated tool descriptions and schemas when you update them.

Configure the Gateway Service Role

The Gateway needs a service role that allows the AgentCore service to call Step Functions on your behalf. Scope the role to the state machines you expose. The policy needs three statements because the Step Functions resource types differ:

  • State-machine operations (StartExecution, StartSyncExecution, ListExecutions, DescribeStateMachine) are authorized on the state machine ARN.

  • Execution operations (DescribeExecution, StopExecution, GetExecutionHistory) are authorized on the execution ARN, which is a separate resource type. These operations work only with Standard executions.

  • Task-token operations (SendTaskSuccess, SendTaskFailure, SendTaskHeartbeat) have no resource-level permissions in IAM and must be granted on "*".

Each statement in the following policy uses the minimal scope that IAM supports for its operations, following least-privilege guidance:

  • The execution ARN ends in a * wildcard because Step Functions generates execution names when each execution starts, so you can’t list them in advance. The wildcard covers only executions of OrderWorkflow, not executions of other state machines.

  • The task-token operations are granted on "*" because IAM doesn’t support resource-level permissions for these actions. A caller also needs a valid task token from one of your executions.

The following JSON policy grants the permissions for all ten connector operations. Attach it to the Gateway’s service role:

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Sid": "StateMachineOperations",
      "Effect": "Allow",
      "Action": [
        "states:StartExecution",
        "states:StartSyncExecution",
        "states:ListExecutions",
        "states:DescribeStateMachine"
      ],
      "Resource": [
        "arn:aws:states:<REGION>:<ACCOUNT_ID>:stateMachine:OrderWorkflow",
        "arn:aws:states:<REGION>:<ACCOUNT_ID>:stateMachine:OrderLookupExpress"
      ]
    },
    {
      "Sid": "ExecutionOperations",
      "Effect": "Allow",
      "Action": [
        "states:DescribeExecution",
        "states:StopExecution",
        "states:GetExecutionHistory"
      ],
      "Resource": [
        "arn:aws:states:<REGION>:<ACCOUNT_ID>:execution:OrderWorkflow:*"
      ]
    },
    {
      "Sid": "TaskTokenOperations",
      "Effect": "Allow",
      "Action": [
        "states:SendTaskSuccess",
        "states:SendTaskFailure",
        "states:SendTaskHeartbeat"
      ],
      "Resource": "*"
    }
  ]
}

In the policy, replace the following values:

<ACCOUNT_ID>

The Amazon account ID that owns the state machines.

OrderLookupExpress

The name of your Express state machine. If you don’t expose an Express state machine, remove its ARN from the policy.

OrderWorkflow

The name of your Standard state machine.

<REGION>

The Amazon Region of your gateway and state machines.

Only the four state-machine operations can be pinned on the target. For the other six, this policy is the only boundary on which executions the agent can inspect, stop, or complete. Don’t grant states:* on Resource: "*". If different workflows need different IAM boundaries, use separate Gateways, because all targets on a Gateway share its service role.

The service role’s trust policy must allow the bedrock-agentcore.amazonaws.com service principal to assume it, as for any Gateway service role. For more information, see Trust permissions.
