Create an AgentCore gateway using the CLI

You can use the AgentCore CLI to add a gateway to the current project. The CLI creates a gateway service role when you don’t provide one. Set the inbound authorization with --authorizer-type.

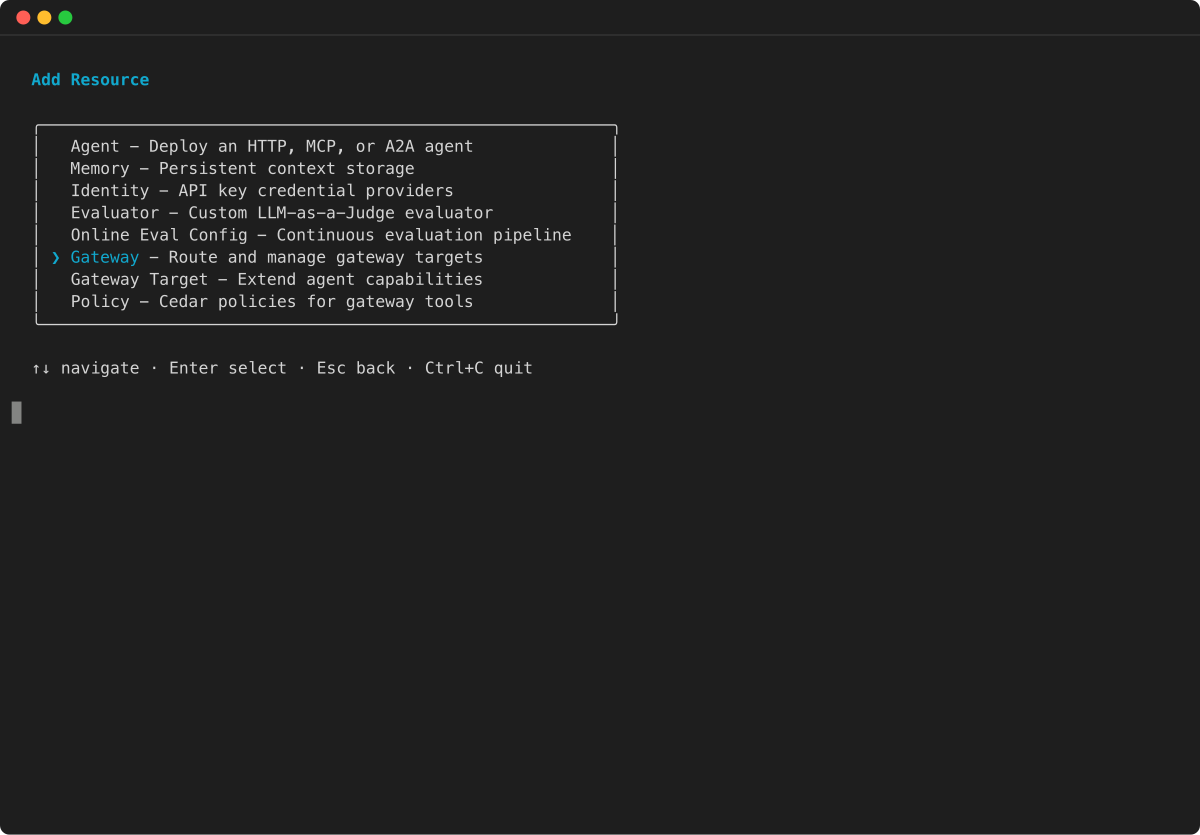

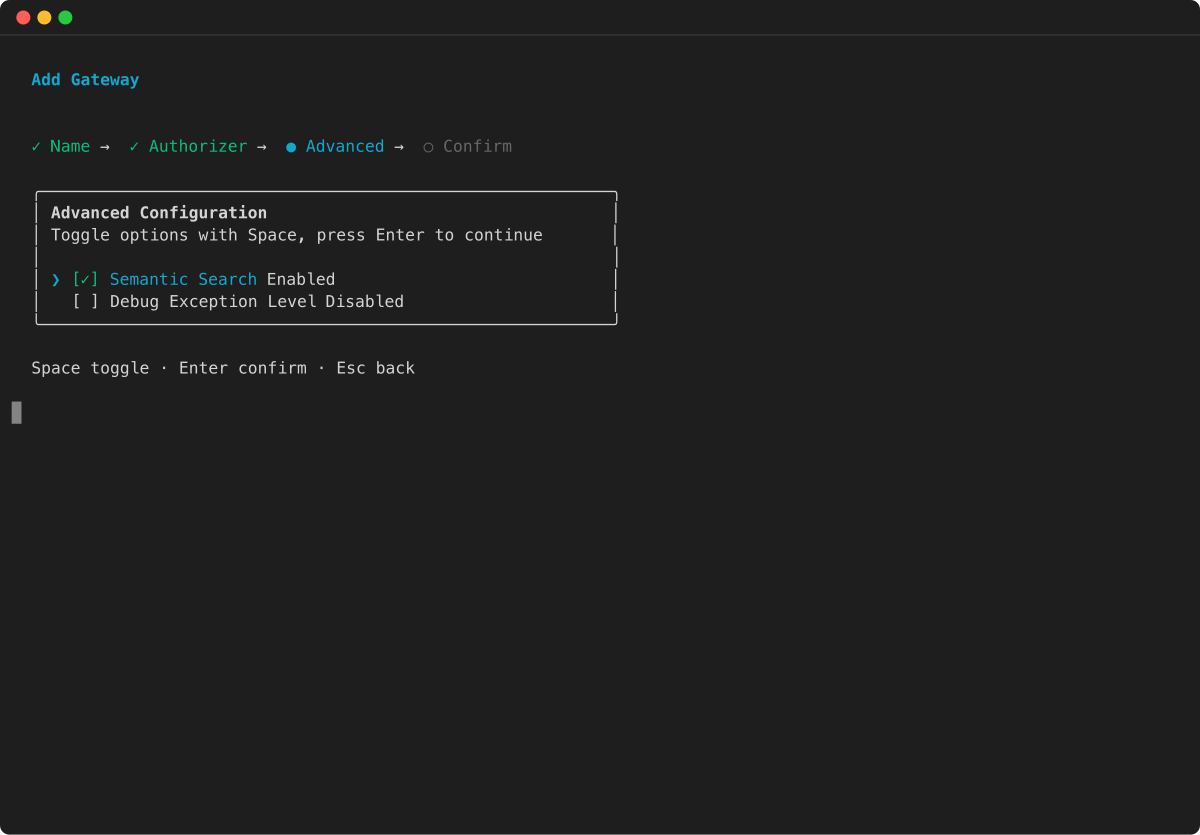

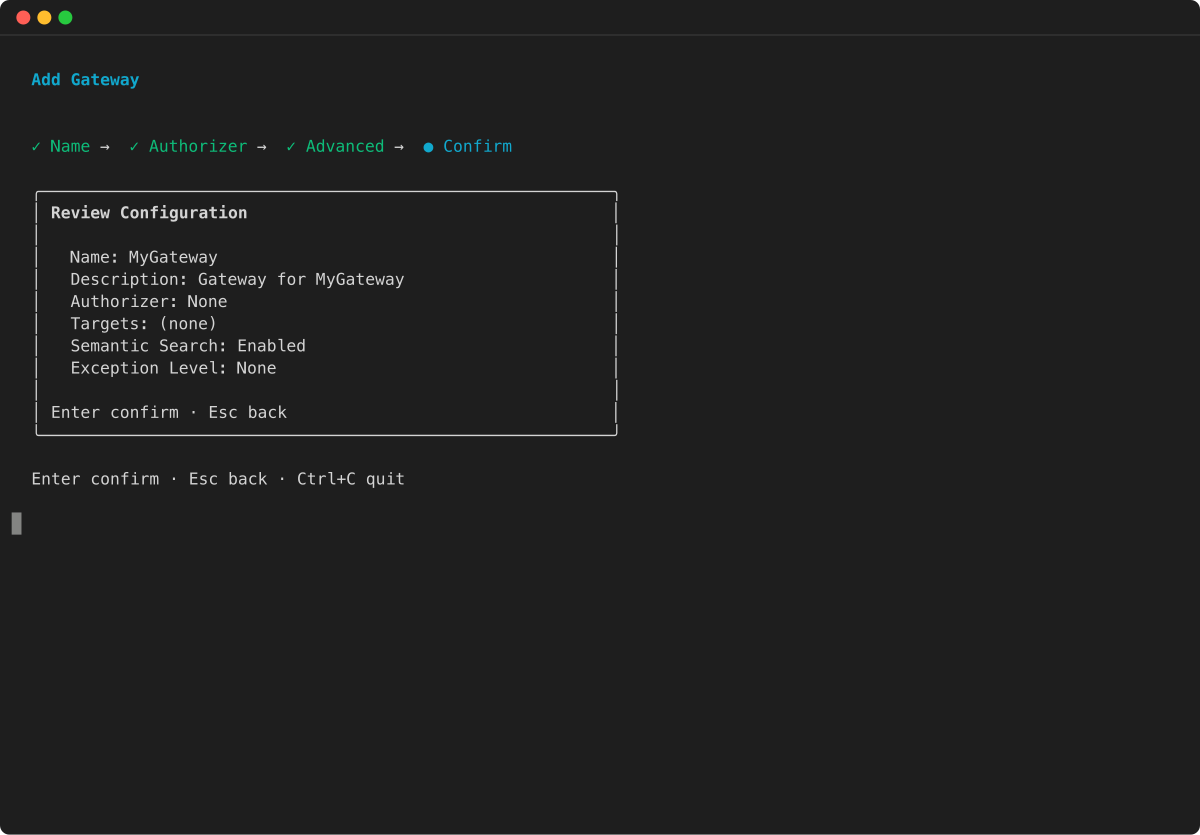

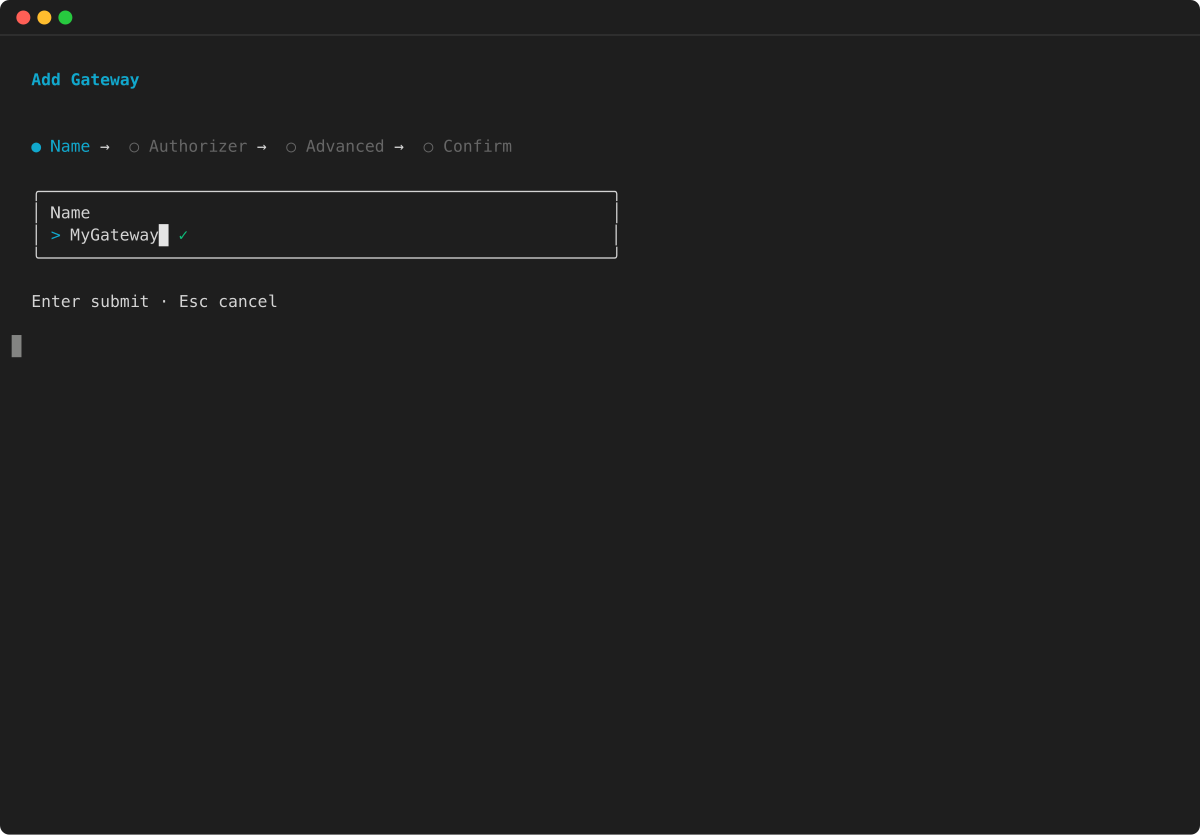

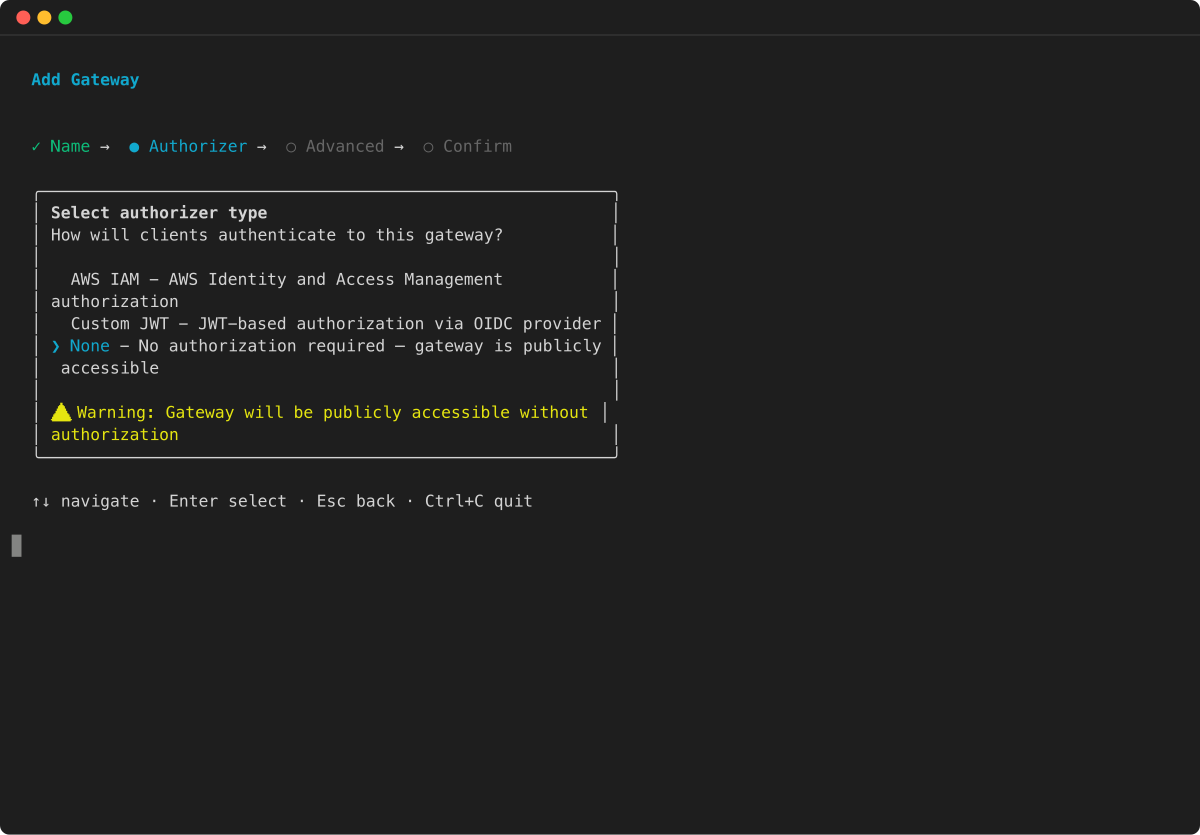

To use the interactive wizard, run agentcore add gateway with no options. Enter the gateway name, choose NONE, AWS_IAM, or CUSTOM_JWT (for CUSTOM_JWT, enter the discovery URL and allowed client IDs), choose whether to turn on semantic search, and confirm.

Create a gateway without authorization:

agentcore add gateway \
  --name MyGateway \
  --authorizer-type NONE
agentcore deploy

Add a project Runtime as an HTTP target. Runtime targets need a gateway created without --protocol-type MCP. This example assumes that the project has a Runtime named MyAgent, for example one added with agentcore add runtime --name MyAgent --language python --protocol HTTP:

agentcore add gateway-target \
  --gateway MyGateway \
  --name MyAgentTarget \
  --runtime MyAgent

Create a gateway with JWT authorization:

agentcore add gateway \
  --name MyJwtGateway \
  --authorizer-type CUSTOM_JWT \
  --authorizer-configuration '{
    "customJwtAuthorizer": {
      "discoveryUrl": "https://your-idp.example.com/.well-known/openid-configuration",
      "allowedAudience": ["your-audience"]
    }
  }'
agentcore deploy

Semantic search is disabled by default. To enable it for an MCP gateway, use both --protocol-type MCP and --enable-semantic-search. An MCP gateway accepts only MCP targets, so you can’t add a --runtime target to it:

agentcore add gateway \
  --name MyMcpGateway \
  --protocol-type MCP \
  --enable-semantic-search
agentcore deploy

After creating the gateway, add targets using agentcore add gateway-target or agentcore add gateway-connector. For more information, see the Get started with AgentCore Gateway.
