View aggregated data about cluster resources with the EKS Dashboard

What is the Amazon EKS Dashboard?

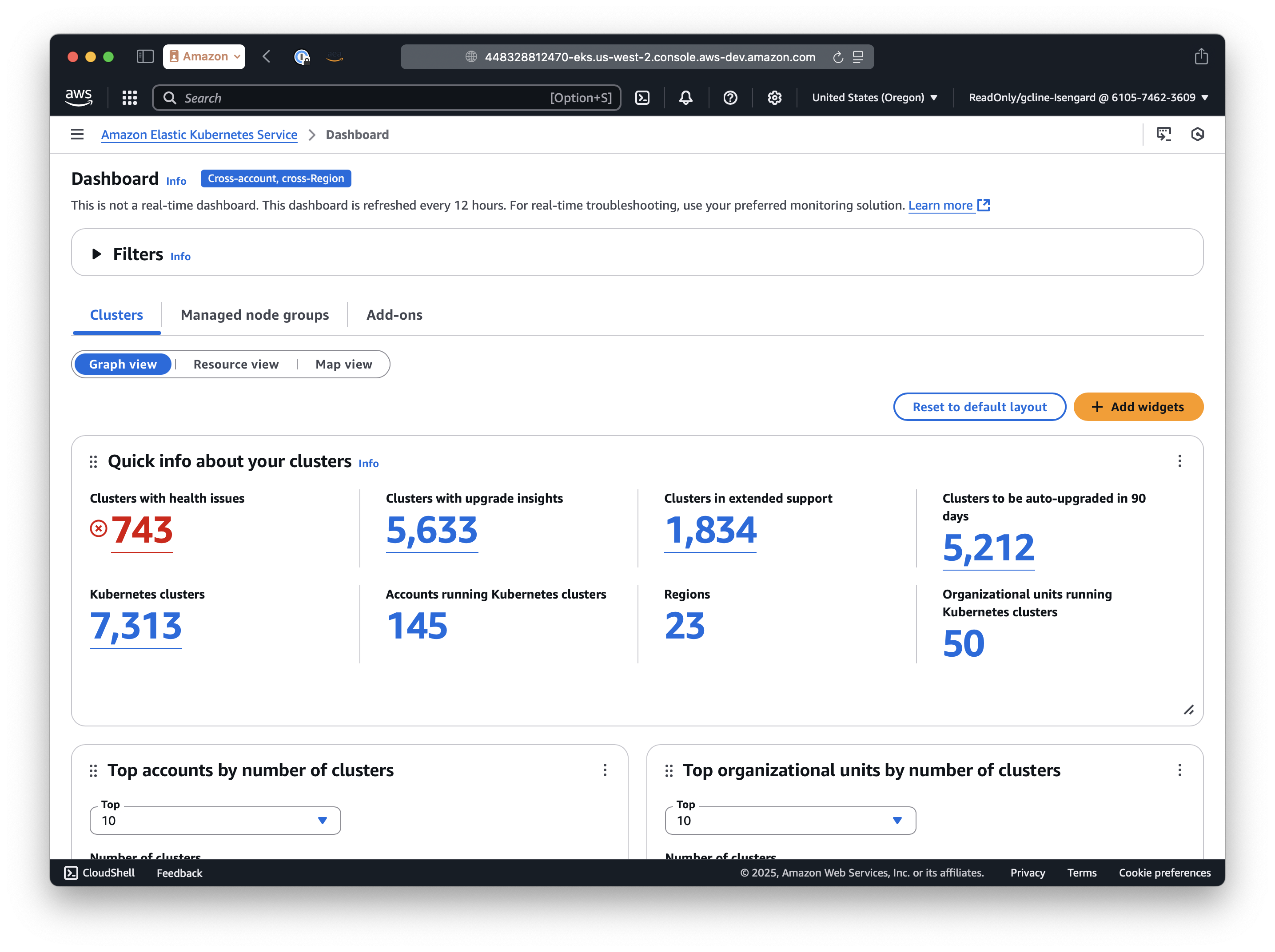

The Amazon EKS Dashboard provides consolidated visibility into your Kubernetes clusters across multiple Amazon Regions and Amazon Accounts. With this dashboard, you can:

  • Track clusters scheduled for end-of-support auto-upgrades within the next 90 days.

  • Project EKS control plane costs for clusters in extended support.

  • Review clusters with insights that need attention before upgrading.

  • Identify managed node groups running specific AMI versions.

  • Monitor cluster support type distribution (standard compared to extended support).

The EKS dashboard integrates with EKS Cluster Insights to surface issues with your clusters, such as use of deprecated Kubernetes APIs. For more information, see Prepare for Kubernetes version upgrades and troubleshoot misconfigurations with cluster insights.

Note

The EKS Dashboard is not real-time and updates every 12 hours. For real-time cluster monitoring, see Monitor your cluster performance and view logs

How does the dashboard use Amazon Organizations?

The Amazon EKS dashboard requires Amazon Organizations integration for functionality. It leverages Amazon Organizations to securely gather cluster information across accounts. This integration provides centralized management and governance as your Amazon infrastructure scales.

If Amazon Organizations isn’t enabled for your infrastructure, see the Amazon Organizations User Guide for setup instructions.

Cross-region and cross-account access

The EKS Dashboard can see cluster resources in any account that is a member of the Amazon organization. To generate a list of Amazon accounts in your organization, see Export details for all accounts in an organization.

The us-east-1 Amazon region generates the dashboard. You must log in to this region to see the dashboard. The dashboard aggregates data across Amazon regions, but this does not include GovCloud or China regions.

Key terms

  • Amazon Organization: A unified management structure for multiple Amazon accounts.

  • Management account: The primary account that controls the Amazon Organization.

  • Member account: Any account within the organization except the management account.

  • Delegated administrator: A member account granted specific cross-account administrative permissions. Within the management account, you can select one delegated administrator account per Amazon Service.

  • Trusted access: Authorization for the EKS Dashboard to access cluster information across organizational accounts.

  • Service-Linked Role (SLRs): A unique type of IAM role directly linked to an Amazon service. The EKS Dashboard uses a SLR to read information about your accounts and organizations.

  • For more information, see Terminology and concepts in the Amazon Organizations User Guide.

General overview

  1. Access the management account of your Amazon Organization.

    • The steps to access the management account depend on how you have configured your Amazon Organization. For example, you might access the management account via Amazon Identity Center or Okta.

  2. Enable Trusted access through the EKS Console.

  3. Assign a Delegated administrator using their Amazon Account ID.

  4. Switch to the Delegated administrator account.

  5. Access the enhanced EKS Console with organization-wide visibility.

Enable the EKS Dashboard using the Amazon console

Important

You must be logged in to the Management Account of your Amazon Organization to enable the EKS Dashboard.

Access EKS Dashboard settings

  1. Confirm the following:

    1. You have Amazon Organizations enabled and configured.

    2. You are logged into the Management account of the organization.

    3. You are viewing the Amazon Management Console in the us-east-1 region.

  2. Navigate to the EKS console.

  3. In the left sidebar, open Dashboard Settings.

Set up access to the Amazon EKS Dashboard

  1. Find the Amazon Account ID of the Amazon Account you want to allow to view the EKS Dashboard.

    1. This step is optional, but suggested. If you don’t, you can only access the dashboard from the management account. As a best practice, you should limit access to the management account.

  2. Click Enable trusted access.

    1. You can now view the dashboard from the management account.

  3. Click Register delegated administrator and input the Account ID of the Amazon Account you will use to view the dashboard.

    1. You can now view the dashboard from the delegated administrator account or the management account.

For information about permissions required to enable the dashboard, see Minimum IAM policies required.

View the EKS dashboard

  1. Log in to the delegated administrator account (suggested) or the management account.

  2. Log in to the us-east-1 region.

  3. Go to the EKS service, and select Dashboard from the left sidebar.

Note

Review the IAM permissions required to view the EKS dashboard.

Configure the dashboard

You can configure the view of the dashboard, and filter resources.

Available resources

  • Clusters: View aggregated information about the status and location of EKS Clusters.

    • Clusters with health issues.

    • Clusters on EKS Extended Support.

    • Breakdown of clusters by Kubernetes version.

  • Managed node groups: Review Managed node groups and EC2 Instances.

    • Node groups by AMI type, such as Amazon Linux or Bottlerocket.

    • Node group health issues.

    • Instance type distribution.

  • Add-ons: Learn about what Amazon EKS Add-ons you have installed, and their status.

    • Number of installations per add-on.

    • Add-ons with health issues.

    • Version distribution per add-on.

Available views

  • Graph view

    • A customizable widget view displaying graphs and visualizations of the selected resource.

    • Changes to the Graph view, such as removing a widget, are visible to all users of the EKS Dashboard.

  • Resource view

    • A list view of the selected resource, supporting filters.

  • Map View

    • View the geographic distribution of the selected resource.

Filter the EKS dashboard

You can filter the EKS Dashboard by:

  • Amazon Account

  • Organizational unit, defined by Amazon Organizations

  • Amazon Region

Disable the EKS dashboard using the Amazon console

  1. Confirm the following:

    1. You have Amazon Organizations enabled and configured.

    2. You are logged into the Management account of the organization.

    3. You are viewing the Amazon Management Console in the us-east-1 region.

  2. Navigate to the EKS console.

  3. In the left sidebar, open Dashboard Settings.

  4. Click Disable trusted access.

Troubleshoot the EKS dashboard

Issue enabling EKS dashboard

  • You must be logged in to the management account of an Amazon Organization.

    • If you do not have an Amazon Organization, create one. Learn how to Create and configure an organization.

    • If your Amazon account is already a member of an Amazon Organization, identify the administrator of the organization.

  • You must be logged in to the Amazon account with sufficient IAM permissions to create and update Amazon Organizations resources.

Issue viewing the EKS dashboard

  • You must be logged in to one of the following Amazon accounts:

    • The management account of the Amazon Organization

    • A delegated administrator account, identified in the EKS dashboard settings of the management account.

  • If you’ve recently enabled the EKS Dashboard, please note that initial data population may take up to 12 hours.

Dashboard widgets move unexpectedly

  • The EKS Dashboard saves the configurable widget view at the Amazon Account level. If you change the widget view, other people using the same Amazon account will see the changes.
