FileMatch

The FileMatch rule allows you to compare files against other files or checksums. This can be useful in a few scenarios:

  1. Validating files received from external sources: You can use FileMatch to ensure that you have received the correct files from external sources by comparing against checksums. This helps validate the integrity of the data you're ingesting.

  2. Comparing data in two different folders: FileMatch can be used to compare files between two folders.

Note that unlike other rules, FileMatch does not gather any data statistics.

Validate file with a checksum:

FileMatch accepts a file and a set checksums to ensure that at least one checksums match the file.

FileMatch "s3://bucket/file.json" in ["3ee0d8617ac041793154713e5ef8f319"] with hashAlgorithm = "MD5"
FileMatch "s3://bucket/file.json" in ["3ee0d8617ac041793154713e5ef8f319"] with hashAlgorithm = "SHA-1"
FileMatch "s3://bucket/file.json" in ["3ee0d8617ac041793154713e5ef8f319"] with hashAlgorithm = "SHA-256"
FileMatch "s3://bucket/file.json" in ["3ee0d8617ac041793154713e5ef8f319"]

The following standard algorithms are supported:

  • MD5

  • SHA-1

  • SHA-256

If you do not supply an algorithm, the default is SHA-256.

Validate all files in a folder with set of checksum:

FileMatch "s3://bucket/" in ["3ee0d8617ac041793154713e5ef8f319", "7e8617ac041793154713e5ef8f319"] with hashAlgorithm = "MD5"
FileMatch "s3://bucket/internal-folder/" in ["3ee0d8617ac041793154713e5ef8f319", "7e8617ac041793154713e5ef8f319"]

Compare files in different folders

FileMatch "s3://original_bucket/" "s3://archive_bucket/"
FileMatch "s3://original_bucket/internal-folder/" "s3://original_bucket/other-folder/"

FileMatch will check the contents of the files in original_bucket and ensure they match what’s in archive_bucket. The rule will fail if they don’t exactly match. It also can check the contents of internal folders or individual files.

FileMatch can also check individual files against each other.

FileMatch "s3://bucket/file_old.json" "s3://bucket/file_new.json"

Inferring file names directly from data frames

You don't always have to provide a file path. For instance, when you are authoring the rule in the Amazon Glue Data Catalog (backed by Amazon S3), it may be hard to find which folders the catalog tables are using. Amazon Glue Data Quality can find the specific folders or files used to populate your data frame.

FileMatch in ["3ee0d8617ac041793154713e5ef8f319"] with hashAlgorithm = "MD5"
FileMatch in ["3ee0d8617ac041793154713e5ef8f319"] with hashAlgorithm = "SHA-1"
FileMatch in ["3ee0d8617ac041793154713e5ef8f319"] with hashAlgorithm = "SHA-256"
FileMatch in ["3ee0d8617ac041793154713e5ef8f319"]

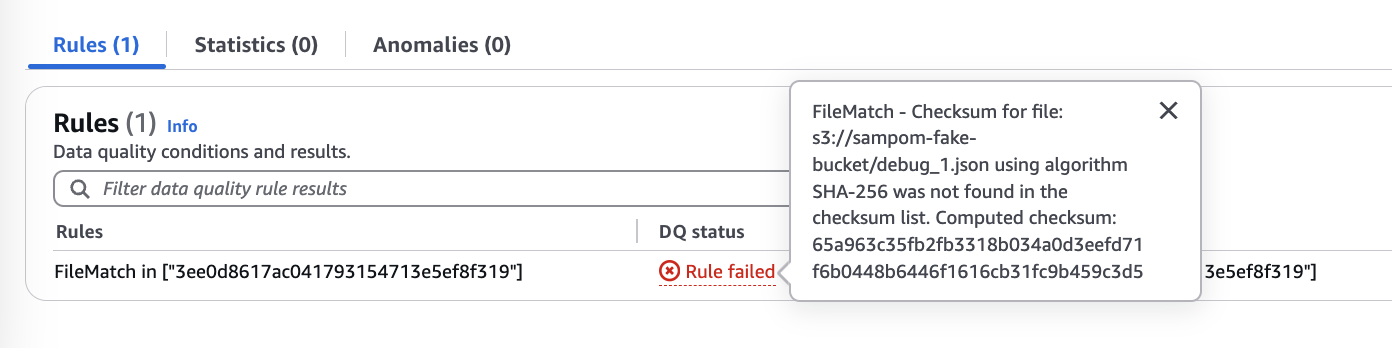

If the supplied checksum is different than what’s computed, FileMatch will alert you to the difference.

The screenshot shows a rule with the DQ status of Rule failed. FileMatch explains the failure.

There are a few considerations:

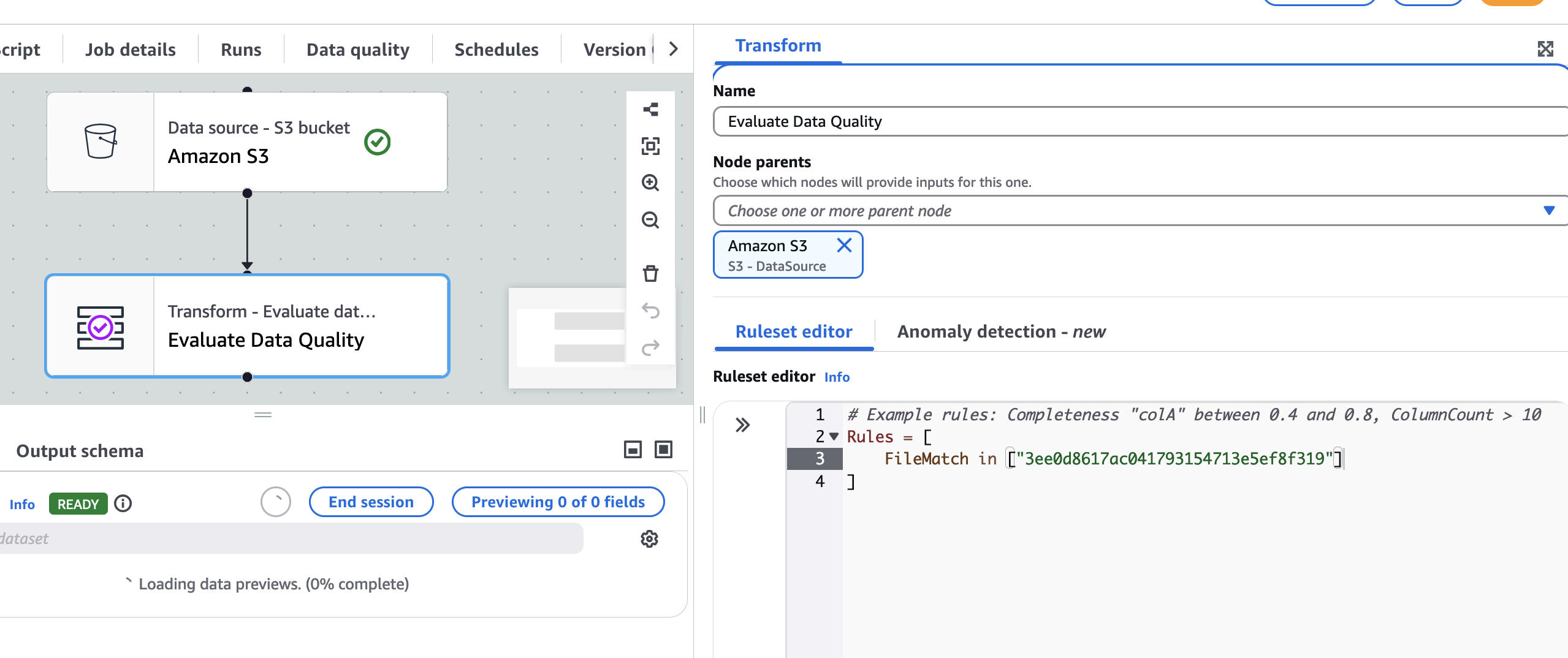

  1. In Amazon Glue ETL, you must have the EvaluateDataQuality Transform immediately after an Amazon S3 or Amazon Glue Data Catalog transform.

    The screenshot shows a rule with the DQ status of Rule failed. FileMatch explains the failure.

  2. This rule will not work in Amazon Glue Interactive Sessions.
