Import metadata examples

This section shows how to create metadata files to import asset models and assets with a single bulk import operation.

Example of a bulk import

You can import many asset models and assets with a single bulk import operation. The following example shows how to create a metadata file to do this.

In this example scenario, you have various work sites that contain industrial robots in work cells.

The example defines two asset models:

  • RobotModel1: This asset model represents a particular type of robot that you have in your work sites. The robot has a measurement property, Temperature.

  • WorkCell: This asset model represents a collection of robots within one of your work sites. The asset model defines a hierarchy, robotHierarchyOEM1, to represent the relationship that a work cell contains robots.

The example also defines some assets:

  • WorkCell1: a work cell within your Boston site

  • RobotArm123456: a robot within that work cell

  • RobotArm987654: another robot within that work cell

The following JSON metadata file defines these asset models and assets. Running a bulk import with this metadata creates the asset models and assets within Amazon IoT SiteWise, including their hierarchical relationships.

{
    "assetModels": [
        {
            "assetModelExternalId": "Robot.OEM1.3536",
            "assetModelName": "RobotModel1",
            "assetModelProperties": [
                {
                    "dataType": "DOUBLE",
                    "externalId": "Temperature",
                    "name": "Temperature",
                    "type": {
                        "measurement": {
                            "processingConfig": {
                                "forwardingConfig": {
                                    "state": "ENABLED"
                                }
                            }
                        }
                    },
                    "unit": "fahrenheit"
                }
            ]
        },
        {
            "assetModelExternalId": "ISA95.WorkCell",
            "assetModelName": "WorkCell",
            "assetModelProperties": [],
            "assetModelHierarchies": [
                {
                    "externalId": "workCellHierarchyWithOEM1Robot",
                    "name": "robotHierarchyOEM1",
                    "childAssetModelExternalId": "Robot.OEM1.3536"
                }
            ]
        }
    ],
    "assets": [
        {
            "assetExternalId": "Robot.OEM1.3536.123456",
            "assetName": "RobotArm123456",
            "assetModelExternalId": "Robot.OEM1.3536"
        },
        {
            "assetExternalId": "Robot.OEM1.3536.987654",
            "assetName": "RobotArm987654",
            "assetModelExternalId": "Robot.OEM1.3536"
        },
        {
            "assetExternalId": "BostonSite.Area1.Line1.WorkCell1",
            "assetName": "WorkCell1",
            "assetModelExternalId": "ISA95.WorkCell",
            "assetHierarchies": [
                {
                    "externalId": "workCellHierarchyWithOEM1Robot",
                    "childAssetExternalId": "Robot.OEM1.3536.123456"
                },
                {
                    "externalId": "workCellHierarchyWithOEM1Robot",
                    "childAssetExternalId": "Robot.OEM1.3536.987654"
                }
            ]
        }
    ]
}

Example of initial on-boarding of models and assets

In this example scenario, you have various work sites that contain industrial robots in a company.

The example defines multiple asset models:

  • Sample_Enterprise – This asset model represents the company that the sites are part of. The asset model defines a hierarchy, Enterprise to Site, to represent the relationship of the sites to the enterprise.

  • Sample_Site – This asset model represents the manufacturing sites within the company. The asset model defines a hierarchy, Site to Line, to represent the relationship of the lines to the site.

  • Sample_Welding Line – This asset model represents an assembly line within work sites. The asset model defines a hierarchy, Line to Robot, to represent the relationship of the robots to the line.

  • Sample_Welding Robot – This asset model represents a particular type of robot in your work sites.

The example also defines assets based on the asset models.

  • Sample_AnyCompany Motor – This asset is created from Sample_Enterprise asset model.

  • Sample_Chicago – This asset is created from Sample_Site asset model.

  • Sample_Welding Line 1 – This asset is created from Sample_Welding Line asset model.

  • Sample_Welding Robot 1 – This asset is created from Sample_Welding Robot asset model.

  • Sample_Welding Robot 2 – This asset is created from Sample_Welding Robot asset model.

The following JSON metadata file defines these asset models and assets. Running a bulk import with this metadata creates the asset models and assets within Amazon IoT SiteWise, including their hierarchical relationships.


{
    "assetModels": [
        {
            "assetModelExternalId": "External_Id_Welding_Robot",
            "assetModelName": "Sample_Welding Robot",
            "assetModelProperties": [
                {
                    "dataType": "STRING",
                    "externalId": "External_Id_Welding_Robot_Serial_Number",
                    "name": "Serial Number",
                    "type": {
                        "attribute": {
                            "defaultValue": "-"
                        }
                    },
                    "unit": "-"
                },
                {
                    "dataType": "DOUBLE",
                    "externalId": "External_Id_Welding_Robot_Cycle_Count",
                    "name": "CycleCount",
                    "type": {
                        "measurement": {}
                    },
                    "unit": "EA"
                },
                {
                    "dataType": "DOUBLE",
                    "externalId": "External_Id_Welding_Robot_Joint_1_Current",
                    "name": "Joint 1 Current",
                    "type": {
                        "measurement": {}
                    },
                    "unit": "Amps"
                },
                {
                    "dataType": "DOUBLE",
                    "externalId": "External_Id_Welding_Robot_Joint_1_Max_Current",
                    "name": "Max Joint 1 Current",
                    "type": {
                        "metric": {
                            "expression": "max(joint1current)",
                            "variables": [
                                {
                                    "name": "joint1current",
                                    "value": {
                                        "propertyExternalId": "External_Id_Welding_Robot_Joint_1_Current"
                                    }
                                }
                            ],
                            "window": {
                                "tumbling": {
                                    "interval": "5m"
                                }
                            }
                        }
                    },
                    "unit": "Amps"
                }
            ]
        },
        {
            "assetModelExternalId": "External_Id_Welding_Line",
            "assetModelName": "Sample_Welding Line",
            "assetModelProperties": [
                {
                    "dataType": "DOUBLE",
                    "externalId": "External_Id_Welding_Line_Availability",
                    "name": "Availability",
                    "type": {
                        "measurement": {}
                    },
                    "unit": "%"
                }
            ],
            "assetModelHierarchies": [
                {
                    "externalId": "External_Id_Welding_Line_TO_Robot",
                    "name": "Line to Robot",
                    "childAssetModelExternalId": "External_Id_Welding_Robot"
                }
            ]
        },
        {
            "assetModelExternalId": "External_Id_Site",
            "assetModelName": "Sample_Site",
            "assetModelProperties": [
                {
                    "dataType": "STRING",
                    "externalId": "External_Id_Site_Street_Address",
                    "name": "Street Address",
                    "type": {
                        "attribute": {
                            "defaultValue": "-"
                        }
                    },
                    "unit": "-"
                }
            ],
            "assetModelHierarchies": [
                {
                    "externalId": "External_Id_Site_TO_Line",
                    "name": "Site to Line",
                    "childAssetModelExternalId": "External_Id_Welding_Line"
                }
            ]
        },
        {
            "assetModelExternalId": "External_Id_Enterprise",
            "assetModelName": "Sample_Enterprise",
            "assetModelProperties": [
                {
                    "dataType": "STRING",
                    "name": "Company Name",
                    "externalId": "External_Id_Enterprise_Company_Name",
                    "type": {
                        "attribute": {
                            "defaultValue": "-"
                        }
                    },
                    "unit": "-"
                }
            ],
            "assetModelHierarchies": [
                {
                    "externalId": "External_Id_Enterprise_TO_Site",
                    "name": "Enterprise to Site",
                    "childAssetModelExternalId": "External_Id_Site"
                }
            ]
        }
    ],
    "assets": [
        {
            "assetExternalId": "External_Id_Welding_Robot_1",
            "assetName": "Sample_Welding Robot 1",
            "assetModelExternalId": "External_Id_Welding_Robot",
            "assetProperties": [
                {
                    "externalId": "External_Id_Welding_Robot_Serial_Number",
                    "attributeValue": "S1000"
                },
                {
                    "externalId": "External_Id_Welding_Robot_Cycle_Count",
                    "alias": "AnyCompany/Chicago/Welding Line/S1000/Count"
                },
                {
                    "externalId": "External_Id_Welding_Robot_Joint_1_Current",
                    "alias": "AnyCompany/Chicago/Welding Line/S1000/1/Current"
                }
            ]
        },
        {
            "assetExternalId": "External_Id_Welding_Robot_2",
            "assetName": "Sample_Welding Robot 2",
            "assetModelExternalId": "External_Id_Welding_Robot",
            "assetProperties": [
                {
                    "externalId": "External_Id_Welding_Robot_Serial_Number",
                    "attributeValue": "S2000"
                },
                {
                    "externalId": "External_Id_Welding_Robot_Cycle_Count",
                    "alias": "AnyCompany/Chicago/Welding Line/S2000/Count"
                },
                {
                    "externalId": "External_Id_Welding_Robot_Joint_1_Current",
                    "alias": "AnyCompany/Chicago/Welding Line/S2000/1/Current"
                }
            ]
        },
        {
            "assetExternalId": "External_Id_Welding_Line_1",
            "assetName": "Sample_Welding Line 1",
            "assetModelExternalId": "External_Id_Welding_Line",
            "assetProperties": [
                {
                    "externalId": "External_Id_Welding_Line_Availability",
                    "alias": "AnyCompany/Chicago/Welding Line/Availability"
                }
            ],
            "assetHierarchies": [
                {
                    "externalId": "External_Id_Welding_Line_TO_Robot",
                    "childAssetExternalId": "External_Id_Welding_Robot_1"
                },
                {
                    "externalId": "External_Id_Welding_Line_TO_Robot",
                    "childAssetExternalId": "External_Id_Welding_Robot_2"
                }
            ]
        },
        {
            "assetExternalId": "External_Id_Site_Chicago",
            "assetName": "Sample_Chicago",
            "assetModelExternalId": "External_Id_Site",
            "assetHierarchies": [
                {
                    "externalId": "External_Id_Site_TO_Line",
                    "childAssetExternalId": "External_Id_Welding_Line_1"
                }
            ]
        },
        {
            "assetExternalId": "External_Id_Enterprise_AnyCompany",
            "assetName": "Sample_AnyEnterprise Motor",
            "assetModelExternalId": "External_Id_Enterprise",
            "assetHierarchies": [
                {
                    "externalId": "External_Id_Enterprise_TO_Site",
                    "childAssetExternalId": "External_Id_Site_Chicago"
                }
            ]
        }
    ]
}

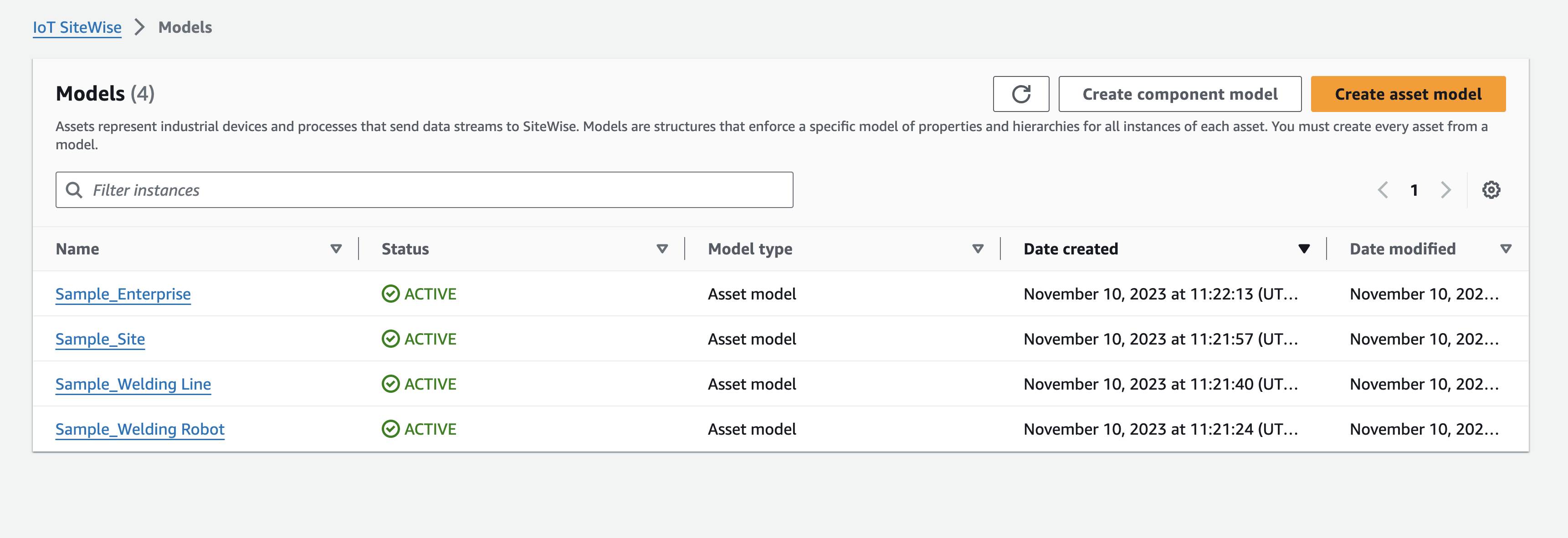

The following screenshot is of models that display in the Amazon IoT SiteWise console after you run the previous code example.

Amazon IoT SiteWise models with asset and asset models.

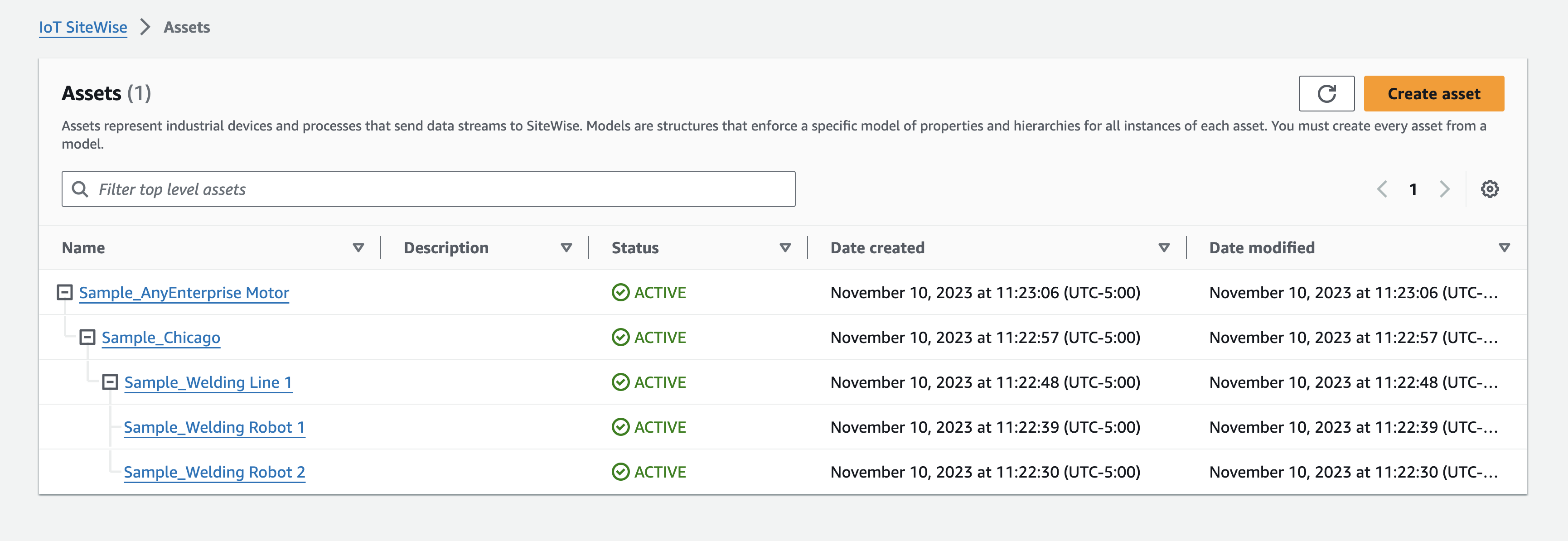

The following screenshot is of models, assets, and hierarchies that display in the Amazon IoT SiteWise console after you run the previous code example.

Amazon IoT SiteWise models with assets, asset models, and hierarchies.

Example of onboarding additional assets

This example defines additional assets to import to an existing asset model in your account:

  • Sample_Welding Line 2 – This asset is created from Sample_Welding Line asset model.

  • Sample_Welding Robot 3– This asset is created from Sample_Welding Robot asset model.

  • Sample_Welding Robot 4– This asset is created from Sample_Welding Robot asset model.

To create the initial assets for this example, see Example of initial on-boarding of models and assets.

The following JSON metadata file defines these asset models and assets. Running a bulk import with this metadata creates the asset models and assets within Amazon IoT SiteWise, including their hierarchical relationships.


{
    "assets": [
        {
            "assetExternalId": "External_Id_Welding_Robot_3",
            "assetName": "Sample_Welding Robot 3",
            "assetModelExternalId": "External_Id_Welding_Robot",
            "assetProperties": [
                {
                    "externalId": "External_Id_Welding_Robot_Serial_Number",
                    "attributeValue": "S3000"
                },
                {
                    "externalId": "External_Id_Welding_Robot_Cycle_Count",
                    "alias": "AnyCompany/Chicago/Welding Line/S3000/Count"
                },
                {
                    "externalId": "External_Id_Welding_Robot_Joint_1_Current",
                    "alias": "AnyCompany/Chicago/Welding Line/S3000/1/Current"
                }
            ]
        },
        {
            "assetExternalId": "External_Id_Welding_Robot_4",
            "assetName": "Sample_Welding Robot 4",
            "assetModelExternalId": "External_Id_Welding_Robot",
            "assetProperties": [
                {
                    "externalId": "External_Id_Welding_Robot_Serial_Number",
                    "attributeValue": "S4000"
                },
                {
                    "externalId": "External_Id_Welding_Robot_Cycle_Count",
                    "alias": "AnyCompany/Chicago/Welding Line/S4000/Count"
                },
                {
                    "externalId": "External_Id_Welding_Robot_Joint_1_Current",
                    "alias": "AnyCompany/Chicago/Welding Line/S4000/1/Current"
                }
            ]
        },
        {
            "assetExternalId": "External_Id_Welding_Line_1",
            "assetName": "Sample_Welding Line 1",
            "assetModelExternalId": "External_Id_Welding_Line",
            "assetHierarchies": [
                {
                    "externalId": "External_Id_Welding_Line_TO_Robot",
                    "childAssetExternalId": "External_Id_Welding_Robot_1"
                },
                {
                    "externalId": "External_Id_Welding_Line_TO_Robot",
                    "childAssetExternalId": "External_Id_Welding_Robot_2"
                },
                {
                    "externalId": "External_Id_Welding_Line_TO_Robot",
                    "childAssetExternalId": "External_Id_Welding_Robot_3"
                }
            ]
        },
        {
            "assetExternalId": "External_Id_Welding_Line_2",
            "assetName": "Sample_Welding Line 2",
            "assetModelExternalId": "External_Id_Welding_Line",
            "assetHierarchies": [
                {
                    "externalId": "External_Id_Welding_Line_TO_Robot",
                    "childAssetExternalId": "External_Id_Welding_Robot_4"
                }
            ]
        },
        {
            "assetExternalId": "External_Id_Site_Chicago",
            "assetName": "Sample_Chicago",
            "assetModelExternalId": "External_Id_Site",
            "assetHierarchies": [
                {
                    "externalId": "External_Id_Site_TO_Line",
                    "childAssetExternalId": "External_Id_Welding_Line_1"
                },
                {
                    "externalId": "External_Id_Site_TO_Line",
                    "childAssetExternalId": "External_Id_Welding_Line_2"
                }
            ]
        }
    ]
}

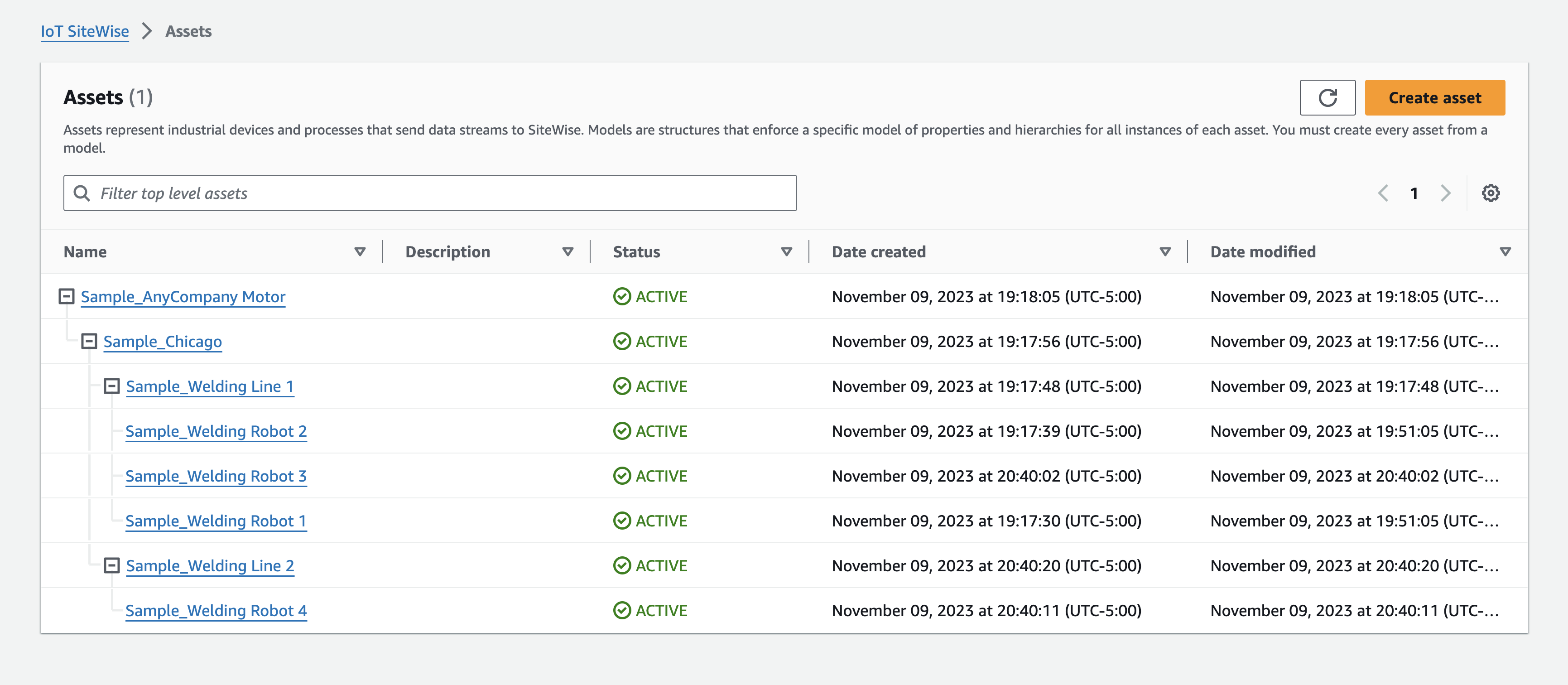

The following screenshot is of models, assets, and hierarchies that display in the Amazon IoT SiteWise console after you run the previous code example.

Amazon IoT SiteWise models with asset and asset models.

Example of onboarding new properties

This example defines new properties on existing asset models. See Example of onboarding additional assets to onboard additional assets and models.

  • Joint 1 Temperature – This property is added to the Sample_Welding Robot asset model. This new property will also propagate to each asset created from the Sample_Welding Robot asset model.

To add a new property to an existing asset model, see the following JSON metadata file example. As shown in the JSON, the entire existing Sample_Welding Robot asset model definition must be provided along with the new property. If the entire property list from the existing definition is not provided, Amazon IoT SiteWise deletes the omitted properties.

This example adds a new property Joint 1 Temperature to the asset model.


{
    "assetModels": [
        {
            "assetModelExternalId": "External_Id_Welding_Robot",
            "assetModelName": "Sample_Welding Robot",
            "assetModelProperties": [
                {
                    "dataType": "STRING",
                    "externalId": "External_Id_Welding_Robot_Serial_Number",
                    "name": "Serial Number",
                    "type": {
                        "attribute": {
                            "defaultValue": "-"
                        }
                    },
                    "unit": "-"
                },
                {
                    "dataType": "DOUBLE",
                    "externalId": "External_Id_Welding_Robot_Cycle_Count",
                    "name": "CycleCount",
                    "type": {
                        "measurement": {}
                    },
                    "unit": "EA"
                },
                {
                    "dataType": "DOUBLE",
                    "externalId": "External_Id_Welding_Robot_Joint_1_Current",
                    "name": "Joint 1 Current",
                    "type": {
                        "measurement": {}
                    },
                    "unit": "Amps"
                },
                {
                    "dataType": "DOUBLE",
                    "externalId": "External_Id_Welding_Robot_Joint_1_Max_Current",
                    "name": "Max Joint 1 Current",
                    "type": {
                        "metric": {
                            "expression": "max(joint1current)",
                            "variables": [
                                {
                                    "name": "joint1current",
                                    "value": {
                                        "propertyExternalId": "External_Id_Welding_Robot_Joint_1_Current"
                                    }
                                }
                            ],
                            "window": {
                                "tumbling": {
                                    "interval": "5m"
                                }
                            }
                        }
                    },
                    "unit": "Amps"
                },
                {
                    "dataType": "DOUBLE",
                    "externalId": "External_Id_Welding_Robot_Joint_1_Temperature",
                    "name": "Joint 1 Temperature",
                    "type": {
                        "measurement": {}
                    },
                    "unit": "degC"
                }
            ]
        }
    ]
}

Example of managing data streams

This example shows two ways of managing data streams associated with an asset property. When renaming an asset property alias, there are two options for the historical data currently stored in the asset property's data stream.

  • Option one – Keep the current data stream and rename the alias alone, allowing the historical data to be accessible with the new alias.

    In the JSON metadata file example, the asset property with ID External_Id_Welding_Robot_Cycle_Count changes its alias to AnyCompany/Chicago/Welding Line/S3000/Count-Updated. The historical data for this asset property remains the same after this change.

  • Option two – Assign a new data stream to the asset property which is accessible with the new alias. The old data stream along with its historical data is still accessible with the old alias, but not associated with any asset property.

    In the JSON metadata file example, the asset property with ID External_Id_Welding_Robot_Joint_1_Current changes its alias to AnyCompany/Chicago/Welding Line/S4999/1/Current. This time the additional value retainDataOnAliasChange is present and set to False. With this setting, the original data stream is disassociated from the asset property, and a new data stream is created containing no historical data.

To access the old data stream with the original historical data, in the Amazon Web Services Console Home, go to the Data Streams page and search for the old alias AnyCompany/Chicago/Welding Line/S3000/1/Current.


{
    "assetExternalId": "External_Id_Welding_Robot_3",
    "assetName": "Sample_Welding Robot 3",
    "assetModelExternalId": "External_Id_Welding_Robot",
    "assetProperties": [
        {
            "externalId": "External_Id_Welding_Robot_Serial_Number",
            "attributeValue": "S3000"
        },
        {
            "externalId": "External_Id_Welding_Robot_Cycle_Count",
            "alias": "AnyCompany/Chicago/Welding Line/S3000/Count-Updated"
        },
        {
            "externalId": "External_Id_Welding_Robot_Joint_1_Current",
            "alias": "AnyCompany/Chicago/Welding Line/S4999/1/Current",
            "retainDataOnAliasChange": "FALSE"
        }
    ]
}
