Step 2: Export previously ingested data

Prepare the Amazon CloudFormation template and save it as a YAML file. For example, migrate-datasource.yaml.

# Cloudformation Template to migrate an AWS IoT Analytics datastore to an external dataset
AWSTemplateFormatVersion: 2010-09-09
Description: Migrate an AWS IoT Analytics datastore to an external dataset
Parameters:
  DatastoreName:
    Type: String
    Description: The name of the datastore to migrate.
    AllowedPattern: ^[a-zA-Z0-9_]+$
  TimeRange:
    Type: String
    Description: |
      This is an optional argument to split the source data into multiple files.
      The value should follow the SQL syntax of WHERE clause.
      E.g. WHERE DATE(Item_TimeStamp) BETWEEN '09/16/2010 05:00:00' and '09/21/2010 09:00:00'.
    Default: ''
  MigrationS3Bucket:
    Type: String
    Description: The S3 Bucket where the datastore will be migrated to.
    AllowedPattern: (?!(^xn--|.+-s3alias$))^[a-z0-9][a-z0-9-]{1,61}[a-z0-9]$
  MigrationS3BucketPrefix:
    Type: String
    Description: The prefix of the S3 Bucket where the datastore will be migrated to.
    Default: ''
    AllowedPattern: (^([a-zA-Z0-9.\-_]*\/)*$)|(^$)
Resources:
  # IAM Role to be assumed by the AWS IoT Analytics service to access the external dataset
  DatastoreMigrationRole:
    Type: AWS::IAM::Role
    Properties:
      AssumeRolePolicyDocument:
        Version: 2012-10-17
        Statement:
          - Effect: Allow
            Principal:
              Service: iotanalytics.amazonaws.com
            Action: sts:AssumeRole
      Policies:
        - PolicyName: AllowAccessToExternalDataset
          PolicyDocument:
            Version: 2012-10-17
            Statement:
              - Effect: Allow
                Action:
                  - s3:GetBucketLocation
                  - s3:GetObject
                  - s3:ListBucket
                  - s3:ListBucketMultipartUploads
                  - s3:ListMultipartUploadParts
                  - s3:AbortMultipartUpload
                  - s3:PutObject
                  - s3:DeleteObject
                Resource:
                  - !Sub arn:aws:s3:::${MigrationS3Bucket}
                  - !Sub arn:aws:s3:::${MigrationS3Bucket}/${MigrationS3BucketPrefix}*

  # This dataset that will be created in the external S3 Export
  MigratedDataset:
    Type: AWS::IoTAnalytics::Dataset
    Properties:
      DatasetName: !Sub ${DatastoreName}_generated
      Actions:
        - ActionName: SqlAction
          QueryAction:
            SqlQuery: !Sub SELECT * FROM ${DatastoreName} ${TimeRange}
      ContentDeliveryRules:
        - Destination:
            S3DestinationConfiguration:
              Bucket: !Ref MigrationS3Bucket
              Key: !Sub ${MigrationS3BucketPrefix}${DatastoreName}/!{iotanalytics:scheduleTime}/!{iotanalytics:versionId}.csv
              RoleArn: !GetAtt DatastoreMigrationRole.Arn
      RetentionPeriod:
        Unlimited: true
      VersioningConfiguration:
        Unlimited: true

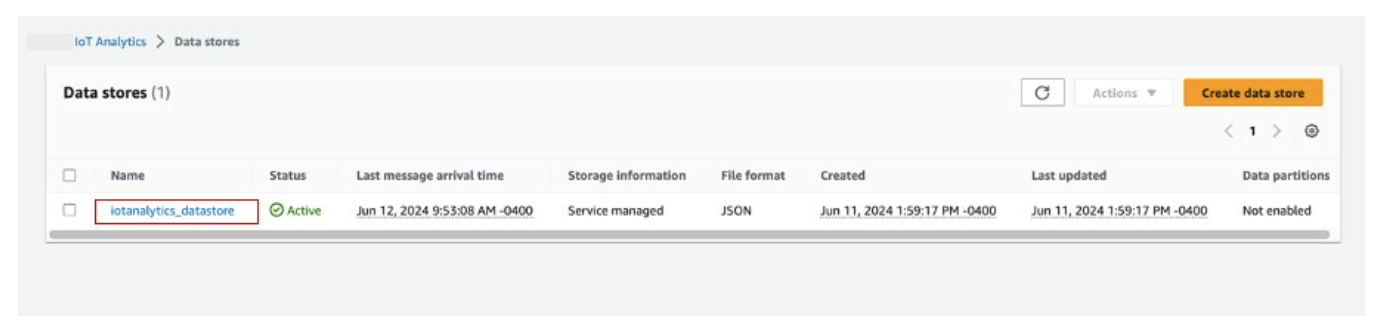

Determine the Amazon IoT Analytics datastore that requires data to be exported. For this guide, we will use a sample datastore named iot_analytics_datastore.

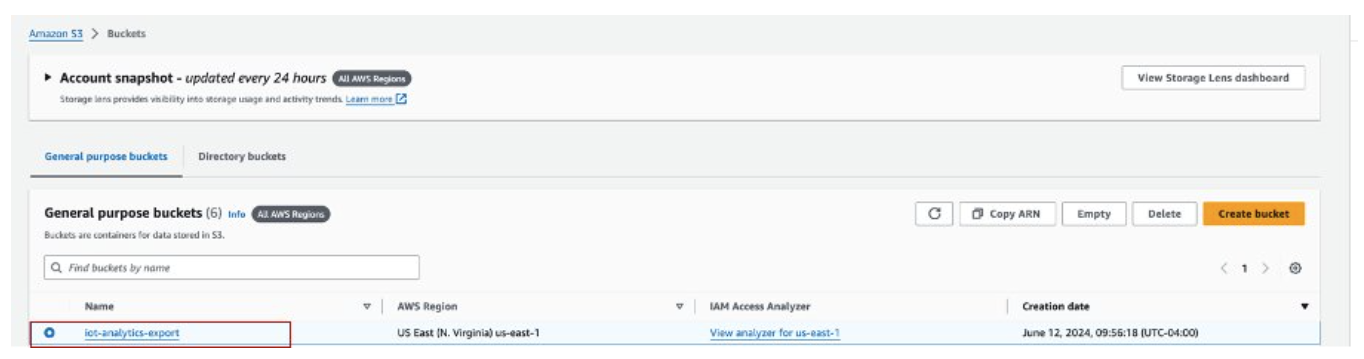

Create or identify an Amazon S3 bucket where the data will be exported. For this guide, we will use the iot-analytics-export bucket.

Create the Amazon CloudFormation stack.

Enter a stack name and provide the following parameters:

Click Next on the Configure stack options screen.

Selecting the checkbox to acknowledge creating IAM resources, and click Submit.

Review stack creation on the Events tab for completion.

On successful stack completion, navigate to Amazon IoT Analytics → Datasets to view the migrated dataset.

Select the generated dataset, and click Run now to export the dataset.

The content can be viewed on the Content tab of the dataset.

Finally, review the exported content by opening the iot-analytics-export bucket in the Amazon S3 console.
