Step 2: Create the Kinesis Data Analytics Application

In this section of the Hotspots example, you create an Kinesis Data Analytics application as follows:

  • Configure the application input to use the Kinesis data stream you created as the streaming source in Step 1.

  • Use the provided application code in the Amazon Web Services Management Console.

To create an application
  1. Create a Kinesis Data Analytics application by following steps 1, 2, and 3 in the Getting Started exercise (see Step 3.1: Create an Application).

    In the source configuration, do the following:

    • Specify the streaming source you created in Step 1: Create the Input and Output Streams.

    • After the console infers the schema, edit the schema. Ensure that the x and y column types are set to DOUBLE and that the IS_HOT column type is set to VARCHAR.

  2. Use the following application code (you can paste this code into the SQL editor):

    CREATE OR REPLACE STREAM "DESTINATION_SQL_STREAM" ( "x" DOUBLE, "y" DOUBLE, "is_hot" VARCHAR(4), HOTSPOTS_RESULT VARCHAR(10000) ); CREATE OR REPLACE PUMP "STREAM_PUMP" AS INSERT INTO "DESTINATION_SQL_STREAM" SELECT "x", "y", "is_hot", "HOTSPOTS_RESULT" FROM TABLE ( HOTSPOTS( CURSOR(SELECT STREAM "x", "y", "is_hot" FROM "SOURCE_SQL_STREAM_001"), 1000, 0.2, 17) );

  3. Run the SQL code and review the results.

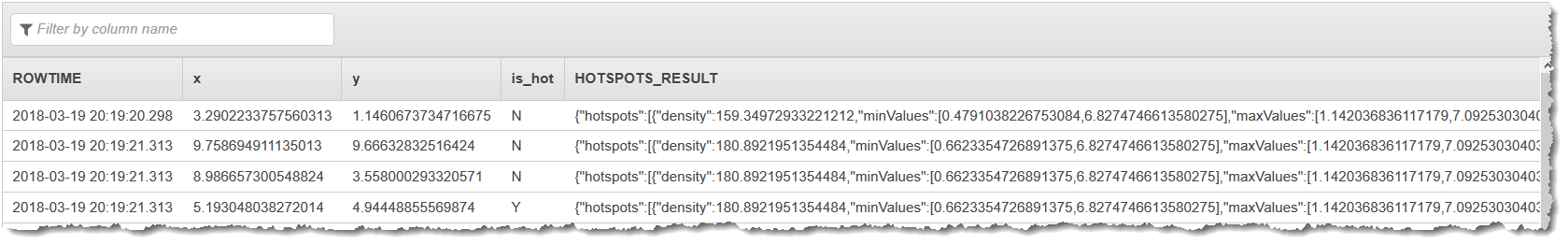

    Results of SQL code showing rowtime, hotspot, and hotspot_heat.

Next Step

Step 3: Configure the Application Output
