Automatically register SageMaker models with SageMaker Model Registry

You can log MLflow models and automatically register them with SageMaker Model Registry using either the Python SDK or directly through the MLflow UI.

Note

Do not use spaces in a model name. While MLflow supports model names with spaces, SageMaker Model Package does not. The auto-registration process fails if you use spaces in your model name.

Register models using the SageMaker Python SDK

Use create_registered_model within your MLflow client to automatically create a model package group in SageMaker that corresponds to an existing MLflow model of your choice.

import mlflow
from mlflow import MlflowClient

mlflow.set_tracking_uri(arn)

client = MlflowClient()

mlflow_model_name = 'AutoRegisteredModel'
client.create_registered_model(mlflow_model_name, tags={"key1": "value1"})

Use mlflow.register_model() to automatically register a model with the SageMaker Model Registry during model training. When registering the MLflow model, a corresponding model package group and model package version are created in SageMaker.

import mlflow.sklearn
from mlflow.models import infer_signature
from sklearn.datasets import make_regression
from sklearn.ensemble import RandomForestRegressor

mlflow.set_tracking_uri(arn)
params = {"n_estimators": 3, "random_state": 42}
X, y = make_regression(n_features=4, n_informative=2, random_state=0, shuffle=False)

# Log MLflow entities
with mlflow.start_run() as run:
    rfr = RandomForestRegressor(**params).fit(X, y)
    signature = infer_signature(X, rfr.predict(X))
    mlflow.log_params(params)
    mlflow.sklearn.log_model(rfr, artifact_path="sklearn-model", signature=signature)

model_uri = f"runs:/{run.info.run_id}/sklearn-model"
mv = mlflow.register_model(model_uri, "RandomForestRegressionModel")

print(f"Name: {mv.name}")
print(f"Version: {mv.version}")

Register models using the MLflow UI

You can alternatively register a model with the SageMaker Model Registry directly in the MLflow UI. Within the Models menu in the MLflow UI, choose Create Model. Any models newly created in this way are added to the SageMaker Model Registry.

Model registry creation within the MLflow UI.

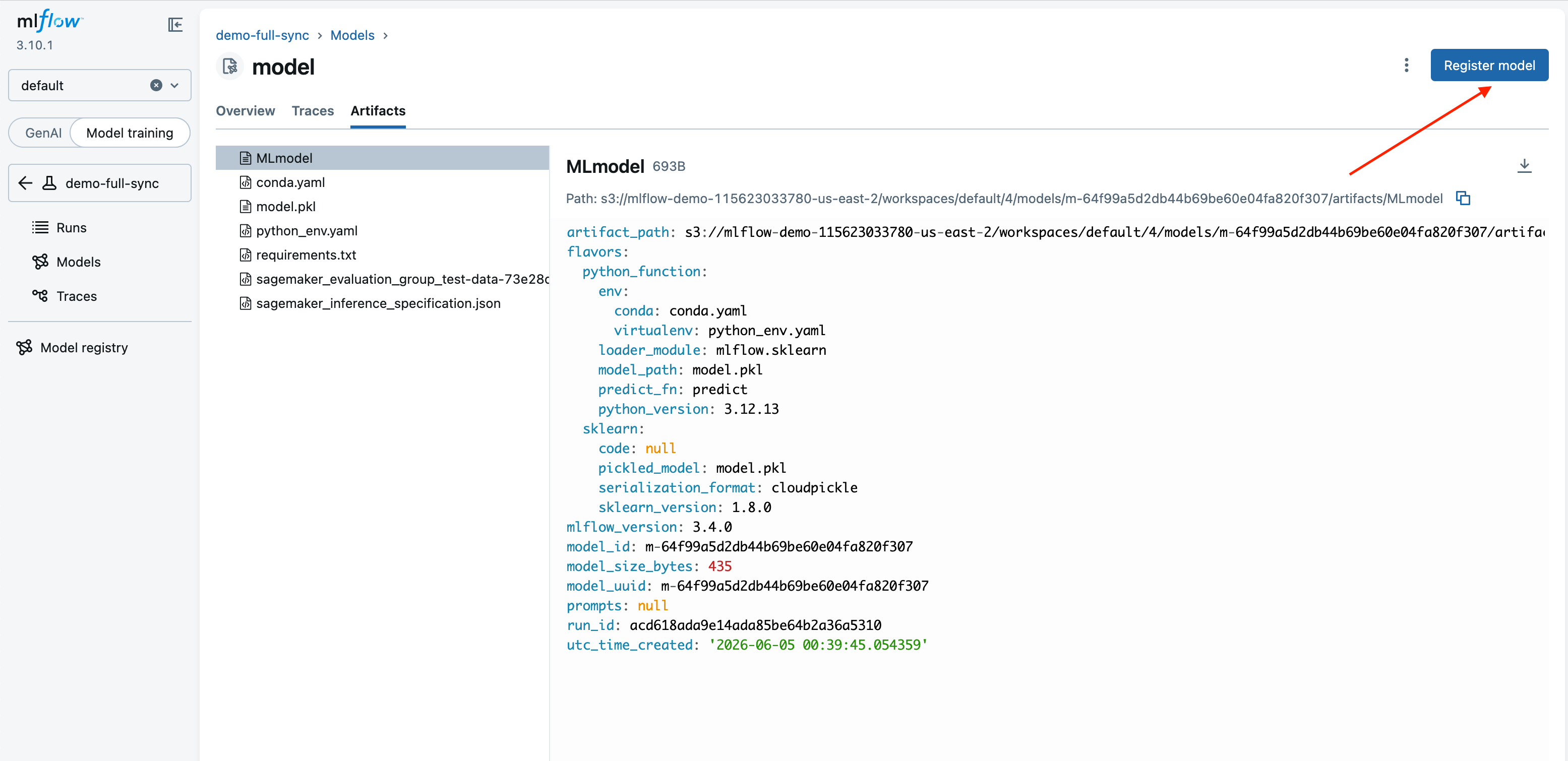

After logging a model during experiment tracking, navigate to the run page in the MLflow UI. Choose the Artifacts pane and choose Register model in the upper right corner to register the model version in both MLflow and SageMaker Model Registry.

Model registry creation within the MLflow UI.

View registered models in Studio

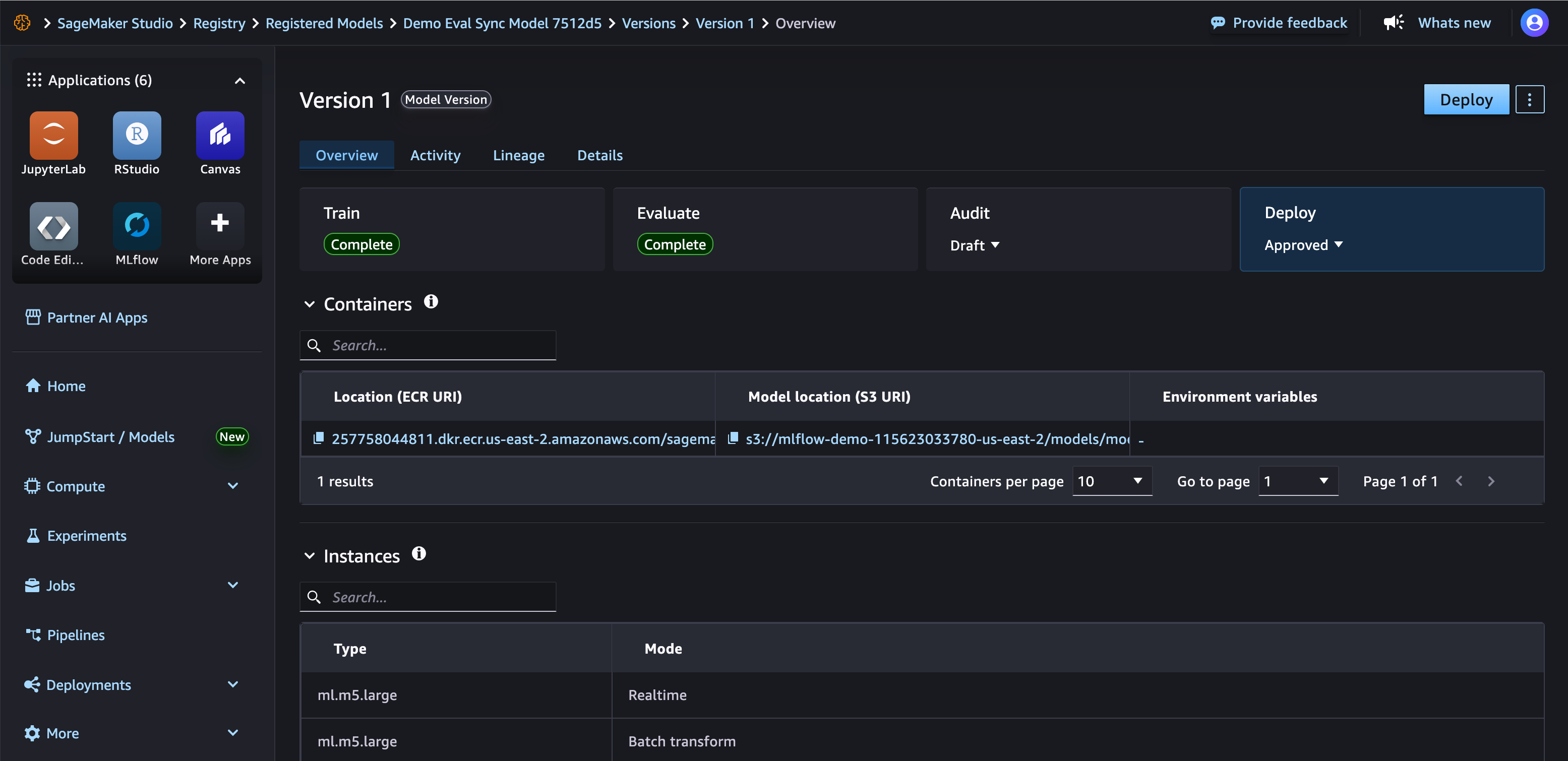

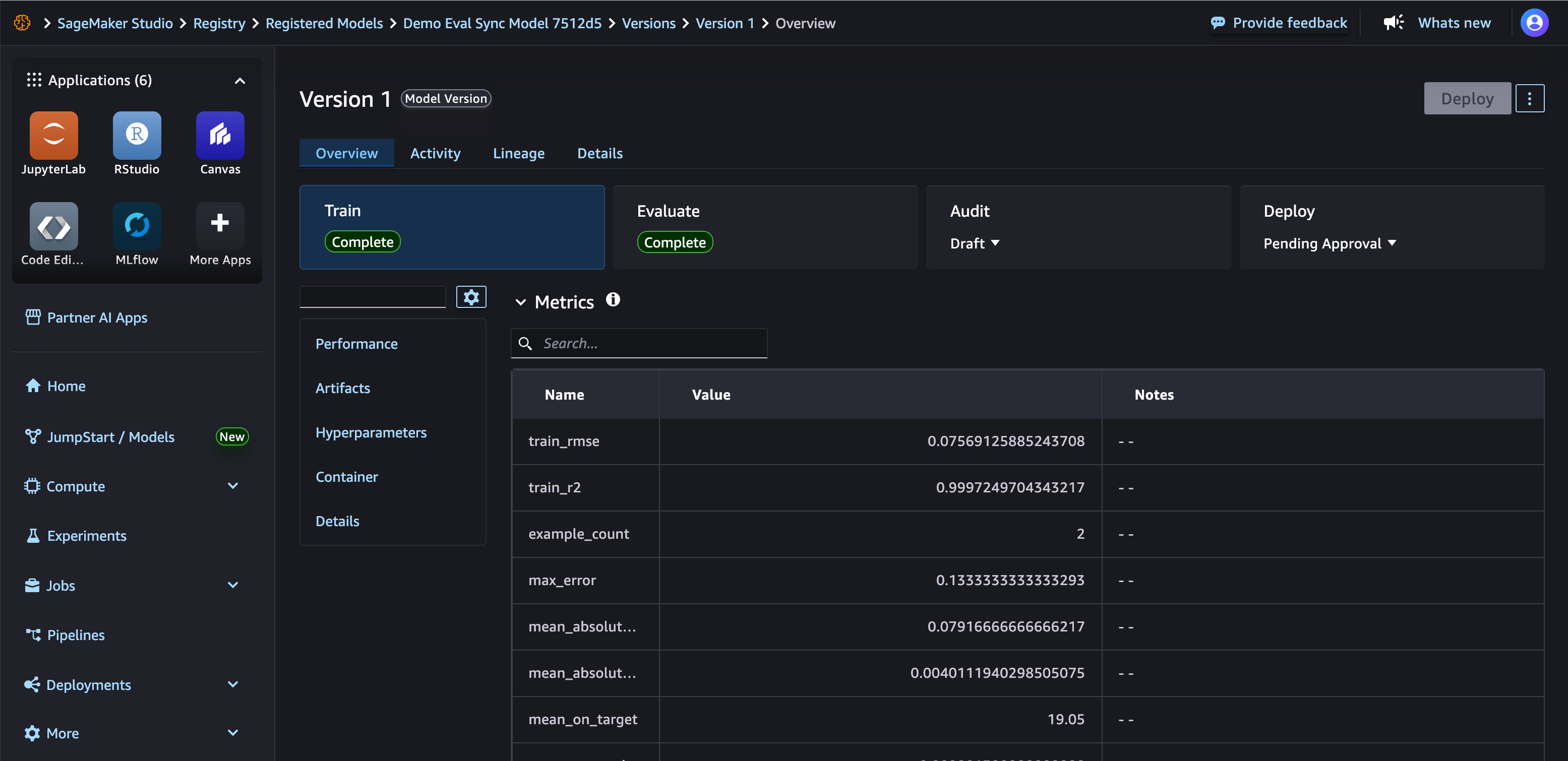

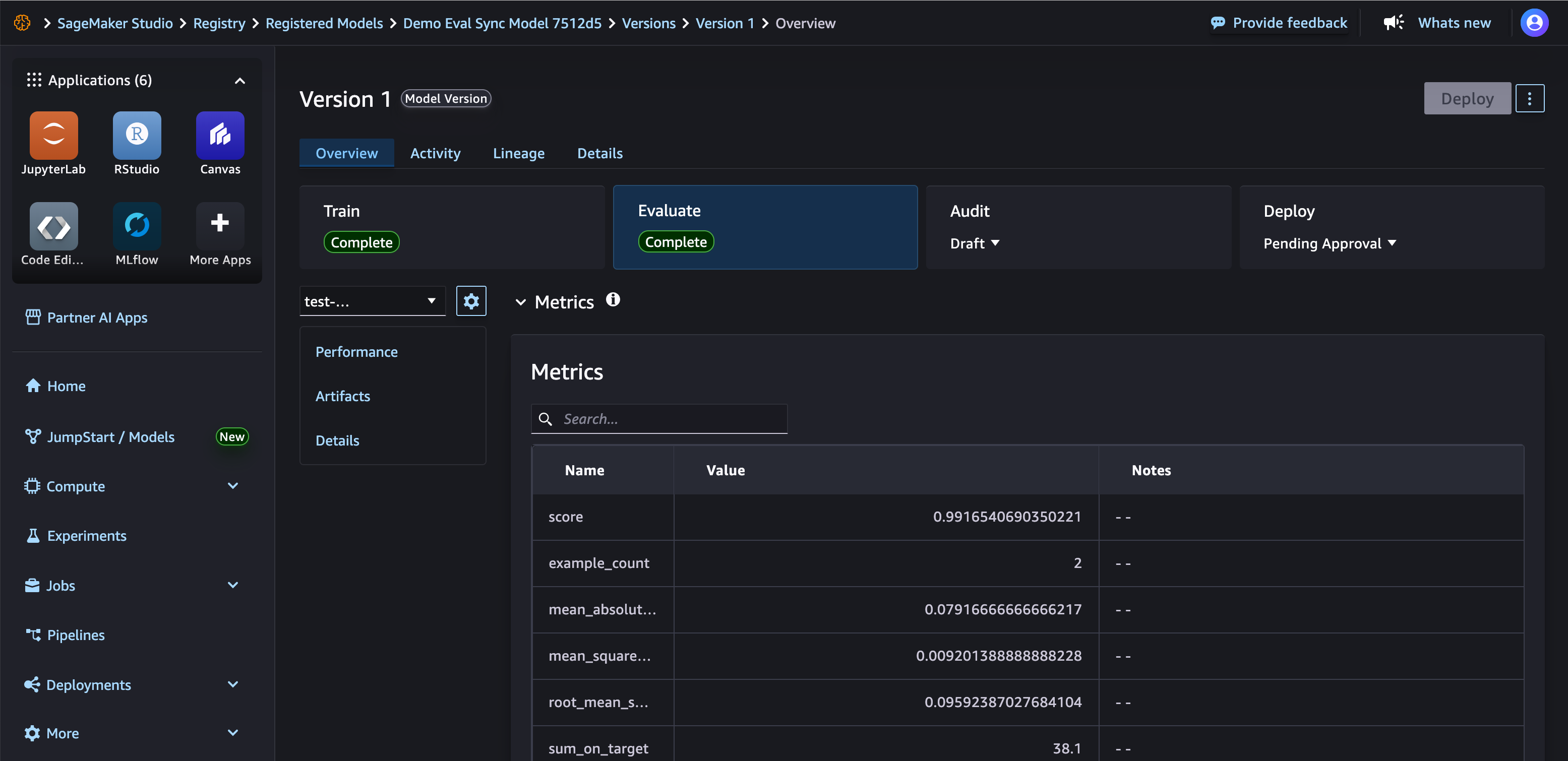

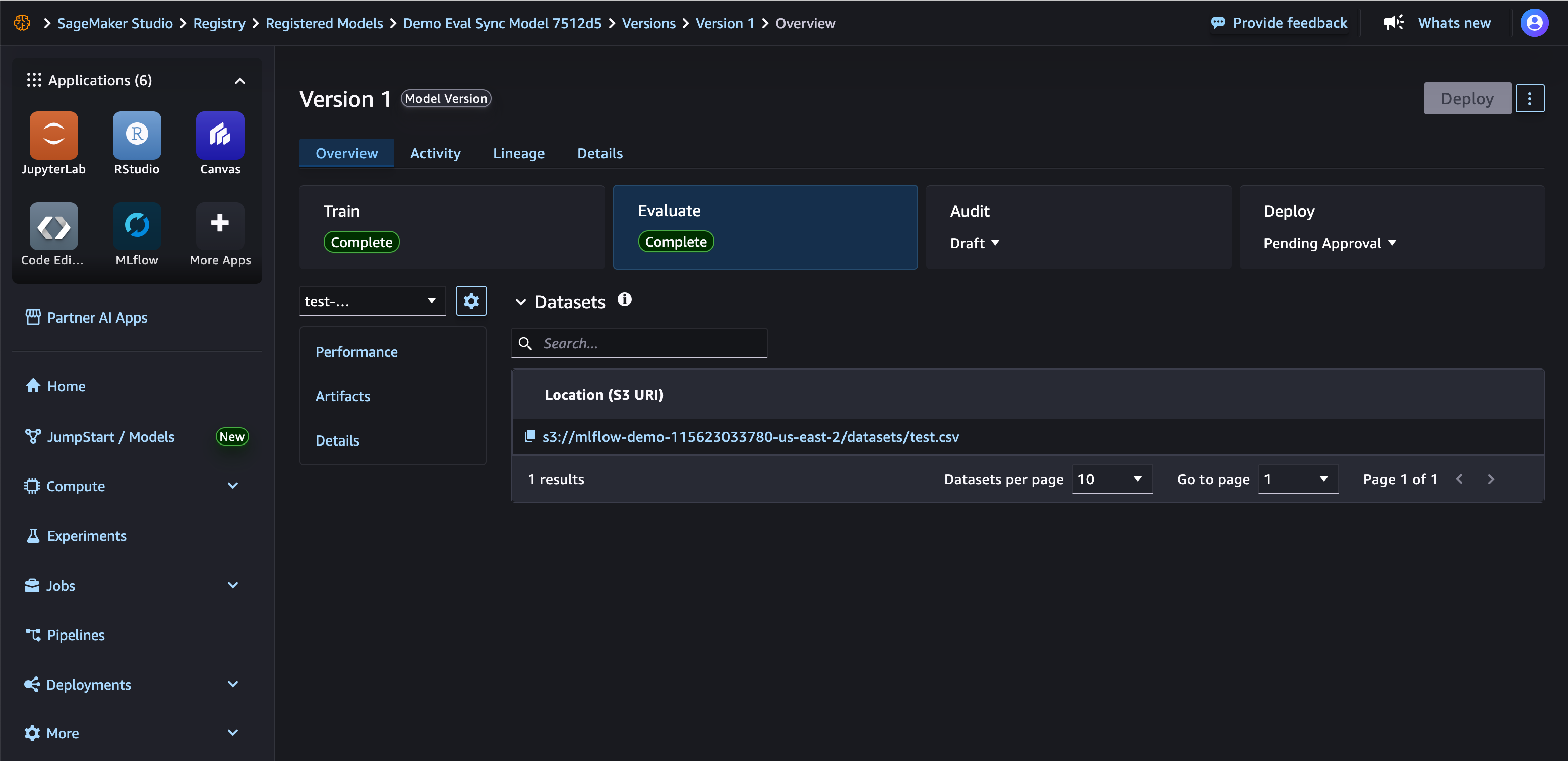

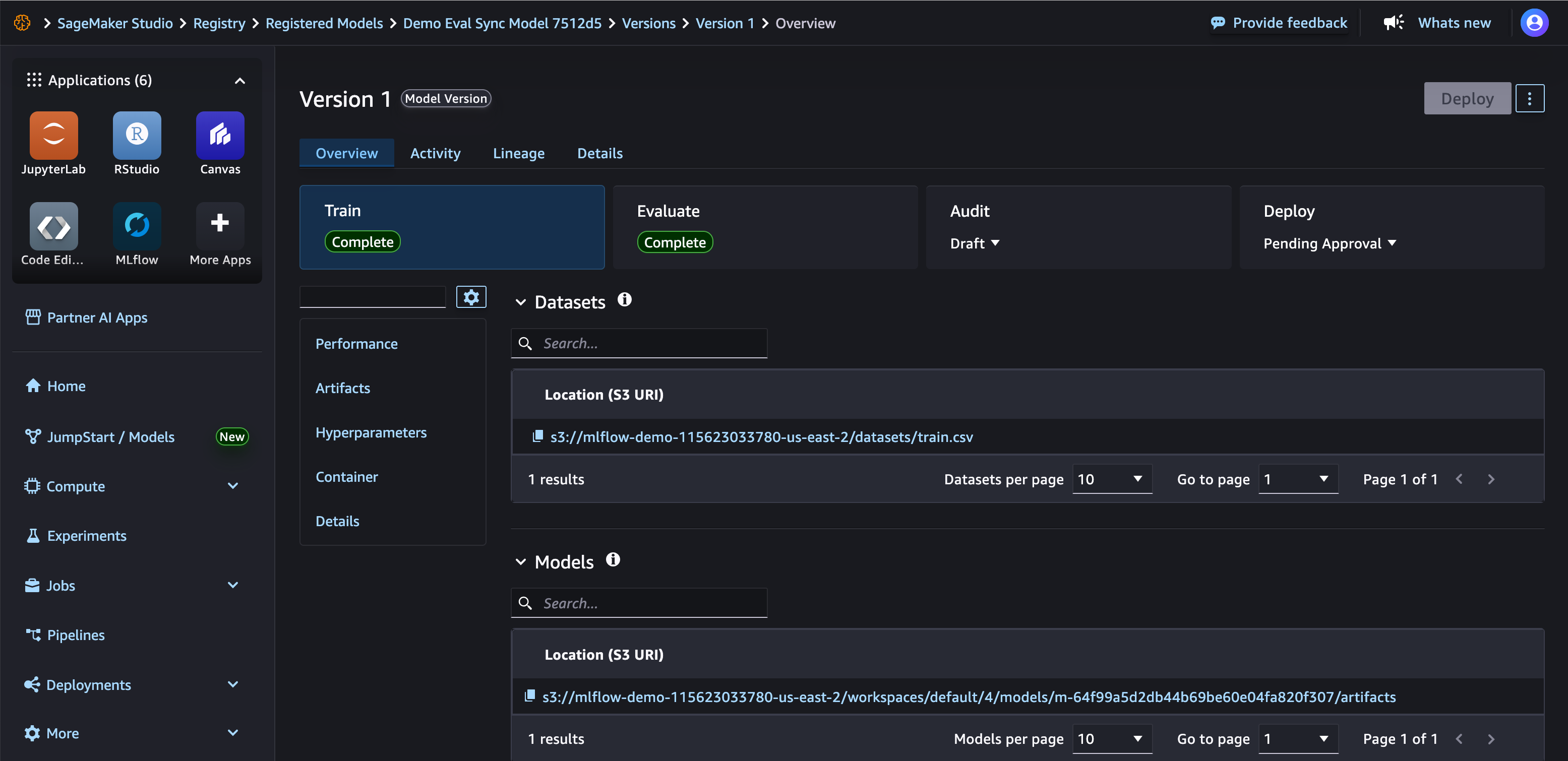

Within the SageMaker Studio landing page, choose Models on the left navigation pane to view your registered models. For more information on getting started with Studio, see Launch Amazon SageMaker Studio.

MLflow models registered in SageMaker Model Registry in the Studio UI.
