Creating a SageMaker HyperPod cluster

To create a cluster, run the create-cluster Amazon CLI command. The creation process can take up to 15 minutes to complete.

aws --region $REGION sagemaker create-cluster \
    --cluster-name $HP_CLUSTER_NAME \
    --vpc-config '{
        "SecurityGroupIds":["'$SECURITY_GROUP'"],
        "Subnets":["'$PRIMARY_SUBNET'", "'$BACKUP_SUBNET'"]
    }' \
    --instance-groups '[{
    "InstanceGroupName": "'$CONTOLLER_IG_NAME'",
    "InstanceType": "ml.t3.medium",
    "InstanceCount": 2,
    "LifeCycleConfig": {
        "SourceS3Uri": "s3://'$BUCKET_NAME'",
        "OnCreate": "on_create.sh"
    },
    "ExecutionRole": "'$SLURM_EXECUTION_ROLE_ARN'",
    "ThreadsPerCore": 1
},
{
    "InstanceGroupName": "'$COMPUTE_IG_NAME'",
    "InstanceType": "ml.c5.xlarge",
    "InstanceCount": 2,
    "LifeCycleConfig": {
        "SourceS3Uri": "s3://'$BUCKET_NAME'",
        "OnCreate": "on_create.sh"
    },
    "ExecutionRole": "'$COMPUTE_NODE_ROLE'",
    "ThreadsPerCore": 1
}]'

After successful execution, the command returns the cluster ARN like the following.

{
    "ClusterArn": "arn:aws:sagemaker:us-east-1:111122223333:cluster/cluster_id"
}

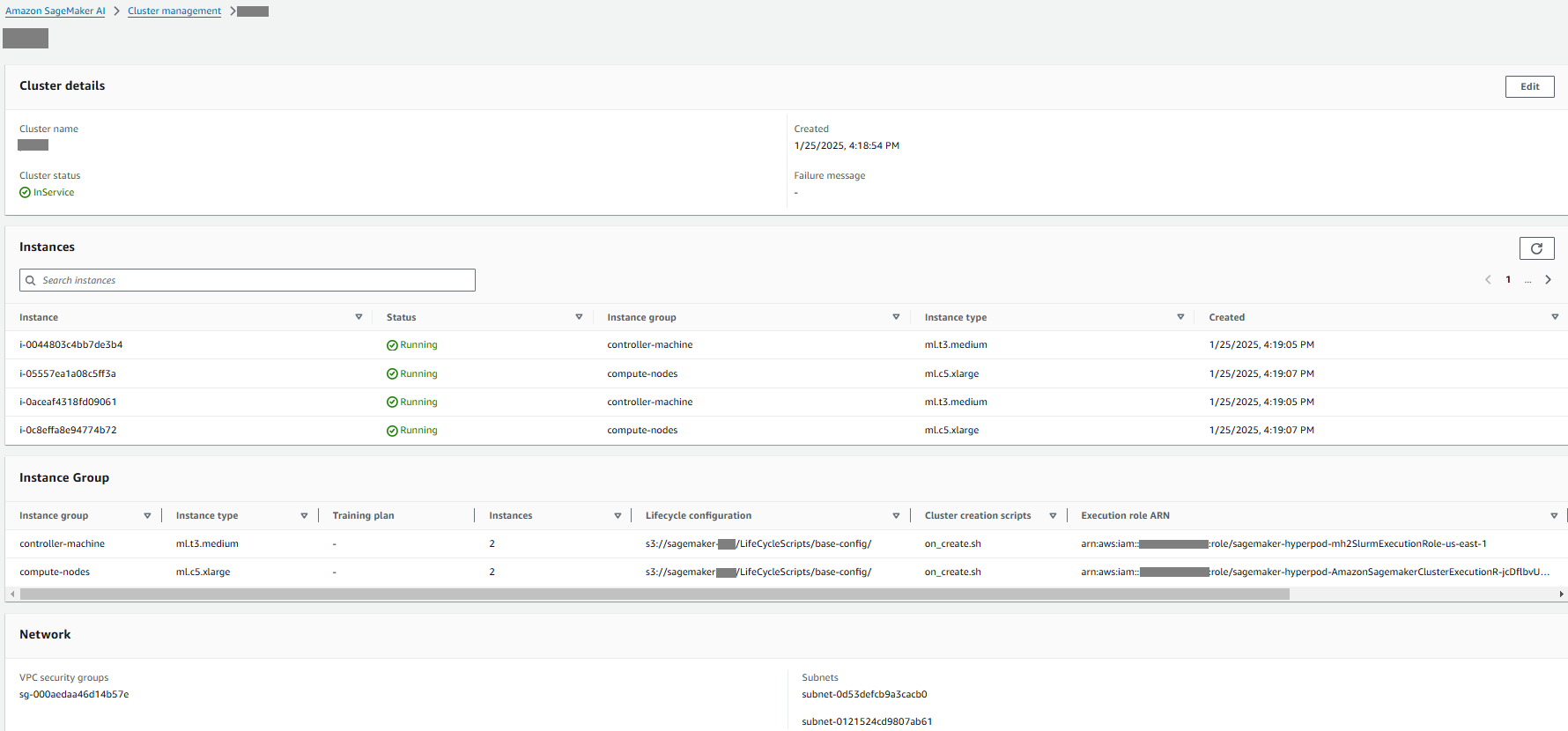

(Optional) To check the status of your cluster, you can use the SageMaker AI console (https://console.amazonaws.cn/sagemaker/). From the left navigation, choose HyperPod Clusters, then choose Cluster Management. Choose a cluster name to open the cluster details page. If your cluster is created successfully, you will see the cluster status is InService.
