Example: Enable IPv6 in a VPC with a public and private subnet

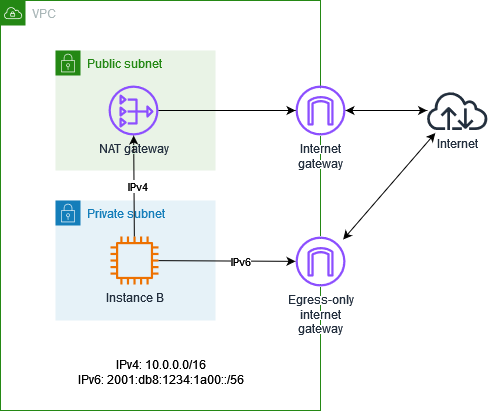

In this example, your VPC has a public and a private subnet. You have a database instance in your private subnet that has outbound communication with the internet through a NAT gateway in your VPC. You have a public-facing web server in your public subnet that has internet access through the internet gateway. The following diagram represents the architecture of your VPC.

A VPC with a public, a private subnet, a NAT gateway, and an internet gateway

The security group for your web server (for example with the security group ID sg-11aa22bb11aa22bb1) has the following inbound rules:

Type Protocol Port range Source Comment
All traffic All All sg-33cc44dd33cc44dd3 Allows inbound access for all traffic from instances associated with sg-33cc44dd33cc44dd3 (the database instance).
HTTP TCP 80 0.0.0.0/0 Allows inbound traffic from the internet over HTTP.
HTTPS TCP 443 0.0.0.0/0 Allows inbound traffic from the internet over HTTPS.
SSH TCP 22 203.0.113.123/32 Allows inbound SSH access from your local computer; for example, when you need to connect to your instance to perform administration tasks.

The security group for your database instance (for example with the security group ID sg-33cc44dd33cc44dd3) has the following inbound rule:

Type Protocol Port range Source Comment
MySQL TCP 3306 sg-11aa22bb11aa22bb1 Allows inbound access for MySQL traffic from instances associated with sg-11aa22bb11aa22bb1 (the web server instance).

Both security groups have the default outbound rule that allows all outbound IPv4 traffic, and no other outbound rules.

Your web server is t2.medium instance type. Your database server is an m3.large.

You want your VPC and resources to be enabled for IPv6, and you want them to operate in dual-stack mode; in other words, you want to use both IPv6 and IPv4 addressing between resources in your VPC and resources over the internet.
