Using web identity federation

If you are writing an application targeted at large numbers of users, you can optionally use web identity federation for authentication and authorization. Web identity federation removes the need for creating individual IAM users. Instead, users can sign in to an identity provider and then obtain temporary security credentials from Amazon Security Token Service (Amazon STS). The app can then use these credentials to access Amazon services.

Web identity federation supports the following identity providers:

  • Login with Amazon

  • Facebook

  • Google

Additional resources for web identity federation

The following resources can help you learn more about web identity federation:

Example policy for web identity federation

To show how you can use web identity federation with DynamoDB, revisit the GameScores table that was introduced in Using IAM policy conditions for fine-grained access control. Here is the primary key for GameScores.

Table Name Primary Key Type Partition Key Name and Type Sort Key Name and Type
GameScores (UserId, GameTitle, ...) Composite Attribute Name: UserId

Type: String
Attribute Name: GameTitle

Type: String

Now suppose that a mobile gaming app uses this table, and that app needs to support thousands, or even millions, of users. At this scale, it becomes very difficult to manage individual app users, and to guarantee that each user can only access their own data in the GameScores table. Fortunately, many users already have accounts with a third-party identity provider, such as Facebook, Google, or Login with Amazon. So it makes sense to use one of these providers for authentication tasks.

To do this using web identity federation, the app developer must register the app with an identity provider (such as Login with Amazon) and obtain a unique app ID. Next, the developer needs to create an IAM role. (For this example, this role is named GameRole.) The role must have an IAM policy document attached to it, specifying the conditions under which the app can access GameScores table.

When a user wants to play a game, they sign in to their Login with Amazon account from within the gaming app. The app then calls Amazon Security Token Service (Amazon STS), providing the Login with Amazon app ID and requesting membership in GameRole. Amazon STS returns temporary Amazon credentials to the app and allows it to access the GameScores table, subject to the GameRole policy document.

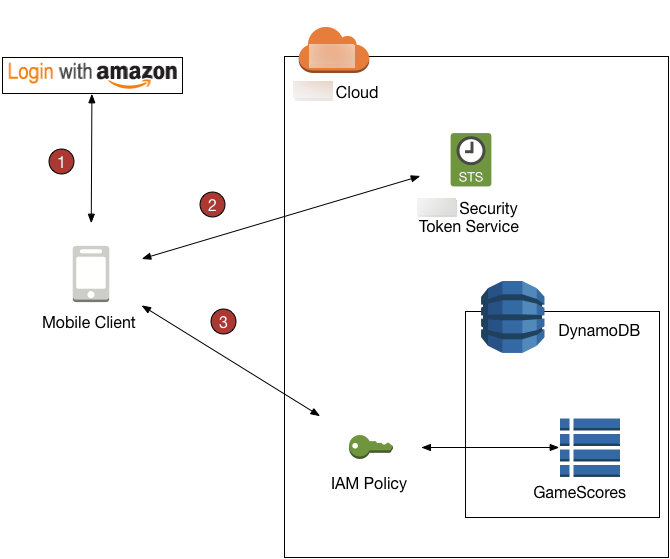

The following diagram shows how these pieces fit together.

Web identity federation overview

  1. The app calls a third-party identity provider to authenticate the user and the app. The identity provider returns a web identity token to the app.

  2. The app calls Amazon STS and passes the web identity token as input. Amazon STS authorizes the app and gives it temporary Amazon access credentials. The app is allowed to assume an IAM role (GameRole) and access Amazon resources in accordance with the role's security policy.

  3. The app calls DynamoDB to access the GameScores table. Because it has assumed the GameRole, the app is subject to the security policy associated with that role. The policy document prevents the app from accessing data that does not belong to the user.

Once again, here is the security policy for GameRole that was shown in Using IAM policy conditions for fine-grained access control:

{ "Version": "2012-10-17", "Statement": [ { "Sid": "AllowAccessToOnlyItemsMatchingUserID", "Effect": "Allow", "Action": [ "dynamodb:GetItem", "dynamodb:BatchGetItem", "dynamodb:Query", "dynamodb:PutItem", "dynamodb:UpdateItem", "dynamodb:DeleteItem", "dynamodb:BatchWriteItem" ], "Resource": [ "arn:aws:dynamodb:us-west-2:123456789012:table/GameScores" ], "Condition": { "ForAllValues:StringEquals": { "dynamodb:LeadingKeys": [ "${www.amazon.com:user_id}" ], "dynamodb:Attributes": [ "UserId", "GameTitle", "Wins", "Losses", "TopScore", "TopScoreDateTime" ] }, "StringEqualsIfExists": { "dynamodb:Select": "SPECIFIC_ATTRIBUTES" } } } ] }

The Condition clause determines which items in GameScores are visible to the app. It does this by comparing the Login with Amazon ID to the UserId partition key values in GameScores. Only the items belonging to the current user can be processed using one of DynamoDB actions that are listed in this policy. Other items in the table cannot be accessed. Furthermore, only the specific attributes listed in the policy can be accessed.
