Managing Statistics - SQL Server to Aurora MySQL Migration Playbook
Services or capabilities described in Amazon Web Services documentation might vary by Region. To see the differences applicable to the China Regions, see Getting Started with Amazon Web Services in China (PDF).

Managing Statistics

Feature compatibility Amazon SCT / Amazon DMS automation level Amazon SCT action code index Key differences


                              Three star feature compatibility


                              No automation

N/A

Statistics contain only density information, and only for index key columns.

SQL Server Usage

Statistics objects in SQL Server are designed to support cost-based query optimizer. It uses statistics to evaluate the various plan options and choose an optimal plan for optimal query performance.

Statistics are stored as BLOBs in system tables and contain histograms and other statistical information about the distribution of values in one or more columns. A histogram is created for the first column only and samples the occurrence frequency of distinct values. Statistics and histograms are collected by either scanning the entire table or by sampling only a percentage of the rows.

You can view Statistics manually using the DBCC SHOW_STATISTICS statement or the more recent sys.dm_db_stats_properties and sys.dm_db_stats_histogram system views.

SQL Server provides the capability to create filtered statistics containing a WHERE predicate. Filtered statistics are useful for optimizing histogram granularity by eliminating rows whose values are of less interest, for example NULLs.

SQL Server can manage the collection and refresh of statistics automatically, which is the default. Use the AUTO_CREATE_STATISTICS and AUTO_UPDATE_STATISTICS database options to change the defaults.

When a query is submitted with AUTO_CREATE_STATISTICS on, and the query optimizer may benefit from a statistics that doesn’t yet exist, SQL Server creates the statistics automatically. You can use the AUTO_UPDATE_STATISTICS_ASYNC database property to set new statistics creation to occur immediately and causing queries to wait or to run asynchronously. When run asynchronously, the triggering run can’t benefit from optimizations the optimizer may derive from it.

After creation of a new statistics object, either automatically or explicitly using the CREATE STATISTICS statement, the refresh of the statistics is controlled by the AUTO_UPDATE_STATISTICS database option. When set to ON, statistics are recalculated when they are stale, which happens when significant data modifications have occurred since the last refresh.

Syntax

CREATE STATISTICS <Statistics Name>
ON <Table Name> (<Column> [,...])
[WHERE <Filter Predicate>]
[WITH <Statistics Options>;

Examples

Create new statistics on multiple columns. Set to use a full scan and to not refresh.

CREATE STATISTICS MyStatistics
ON MyTable (Col1, Col2)
WITH FULLSCAN, NORECOMPUTE;

Update statistics with a 50% sampling rate.

UPDATE STATISTICS MyTable(MyStatistics)
WITH SAMPLE 50 PERCENT;

View the statistics histogram and data.

DBCC SHOW_STATISTICS ('MyTable','MyStatistics');

Turn off automatic statistics creation for a database.

ALTER DATABASE MyDB SET AUTO_CREATE_STATS OFF;

For more information, see Statistics, CREATE STATISTICS (Transact-SQL), and DBCC SHOW_STATISTICS (Transact-SQL) in the SQL Server documentation.

MySQL Usage

Amazon Aurora MySQL-Compatible Edition (Aurora MySQL) supports two modes of statistics management: persistent optimizer statistics and non-persistent optimizer statistics. As the name suggests, persistent statistics are written to disk and survive service restart. Non-persistent statistics are kept in memory only and need to be recreated after service restart. It is recommended to use persistent optimizer statistics (the default for Aurora MySQL) for improved plan stability.

Statistics in Aurora MySQL are created for indexes only. Aurora MySQL doesn’t support independent statistics objects on columns that aren’t part of an index.

Typically, administrators change the statistics management mode by setting the global parameter innodb_stats_persistent = ON. This option isn’t supported for Aurora MySQL because it requires server SUPER privileges. Therefore, control the statistics management mode by changing the behavior for individual tables using the table option STATS_PERSISTENT = 1. There are no column-level or statistics-level options for setting parameter values.

To view statistics metadata, use the INFORMATION_SCHEMA.STATISTICS standard view. To view detailed persistent optimizer statistics, use the innodb_table_stats and innodb_index_stats tables.

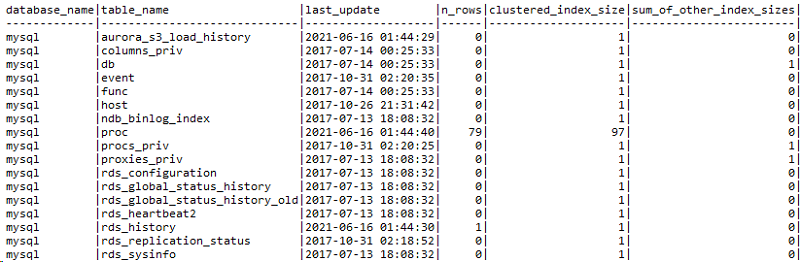

The following image shows an example of mysql.innodb_table_stats content.


               Example of mysql innodb table stats

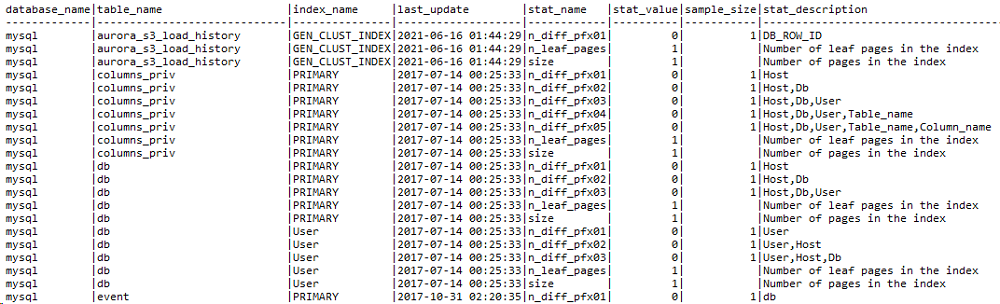

The following image shows an example of mysql.innodb_index_stats content.


               Example of mysql statistics

Automatic refresh of statistics is controlled by the global parameter innodb_stats_auto_recalc, which is set to ON in Aurora MySQL. You can set it individually for each table using the STATS_AUTO_RECALC=1 option.

To explicitly force refresh of table statistics, use the ANALYZE TABLE statement. It is not possible to refresh individual statistics or columns.

Use the NO_WRITE_TO_BINLOG or its clearer alias LOCAL to avoid replication to replication replicas.

Use ALTER TABLE …​ ANALYZE PARTITION to analyze one or more individual partitions. For more information, see Storage.

Note

Amazon Relational Database Service (Amazon RDS) for MySQL 8 adds new INFORMATION_SCHEMA.INNODB_CACHED_INDEXES table which reports the number of index pages cached in the InnoDB buffer pool for each index.

Syntax

ANALYZE [NO_WRITE_TO_BINLOG | LOCAL] TABLE <Table Name> [,...];
CREATE TABLE ( <Table Definition> ) | ALTER TABLE <Table Name>
STATS_PERSISTENT = <1|0>,
STATS_AUTO_RECALC = <1|0>,
STATS_SAMPLE_PAGES = <Statistics Sampling Size>;

Migration Considerations

Unlike SQL Server, Aurora MySQL collects only density information. It doesn’t collect detailed key distribution histograms. This difference is critical for understanding run plans and troubleshooting performance issues, which aren’t affected by individual values used by query parameters.

Statistics collection is managed at the table level. You can’t manage individual statistics objects or individual columns. In most cases, that shouldn’t pose a challenge for successful migration.

Examples

Create a table with explicitly set statistics options.

CREATE TABLE MyTable
(
    Col1 INT NOT NULL AUTO_INCREMENT,
    Col2 VARCHAR(255),
    DateCol DATETIME,
    PRIMARY KEY (Col1),
    INDEX IDX_DATE (DateCol)
) ENGINE=InnoDB,
STATS_PERSISTENT=1,
STATS_AUTO_RECALC=1,
STATS_SAMPLE_PAGES=25;

Refresh all statistics for MyTable1 and MyTable2.

ANALYZE TABLE MyTable1, MyTable2;

Change MyTable to use non persistent statistics.

ALTER TABLE MyTable STATS_PERSISTENT=0;

Summary

The following table identifies similarities, differences, and key migration considerations.

Feature SQL Server Aurora MySQL Comments

Column statistics

CREATE STATISTICS

N/A

Index statistics

Implicit with every index

Implicit with every index

Statistics are maintained automatically for every table index.

Refresh / update statistics

UPDATE STATISTICS

EXECUTE sp_updatestats

ANALYZE TABLE

Minimal scope in Aurora MySQL is the entire table. No control over individual statistics.

Auto create statistics

AUTO_CREATE_STATISTICS database option

N/A

Auto update statistics

AUTO_UPDATE_STATISTICS database option

STATS_AUTO_RECALC table option

Statistics sampling

Use the SAMPLE option of CREATE and UPDATE STATISTICS

STATS_SAMPLE_PAGES table option

Can only use page number, not percentage for STATS_SAMPLE_PAGES.

Full scan refresh

Use the FULLSCAN option of CREATE and UPDATE STATISTICS

N/A

Using a very large STATS_SAMPLE_PAGES may serve the same purpose.

Non-persistent statistics

N/A

Use STATS_PERSISTENT=0 table option

For more information, see The INFORMATION_SCHEMA STATISTICS Table Configuring Persistent Optimizer Statistics Parameters, Configuring Optimizer Statistics for InnoDB, and Configuring Optimizer Statistics for InnoDB in the MySQL documentation.
