Use the Flink UI to monitor Flink jobs

To monitor the health and performance of a running Flink application, use the Flink Web Dashboard. This dashboard provides information about the status of the job, the number of TaskManagers, and the metrics and logs for the job. It also lets you view and modify the configuration of the Flink job, and to interact with the Flink cluster to submit or cancel jobs.

To access the Flink Web Dashboard for a running Flink application on Kubernetes:

  1. Use the kubectl port-forward command to forward a local port to the port on which the Flink Web Dashboard is running in the Flink application's TaskManager pods. By default, this port is 8081. Replace deployment-name with the name of the Flink application deployment from above.

    kubectl get deployments -n namespace

    Example output:

    kubectl get deployments -n flink-namespace
    NAME                        READY   UP-TO-DATE   AVAILABLE  AGE
    basic-example               1/1       1            1           11m
    flink-kubernetes-operator   1/1       1            1           21h
    kubectl port-forward deployments/deployment-name 8081 -n namespace
  2. If you want to use a different port locally, use the local-port:8081 parameter.

    kubectl port-forward -n flink deployments/basic-example 8080:8081
  3. In a web browser, navigate to http://localhost:8081 (or http://localhost:local-port if you used a custom local port) to access the Flink Web Dashboard. This dashboard shows information about the running Flink application, such as the status of the job, the number of TaskManagers, and the metrics and logs for the job.

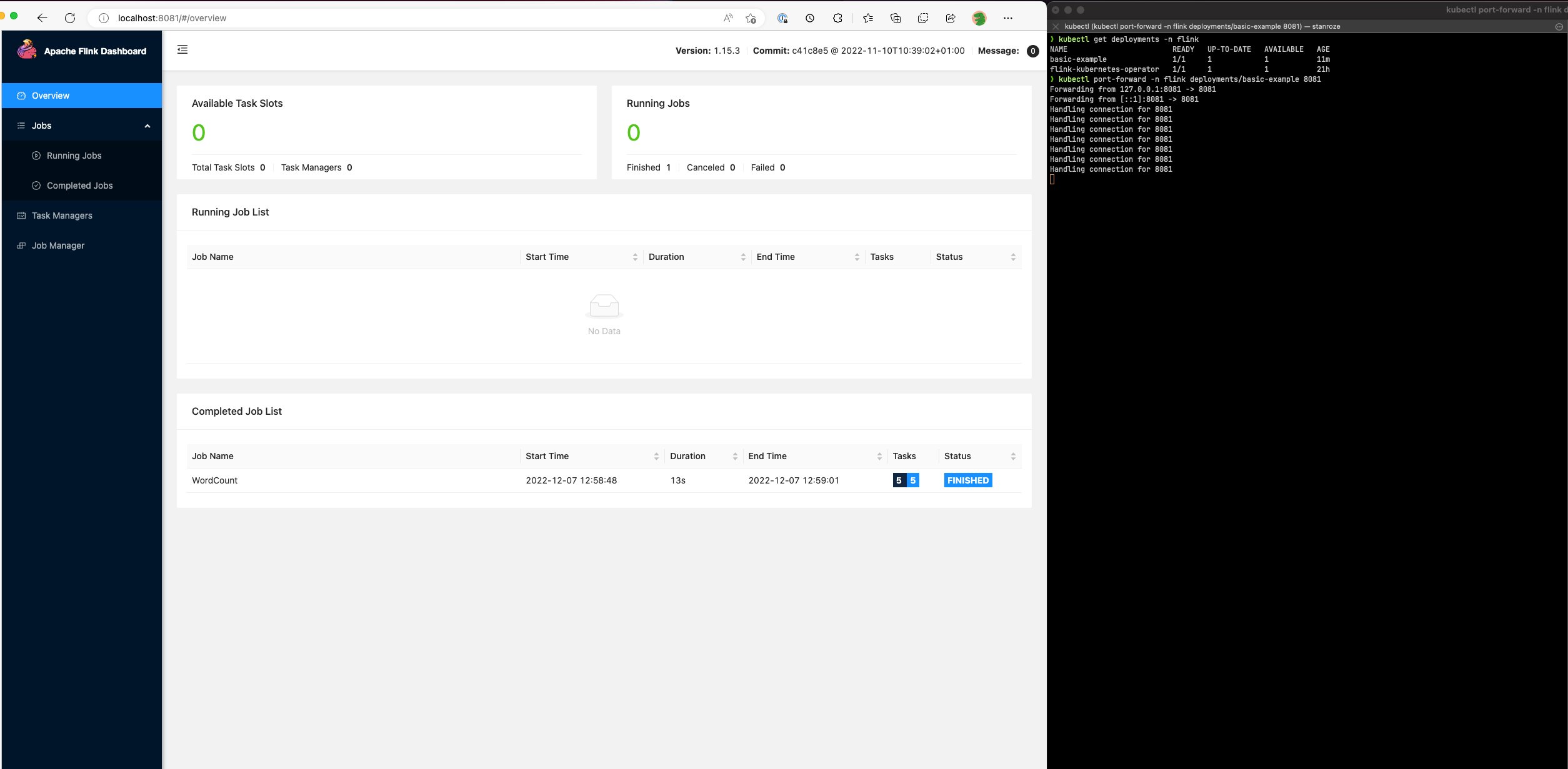

    Sample Flink Dashboard UI
