Create dashboards in an Amazon IoT SiteWise Monitor project - Amazon IoT SiteWise Monitor
Services or capabilities described in Amazon Web Services documentation might vary by Region. To see the differences applicable to the China Regions, see Getting Started with Amazon Web Services in China (PDF).

Create dashboards in an Amazon IoT SiteWise Monitor project

As a project owner, you create dashboards in Amazon IoT SiteWise Monitor to provide a shared view of asset properties and alarms to your project viewers. You can create a dashboard from the Dashboards page or while viewing a project's details.

To create a dashboard from the dashboards page

  1. In the navigation bar, choose the Dashboards icon.

    The "Dashboards" icon in the navigation bar.

  2. On the Dashboards page, choose Create dashboard.

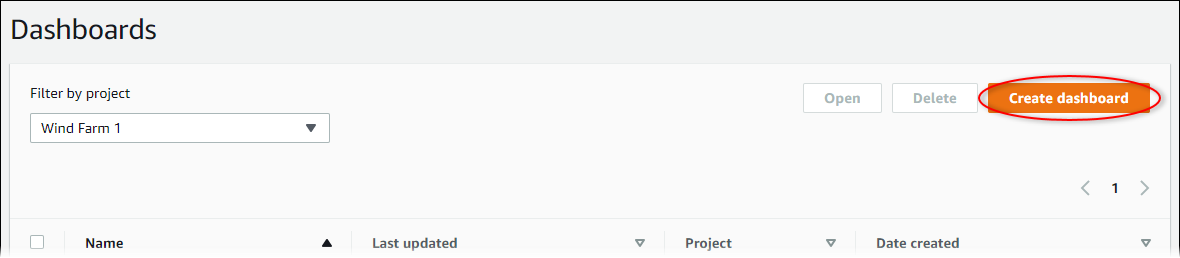

    The dashboards list with "Create dashboard" highlighted.

  3. In the dashboard editor, change the dashboard name from the default, New dashboard, to something that describes the content.

    The dashboard editor with "New Dashboard" highlighted.

  4. After you finish editing the dashboard, choose Save dashboard to save your changes. The dashboard editor closes. If you try to close a dashboard that has unsaved changes, you're prompted to save them.

To create a dashboard while viewing a project's details

  1. In the navigation bar, choose the Projects icon.

    The "Projects" icon in the navigation bar.

  2. On the Projects page, choose the project in which you want to create a dashboard.

    The "Projects" page with "Wind Farm 3" highlighted.

  3. In the Dashboards section, choose Create dashboard.

    The dashboards list on the project details page with "Create dashboard" highlighted.

  4. In the dashboard editor, change the dashboard name from the default, New dashboard, to something that describes the content.

    The dashboard editor with "New Dashboard" highlighted.

  5. After you finish editing the dashboard, choose Save dashboard to save your changes. The dashboard editor closes. If you try to close a dashboard that has unsaved changes, you're prompted to save them.
