Debugging CloudWatch synthetics canaries using X-Ray

CloudWatch Synthetics is a fully managed service that enables you to monitor your endpoints and APIs using scripted canaries that run 24 hours per day, once per minute.

You can customize canary scripts to check for changes in:

  • Availability

  • Latency

  • Transactions

  • Broken or dead links

  • Step-by-step task completions

  • Page load errors

  • Load Latencies for UI assets

  • Complex wizard flows

  • Checkout flows in your application

Canaries follow the same routes and perform the same actions and behaviors as your customers, and continually verify the customer experience.

To learn more about setting up Synthetics tests, see Using Synthetics to Create and Manage Canaries.

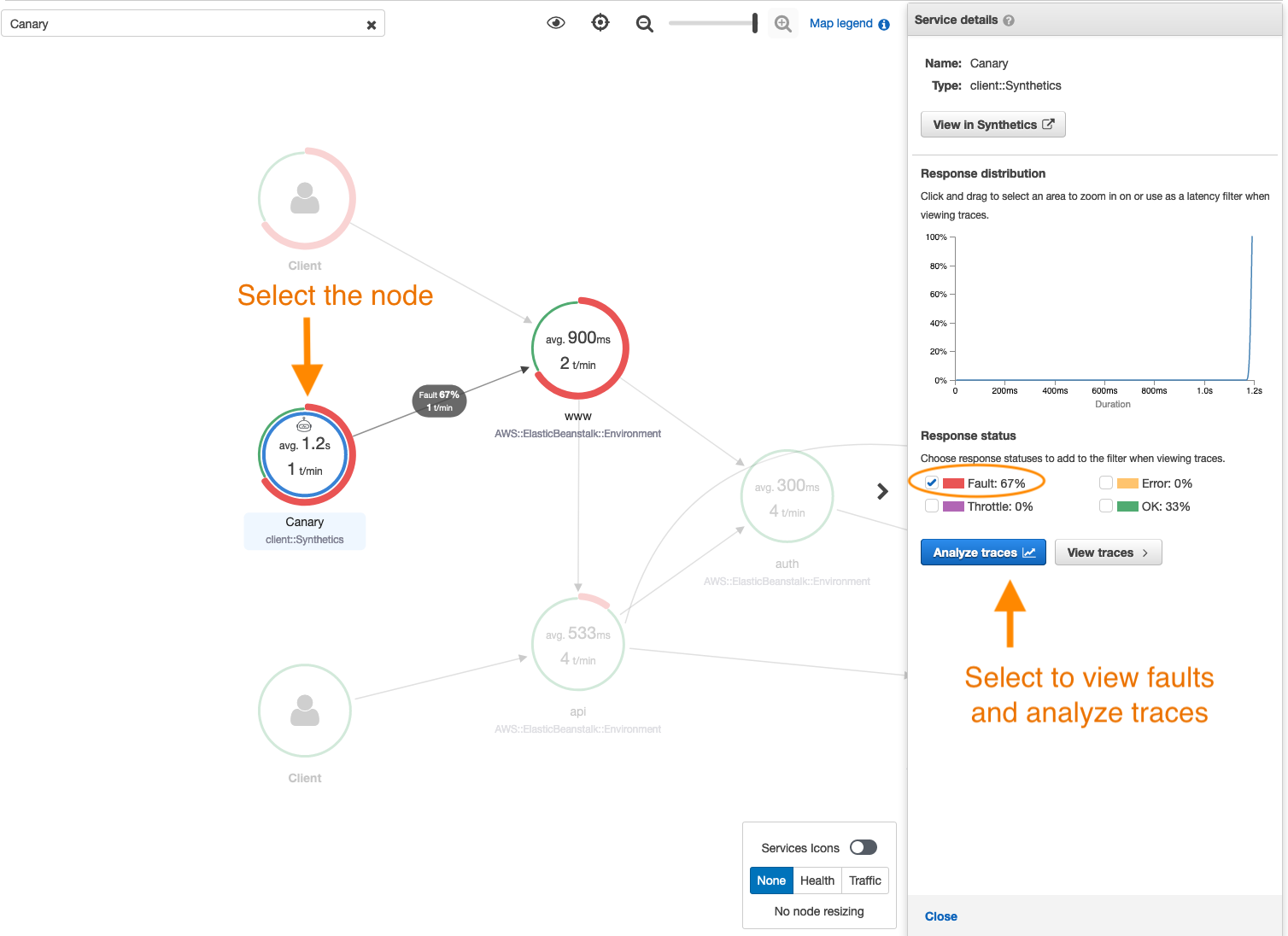

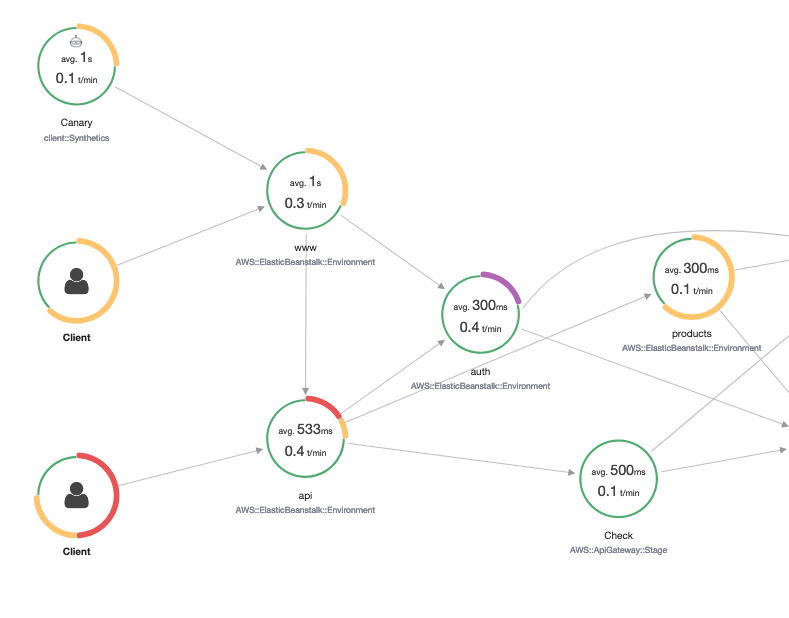

Example canary node in x-ray trace map.

The following examples show common use cases for debugging issues that your Synthetics canaries raise. Each example demonstrates a key strategy for debugging using either the trace map or the X-Ray Analytics console.

For more information about how to read and interact with the trace map, see Viewing the Service Map.

For more information about how to read and interact with the X-Ray Analytics console, see Interacting with the Amazon X-Ray Analytics Console.

View canaries with increased error reporting in the trace map

To see which canaries have an increase in errors, faults, throttling rates, or slow response times within your X-Ray trace map, you can highlight Synthetics canary client nodes using the Client::Synthetic filter. For more information, see Use filter expressions. Selecting a node displays the response time distribution of the entire request. Selecting an edge between two nodes shows details about the requests that traveled that connection. You can also view "remote" inferred nodes for related downstream services in your trace map.

When you select the Synthetics node, there is a View in Synthetics button on side panel which redirects you to the Synthetics console where you can check the canary details.

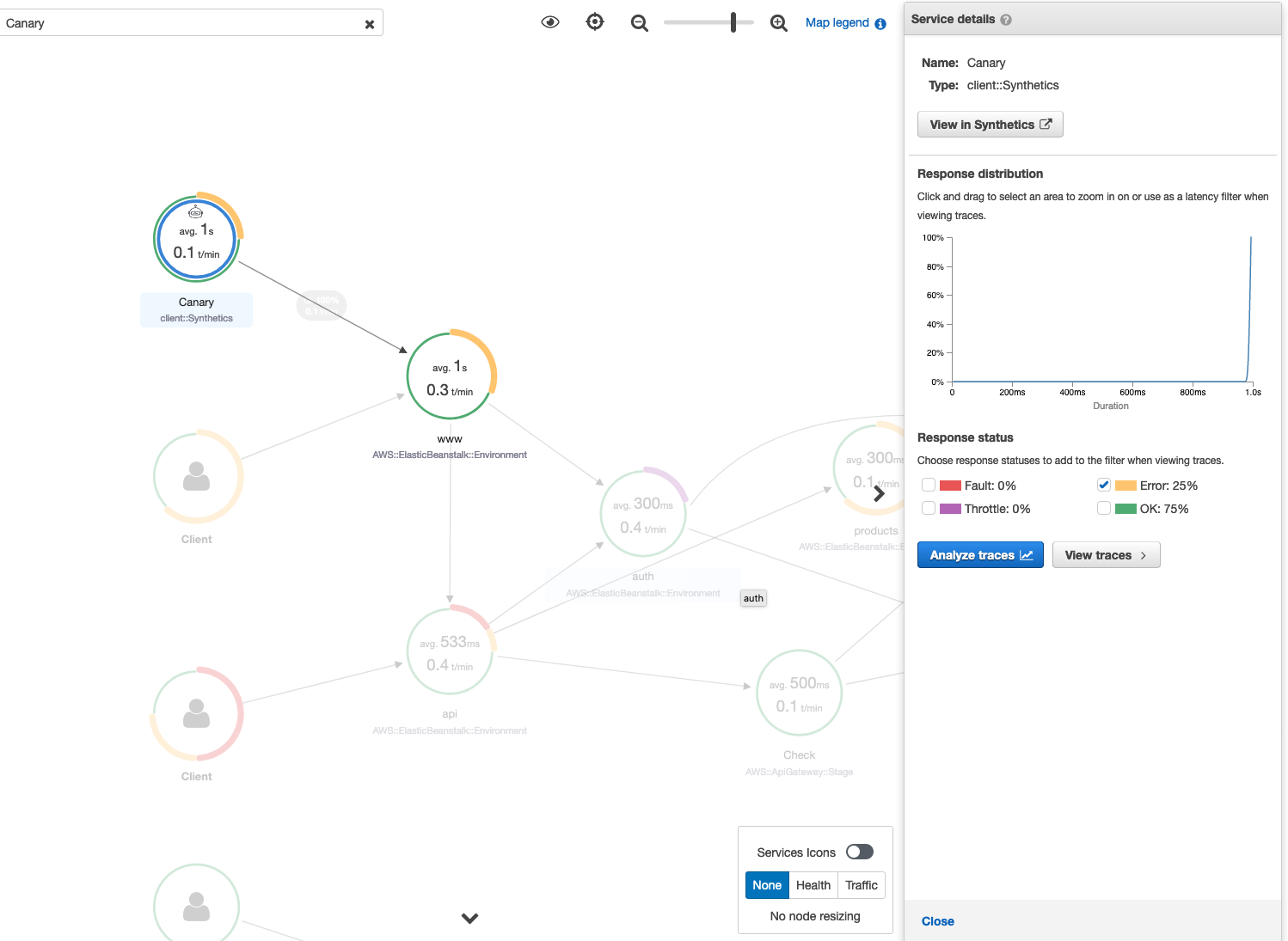

Example canary node in x-ray trace map with service details.

Use trace details maps for individual traces to view each request in detail

To determine which service results in the most latency or is causing an error, invoke the trace details map by selecting the trace in the trace map. Individual trace details maps display the end-to-end path of a single request. Use this to understand the services invoked, and visualize the upstream and downstream services.

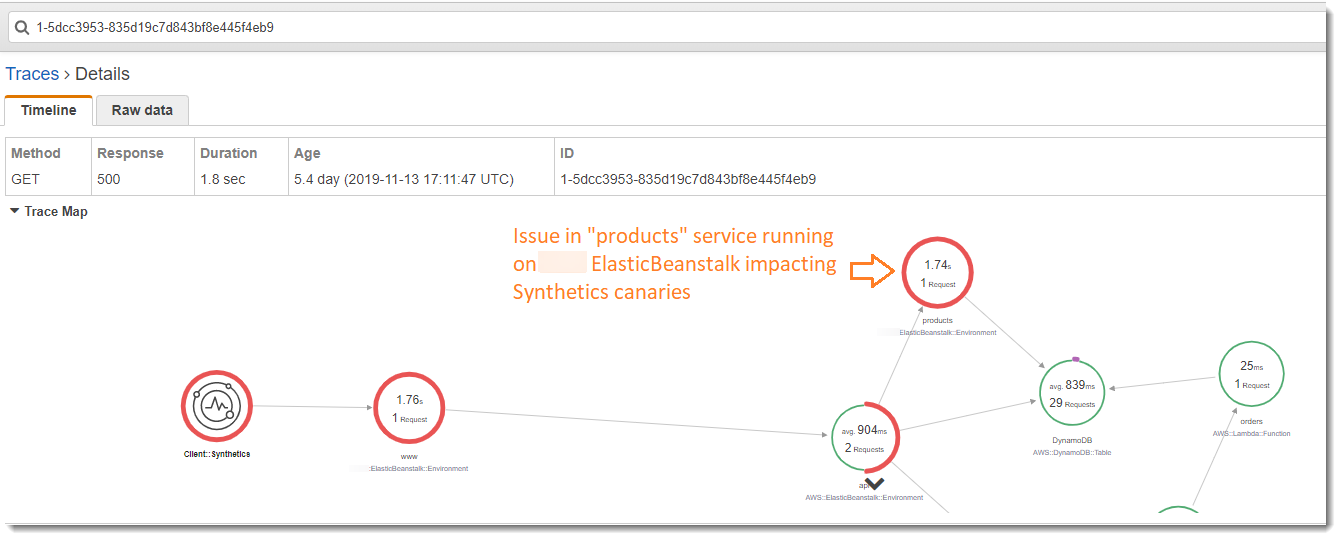

Example canary node in x-ray trace details map.

Determine the root cause of ongoing failures in upstream and downstream services

Once you receive a CloudWatch alarm for failures in a Synthetics canary, use the statistical modeling on trace data in X-Ray to determine the probable root cause of the issue within the X-Ray Analytics console. In the Analytics console, the Response Time Root Cause table shows recorded entity paths. X-Ray determines which path in your trace is the most likely cause for the response time. The format indicates a hierarchy of entities that are encountered, ending in a response time root cause.

The following example shows that the Synthetics test for API “XXX” running on API Gateway is failing due to a throughput capacity exception from the Amazon DynamoDB table.

Example canary node in x-ray trace map.

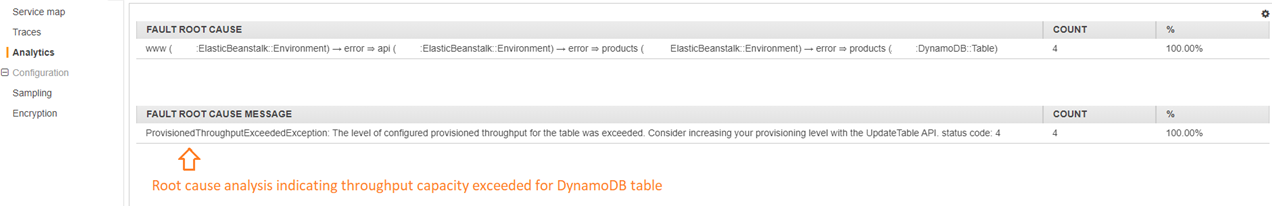

Example canary node root cause.

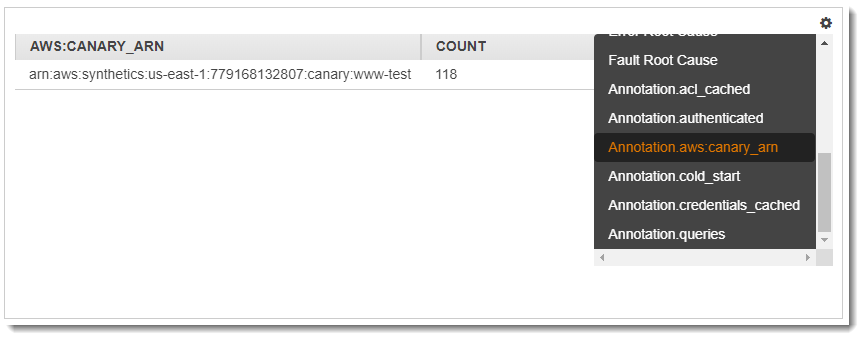

Example annotation filter indicating the canary node.

Identify performance bottlenecks and trends

You can view trends in the performance of your endpoint over time using continuous traffic from your Synthetics canaries to populate a trace details map over a period of time.

Example annotation filter indicating the canary node.

Compare latency and error or fault rates before and after changes

Pinpoint the time a change occurred to correlate that change to an increase in issues caught by your canaries. Use the X-Ray Analytics console to define the before and after time ranges as different trace sets, creating a visual differentiation in the response time distribution.

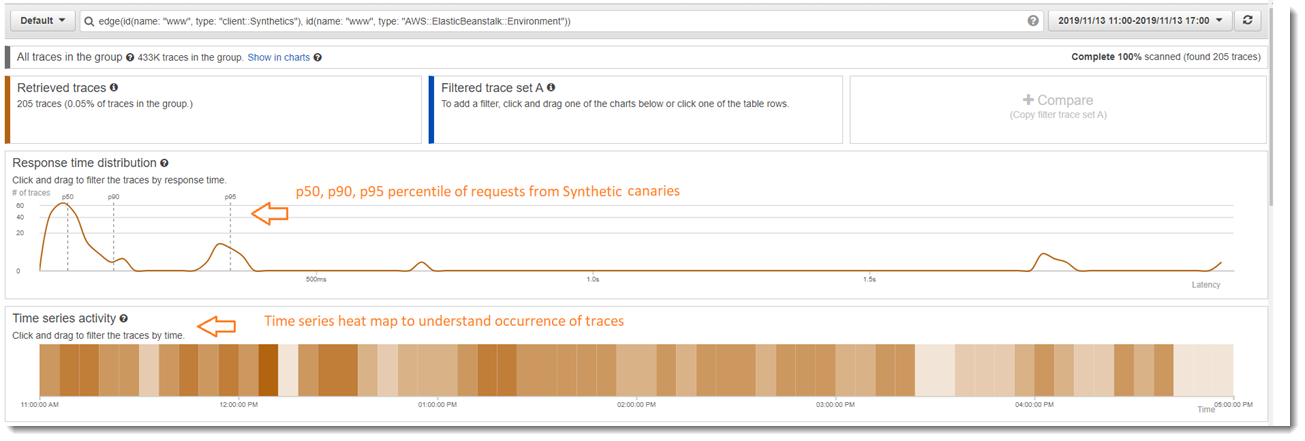

Example annotation filter indicating the canary node.

Determine the required canary coverage for all APIs and URLs

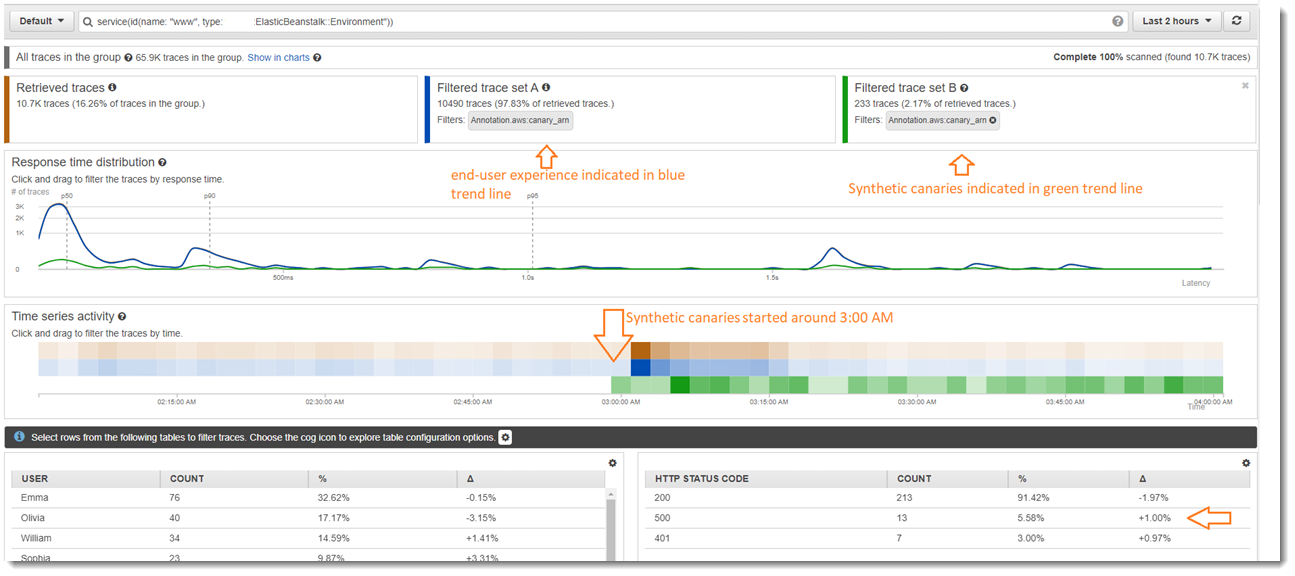

Use X-Ray Analytics to compare the experience of canaries with the users. The UI below shows a blue trend line for canaries and a green line for the users. You can also identify that two out of the three URLs don’t have canary tests.

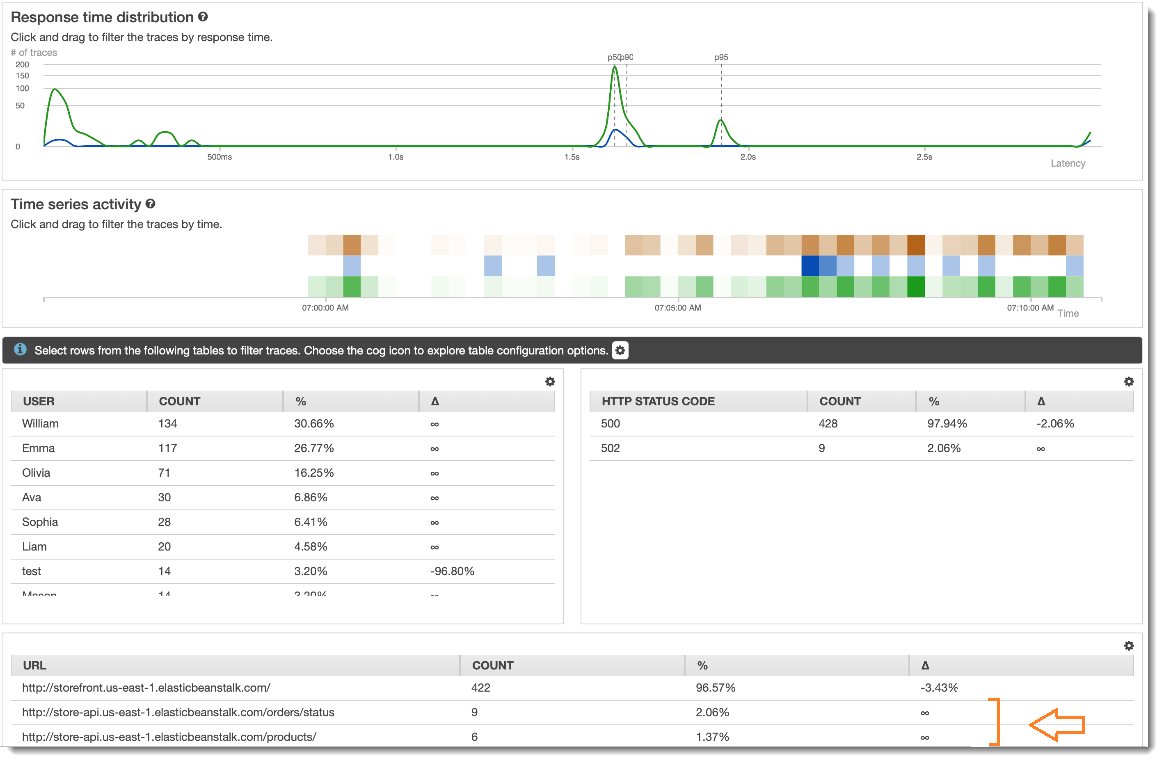

Example annotation filter indicating the canary node.

Use groups to focus on synthetics tests

You can create an X-Ray group using a filter expression to focus on a certain set of workflows, such as a Synthetics tests for application “www” running on Amazon Elastic Beanstalk. Use the complex keywords service() and edge(), to filter through services and edges. For more information, see the Complex keywords section in Use filter expressions.

Example Group filter expression
"edge(id(name: "www", type: "client::Synthetics"), id(name: "www", type: "AWS::ElasticBeanstalk::Environment"))"

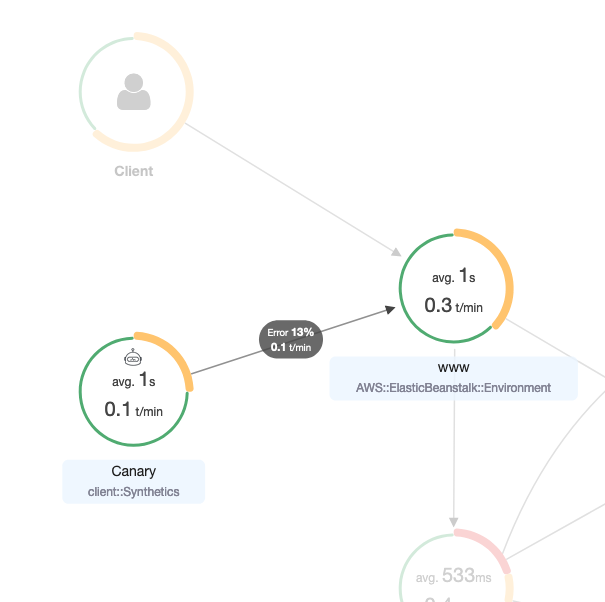

Example nodes for Elastic Beanstalk www.
