Using DynamoDB as a data store for an online shop

This use case talks about using DynamoDB as a data store for an online shop (or e-store).

Use case

An online store lets users browse through different products and eventually purchase them. Based on the generated invoice, a customer can pay using a discount code or gift card and then pay the remaining amount with a credit card. Purchased products will be picked from one of several warehouses and will be shipped to the provided address. Typical access patterns for an online store include:

Entity relationship diagram

This is the entity relationship diagram (ERD) we'll be using to model DynamoDB as a data store for an online shop.

Access patterns

These are the access patterns we'll be considering when using DynamoDB as a data store for an online shop.

Schema design evolution

Using NoSQL Workbench for DynamoDB , import AnOnlineShop_1.json to create a new data model called AnOnlineShop and a new table called OnlineShop. Note that we use the generic names PK and SK for the partition key and sort key. This is a practice used in order to store different types of entities in the same table.

Step 1: Address access pattern 1 (getCustomerByCustomerId)

Import AnOnlineShop_2.json to handle access pattern 1 (getCustomerByCustomerId). Some entities do not have relationships to other entities, so we will use the same value of PK and SK for them. In the example data, note that the keys use a prefix c# in order to distinguish the customerId from other entities that will be added later. This practice is repeated for other entities as well.

To address this access pattern, a GetItem operation can be used with PK=customerId and SK=customerId.

Step 2: Address access pattern 2 (getProductByProductId)

Import AnOnlineShop_3.json to address access pattern 2 (getProductByProductId) for the product entity. The product entities are prefixed by p# and the same sort key attribute has been used to store customerID as well as productID. Generic naming and vertical partitioning allows us to create such item collections for an effective single table design.

To address this access pattern, a GetItem operation can be used with PK=productId and SK=productId.

Step 3: Address access pattern 3 (getWarehouseByWarehouseId)

Import AnOnlineShop_4.json to address access pattern 3 (getWarehouseByWarehouseId) for the warehouse entity. We currently have the customer, product, and warehouse entities added to the same table. They are distinguished using prefixes and the EntityType attribute. A type attribute (or prefix naming) improves the model’s readability. The readability would be affected if we simply stored alphanumeric IDs for different entities in the same attribute. It would be difficult to tell one entity from the other in the absence of these identifiers.

To address this access pattern, a GetItem operation can be used with PK=warehouseId and SK=warehouseId.

Base table:

Step 4: Address access pattern 4 (getProductInventoryByProductId)

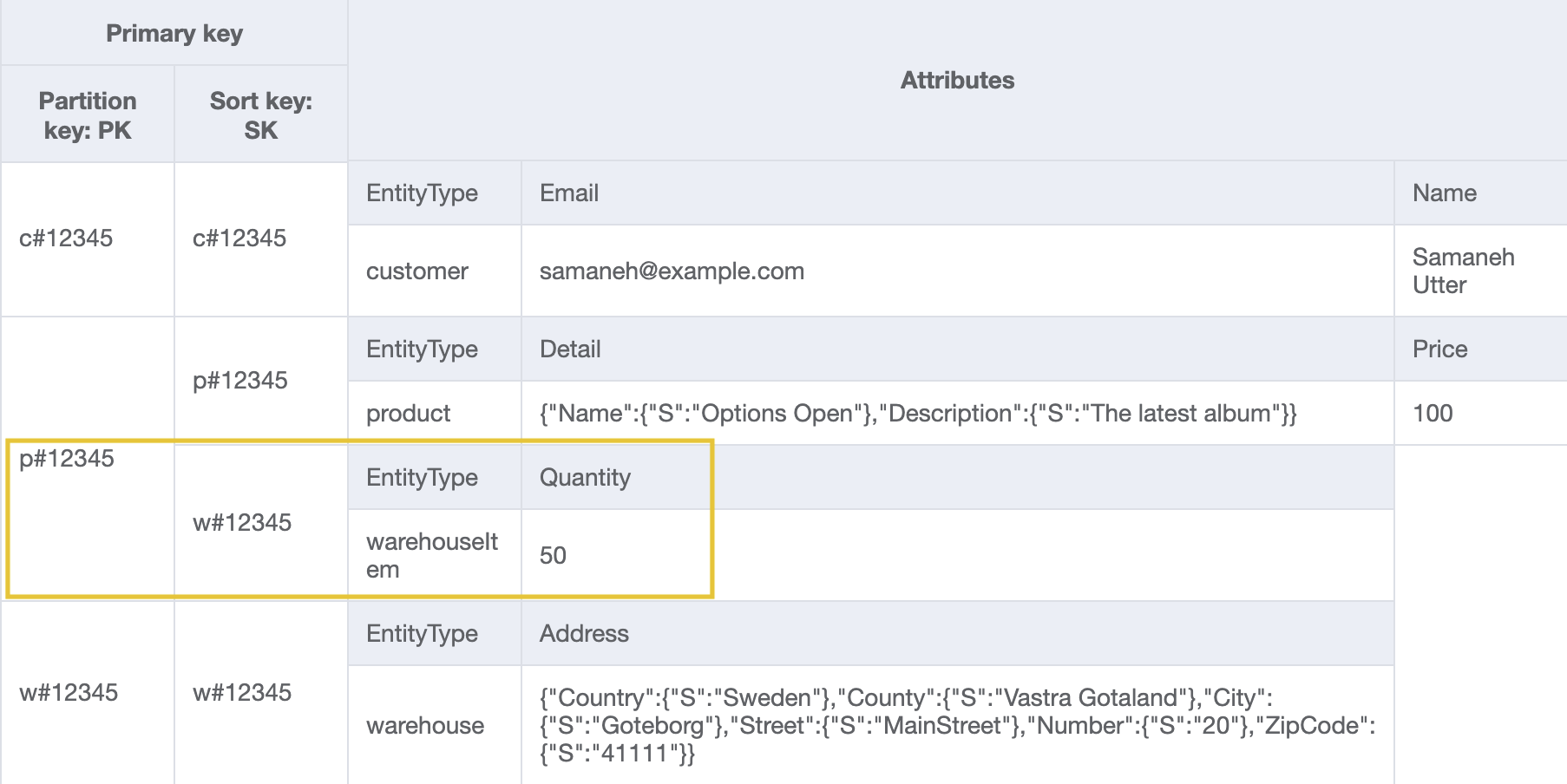

Import AnOnlineShop_5.json to address access pattern 4 (getProductInventoryByProductId). warehouseItem entity is used to keep track of the number of products in each warehouse. This item would normally be updated when a product is added or removed from a warehouse. As seen in the ERD, there is a many-to-many relationship between product and warehouse. Here, the one-to-many relationship from product to warehouse is modeled as warehouseItem. Later on, the one-to-many relationship from warehouse to product will be modeled as well.

Access pattern 4 can be addressed with a query on PK=ProductId and SK begins_with “w#“.

For more information about begins_with() and other expressions that can be applied to sort keys, see Key Condition Expressions.

Base table:

Step 5: Address access patterns 5 (getOrderDetailsByOrderId) and 6 (getProductByOrderId)

Add some more customer, product, and warehouse items to the table by importing AnOnlineShop_6.json. Then, import AnOnlineShop_7.json to build an item collection for order that can address access patterns 5 (getOrderDetailsByOrderId) and 6 (getProductByOrderId). You can see the one-to-many relationship between order and product modeled as orderItem entities.

To address access pattern 5 (getOrderDetailsByOrderId), query the table with PK=orderId. This will provide all information about the order including customerId and ordered products.

Base table:

To address access pattern 6 (getProductByOrderId), we need to read products in an order only. Query the table with PK=orderId and SK begins_with “p#” to accomplish this.

Base table:

Step 6: Address access pattern 7 (getInvoiceByOrderId)

Import AnOnlineShop_8.json to add an invoice entity to the order item collection to handle access pattern 7 (getInvoiceByOrderId). To address this access pattern, you can use a query operation with PK=orderId and SK begins_with “i#”.

Base table:

Step 7: Address access pattern 8 (getShipmentByOrderId)

Import AnOnlineShop_9.json to add shipment entities to the order item collection to address access pattern 8 (getShipmentByOrderId). We are extending the same vertically partitioned model by adding more types of entities in the single table design. Notice how the order item collection contains the different relationships that an order entity has with the shipment, orderItem, and invoice entities.

To get shipments by orderId, you can perform a query operation with PK=orderId and SK begins_with “sh#”.

Base table:

Step 8: Address access pattern 9 (getOrderByProductIdForDateRange)

We created an order item collection in the previous step. This access pattern has new lookup dimensions (ProductID and Date) which requires you to scan the whole table and filter out relevant records to fetch targeted items. In order to address this access pattern, we'll need to create a global secondary index (GSI). Import AnOnlineShop_10.json to create a new item collection using the GSI that makes it possible to retrieve orderItem data from several order item collections. The data now has GSI1-PK and GSI1-SK which will be GSI1’s partition key and sort key, respectively.

DynamoDB automatically populates items which contain a GSI’s key attributes from the table to the GSI. There is no need to manually do any additional inserts into the GSI.

To address access pattern 9, perform a query on GSI1 with GSI1-PK=productId and GSI1SK between (date1, date2).

Base table:

GSI1:

Step 9: Address access patterns 10 (getInvoiceByInvoiceId) and 11 (getPaymentByInvoiceId)

Import AnOnlineShop_11.json to address access patterns 10 (getInvoiceByInvoiceId) and 11 (getPaymentByInvoiceId), both of which are related to invoice. Even though these are two different access patterns, they are realized using the same key condition. Payments are defined as an attribute with the map data type on the invoice entity.

To address access pattern 10 and 11, query GSI1 with GSI1-PK=invoiceId and GSI1-SK=invoiceId.

GSI1:

Step 10: Address access patterns 12 (getShipmentDetailsByShipmentId) and 13 (getShipmentByWarehouseId)

Import AnOnlineShop_12.json to address access patterns 12 (getShipmentDetailsByShipmentId) and 13 (getShipmentByWarehouseId).

Notice that shipmentItem entities are added to the order item collection on the base table in order to be able to retrieve all details about an order in a single query operation.

Base table:

The GSI1 partition and sort keys have already been used to model a one-to-many relationship between shipment and shipmentItem. To address access pattern 12 (getShipmentDetailsByShipmentId), query GSI1 with GSI1-PK=shipmentId and GSI1-SK=shipmentId.

GSI1:

We’ll need to create another GSI (GSI2) to model the new one-to-many relationship between warehouse and shipment for access pattern 13 (getShipmentByWarehouseId). To address this access pattern, query GSI2 with GSI2-PK=warehouseId and GSI2-SK begins_with “sh#”.

GSI2:

Step 11: Address access patterns 14 (getProductInventoryByWarehouseId) 15 (getInvoiceByCustomerIdForDateRange), and 16 (getProductsByCustomerIdForDateRange)

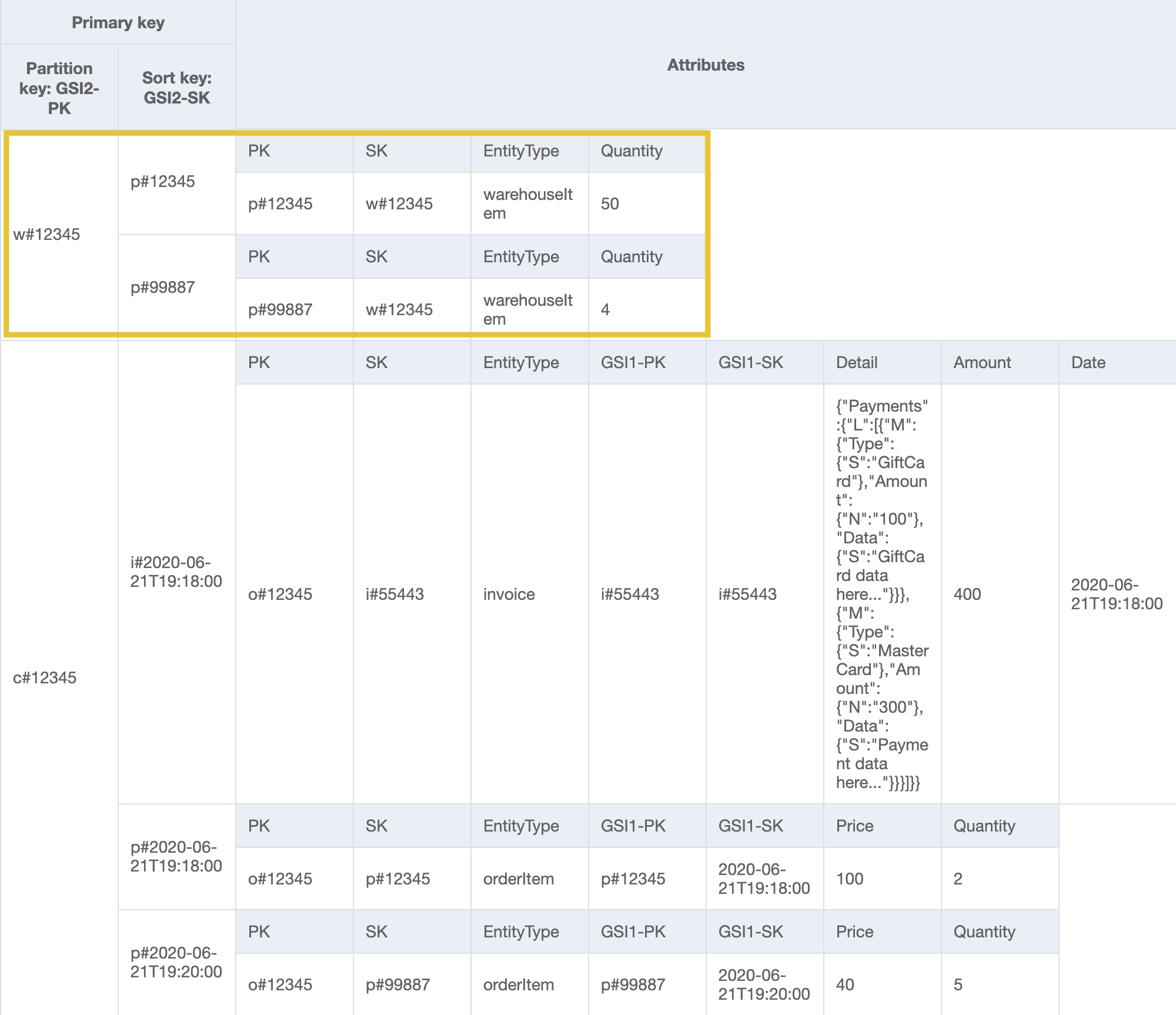

Import AnOnlineShop_13.json to add data related to the next set of access patterns. To address access pattern 14 (getProductInventoryByWarehouseId), query GSI2 with GSI2-PK=warehouseId and GSI2-SK begins_with “p#”.

GSI2:

To address access pattern 15 (getInvoiceByCustomerIdForDateRange), query GSI2 with GSI2-PK=customerId and GSI2-SK between (i#date1, i#date2).

GSI2:

To address access pattern 16 (getProductsByCustomerIdForDateRange), query GSI2 with GSI2-PK=customerId and GSI2-SK between (p#date1, p#date2).

GSI2:

All access patterns and how the schema design addresses them are summarized in the table below:

Online shop final schema

Here are the final schema designs. To download this schema design as a JSON file, see DynamoDB Design Patterns on GitHub.

Base table

GSI1

GSI2

Using NoSQL Workbench with this schema design

You can import this final schema into NoSQL Workbench, a visual tool that provides data modeling, data visualization, and query development features for DynamoDB, to further explore and edit your new project. Follow these steps to get started:
