Deploying a rails application to Elastic Beanstalk
Rails is an open source, model-view-controller (MVC) framework for Ruby. This tutorial walks you through the process of generating a Rails application and deploying it to an Amazon Elastic Beanstalk environment.
Sections
Prerequisites
This tutorial assumes you have knowledge of the basic Elastic Beanstalk operations and the Elastic Beanstalk console. If you haven't already, follow the instructions in Getting started with Elastic Beanstalk to launch your first Elastic Beanstalk environment.
To follow the procedures in this guide, you will need a command line terminal or shell to run commands. Commands are shown in listings preceded by a prompt symbol ($) and the name of the current directory, when appropriate.
~/eb-project$ this is a command
this is output
On Linux and macOS, you can use your preferred shell and package manager. On Windows you can install the Windows Subsystem for Linux
The Rails framework 6.1.4.1 has the following dependencies. Be sure you have all of them installed.
-
Ruby 2.5.0 or newer – For installation instructions, see Setting up your Ruby development environment for Elastic Beanstalk.
In this tutorial we use Ruby 3.0.2 and the corresponding Elastic Beanstalk platform version.
-
Node.js – For installation instructions, see Installing Node.js via package manager
. -
Yarn – For installation instructions, see Installation
on the Yarn website.
Launch an Elastic Beanstalk environment
Use the Elastic Beanstalk console to create an Elastic Beanstalk environment. Choose the Ruby platform and accept the default settings and sample code.
To launch an environment (console)
-
Open the Elastic Beanstalk console using this preconfigured link: console.amazonaws.cn/elasticbeanstalk/home#/newApplication?applicationName=tutorials&environmentType=LoadBalanced
-
For Platform, select the platform and platform branch that match the language used by your application.
-
For Application code, choose Sample application.
-
Choose Review and launch.
-
Review the available options. Choose the available option you want to use, and when you're ready, choose Create app.
Environment creation takes about 5 minutes and creates the following resources:
-
EC2 instance – An Amazon Elastic Compute Cloud (Amazon EC2) virtual machine configured to run web apps on the platform that you choose.
Each platform runs a specific set of software, configuration files, and scripts to support a specific language version, framework, web container, or combination of these. Most platforms use either Apache or NGINX as a reverse proxy that sits in front of your web app, forwards requests to it, serves static assets, and generates access and error logs.
-
Instance security group – An Amazon EC2 security group configured to allow inbound traffic on port 80. This resource lets HTTP traffic from the load balancer reach the EC2 instance running your web app. By default, traffic isn't allowed on other ports.
-
Load balancer – An Elastic Load Balancing load balancer configured to distribute requests to the instances running your application. A load balancer also eliminates the need to expose your instances directly to the internet.
-
Load balancer security group – An Amazon EC2 security group configured to allow inbound traffic on port 80. This resource lets HTTP traffic from the internet reach the load balancer. By default, traffic isn't allowed on other ports.
-
Auto Scaling group – An Auto Scaling group configured to replace an instance if it is terminated or becomes unavailable.
-
Amazon S3 bucket – A storage location for your source code, logs, and other artifacts that are created when you use Elastic Beanstalk.
-
Amazon CloudWatch alarms – Two CloudWatch alarms that monitor the load on the instances in your environment and that are triggered if the load is too high or too low. When an alarm is triggered, your Auto Scaling group scales up or down in response.
-
Amazon CloudFormation stack – Elastic Beanstalk uses Amazon CloudFormation to launch the resources in your environment and propagate configuration changes. The resources are defined in a template that you can view in the Amazon CloudFormation console
. -
Domain name – A domain name that routes to your web app in the form
subdomain
.region
.elasticbeanstalk.com.Note
To augment the security of your Elastic Beanstalk applications, the eb.amazonaws.com.cn domain is registered in the Public Suffix List (PSL)
. For further security, we recommend that you use cookies with a __Host-
prefix if you ever need to set sensitive cookies in the default domain name for your Elastic Beanstalk applications. This practice will help to defend your domain against cross-site request forgery attempts (CSRF). For more information see the Set-Cookiepage in the Mozilla Developer Network.
All of these resources are managed by Elastic Beanstalk. When you terminate your environment, Elastic Beanstalk terminates all the resources that it contains.
Note
The Amazon S3 bucket that Elastic Beanstalk creates is shared between environments and is not deleted during environment termination. For more information, see Using Elastic Beanstalk with Amazon S3.
Install rails and generate a website
Install Rails and its dependencies with the gem
command.
~$ gem install rails
Fetching: concurrent-ruby-1.1.9.gem
Successfully installed concurrent-ruby-1.1.9
Fetching: rack-2.2.3.gem
Successfully installed rack-2.2.3
...
Test your Rails installation.
~$ rails --version
Rails 6.1.4.1
Use rails new
with the name of the application to create a new Rails project.
~$ rails new ~/eb-rails
Rails creates a directory with the name specified, generates all of the files needed to run a sample project locally, and then runs bundler to install all of the dependencies (Gems) defined in the project's Gemfile.
Note
This process installs the latest Puma version for the project. This version might be different from the version that Elastic Beanstalk provides on the Ruby
platform version of your environment. To see the Puma versions provided by Elastic Beanstalk, see Ruby Platform History in the Amazon Elastic Beanstalk Platforms guide. For more
information about the latest Puma version, see the Puma.io
Use the Puma version installed by the prior
rails new
command. In this case you must add aProcfile
for the platform to use your own provided Puma server version. For more information, see Configuring the application process with a Procfile on Elastic Beanstalk..Update the Puma version to be consistent with the version pre-installed on your environment’s Ruby platform version. To do so, modify the Puma version in the Gemfile located in the root of your project source directory. Then run
bundle update
. For more information see the bundle updatepage on the Bundler.io website.
Test your Rails installation by running the default project locally.
~$ cd eb-rails
~/eb-rails$ rails server
=> Booting Puma
=> Rails 6.1.4.1 application starting in development
=> Run `bin/rails server --help` for more startup options
Puma starting in single mode...
* Puma version: 5.5.2 (ruby 3.0.2-p107) ("Zawgyi")
* Min threads: 5
* Max threads: 5
* Environment: development
* PID: 77857
* Listening on http://127.0.0.1:3000
* Listening on http://[::1]:3000
Use Ctrl-C to stop
...
Open http://localhost:3000
in a web browser to see the default project in action.

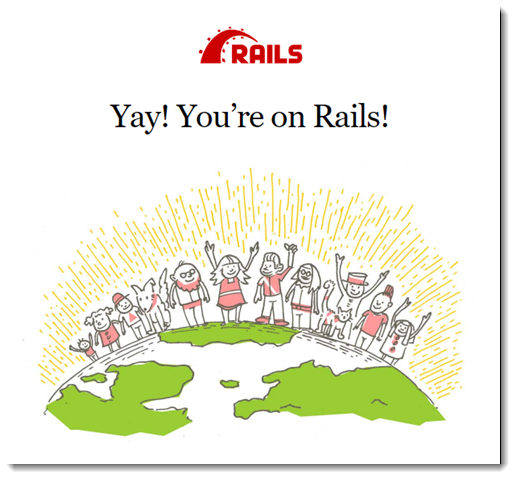

![The default rails site development page.](images/ruby-rails-default.png)
This page is only visible in development mode. Add some content to the front page of the application to support production deployment to Elastic Beanstalk. Use
rails generate
to create a controller, route, and view for your welcome page.
~/eb-rails$ rails generate controller WelcomePage welcome
create app/controllers/welcome_page_controller.rb
route get 'welcome_page/welcome'
invoke erb
create app/views/welcome_page
create app/views/welcome_page/welcome.html.erb
invoke test_unit
create test/controllers/welcome_page_controller_test.rb
invoke helper
create app/helpers/welcome_page_helper.rb
invoke test_unit
invoke assets
invoke coffee
create app/assets/javascripts/welcome_page.coffee
invoke scss
create app/assets/stylesheets/welcome_page.scss.
This gives you all you need to access the page at /welcome_page/welcome
. Before you publish the changes, however, change the content in
the view and add a route to make this page appear at the top level of the site.
Use a text editor to edit the content in app/views/welcome_page/welcome.html.erb
. For this example, you'll use cat
to simply overwrite the content of the existing file.
Example app/views/welcome_page/welcome.html.erb
<h1>Welcome!</h1>
<p>This is the front page of my first Rails application on Elastic Beanstalk.</p>
Finally, add the following route to config/routes.rb
:
Example config/routes.rb
Rails.application.routes.draw do
get 'welcome_page/welcome'
root 'welcome_page#welcome'
This tells Rails to route requests to the root of the website to the welcome page controller's welcome method, which renders the content in the
welcome view (welcome.html.erb
).
In order for Elastic Beanstalk to successfully deploy the application on the Ruby platform, we need to update Gemfile.lock
. Some dependencies
of Gemfile.lock
might be platform specific. Therefore, we need to add platform ruby
to
Gemfile.lock
so that all required dependencies are installed with the deployment.
~/eb-rails$ bundle lock --add-platform ruby
Fetching gem metadata from https://rubygems.org/............
Resolving dependencies...
Writing lockfile to /Users/janedoe/EBDPT/RubyApps/eb-rails-doc-app/Gemfile.lock
Configure rails settings
Use the Elastic Beanstalk console to configure Rails with environment properties. Set the SECRET_KEY_BASE
environment property to a string of up to
256 alphanumeric characters.
Rails uses this property to create keys. Therefore you should keep it a secret and not store it in source control in plain text. Instead, you provide it to Rails code on your environment through an environment property.
To configure environment properties in the Elastic Beanstalk console
Open the Elastic Beanstalk console
, and in the Regions list, select your Amazon Web Services Region. -
In the navigation pane, choose Environments, and then choose the name of your environment from the list.
Note
If you have many environments, use the search bar to filter the environment list.
In the navigation pane, choose Configuration.
-
In the Updates, monitoring, and logging configuration category, choose Edit.
-
Scroll down to Environment properties.
-
Select Add environment property.
-
Enter the property Name and Value pairs.
-
If you need to add more variables repeat Step 6 and Step 7.
-
To save the changes choose Apply at the bottom of the page.
Now you're ready to deploy the site to your environment.
Deploy your application
Create a source bundle containing the files created by Rails. The following command creates a source
bundle named rails-default.zip
.
~/eb-rails$ zip ../rails-default.zip -r * .[^.]*
Upload the source bundle to Elastic Beanstalk to deploy Rails to your environment.
To deploy a source bundle
Open the Elastic Beanstalk console
, and in the Regions list, select your Amazon Web Services Region. -
In the navigation pane, choose Environments, and then choose the name of your environment from the list.
Note
If you have many environments, use the search bar to filter the environment list.
-
On the environment overview page, choose Upload and deploy.
-
Use the on-screen dialog box to upload the source bundle.
-
Choose Deploy.
-
When the deployment completes, you can choose the site URL to open your website in a new tab.
Cleanup
When you finish working with Elastic Beanstalk, you can terminate your environment. Elastic Beanstalk terminates all Amazon resources associated with your environment, such as Amazon EC2 instances, database instances, load balancers, security groups, and alarms.
To terminate your Elastic Beanstalk environment from the console
Open the Elastic Beanstalk console
, and in the Regions list, select your Amazon Web Services Region. -
In the navigation pane, choose Environments, and then choose the name of your environment from the list.
Note
If you have many environments, use the search bar to filter the environment list.
-
Choose Actions, and then choose Terminate environment.
-
Use the on-screen dialog box to confirm environment termination.
With Elastic Beanstalk, you can easily create a new environment for your application at any time.
Next steps
For more information about Rails, visit rubyonrails.org
As you continue to develop your application, you'll probably want a way to manage environments and deploy your application without manually creating a .zip file and uploading it to the Elastic Beanstalk console. The Elastic Beanstalk Command Line Interface (EB CLI) provides easy-to-use commands for creating, configuring, and deploying applications to Elastic Beanstalk environments from the command line.
Finally, if you plan on using your application in a production environment, you will want to configure a custom domain name for your environment and enable HTTPS for secure connections.
